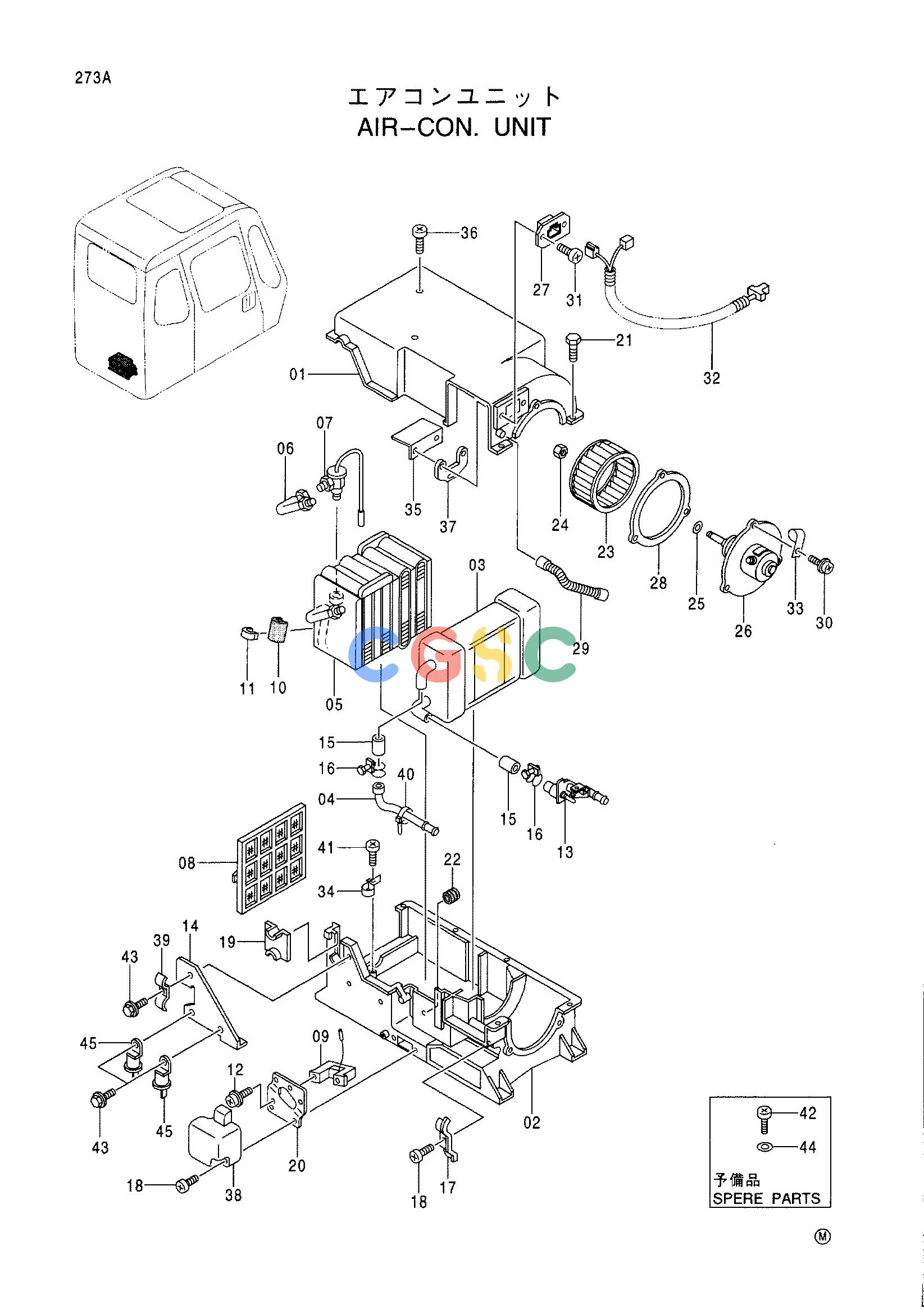

日立零件查询（CX1000）AIR-CON. UNIT Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
520 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 4333458 | [1] | AIR-CON.UNIT | |
| 01. | 4235886 | [1] | CASE | |
| 02. | 4302707 | [1] | CASE | |
| 03. | 4353526 | [1] | UNIT | |
| 04. | 4302706 | [1] | PIPE | |
| 05. | 4353527 | [1] | EVAPORATOR | |
| 06. | 4353528 | [1] | TUBE | |
| 07. | 4350271 | [1] | VALVE | |
| 08. | 4302703 | [1] | FILTER;AIR | |
| 09. | 4235893 | [1] | THERMOSTAT | |
| 10. | 4302702 | [1] | PACKING | |
| 11. | 4235894 | [1] | HOLDER | |
| 12. | 4236447 | [2] | SCREW;SEMS | |
| 13. | 4353529 | [1] | VALVE | |
| 14. | 4302700 | [1] | BRACKET | |
| 15. | 4235896 | [2] | HOSE;WATER | |
| 16. | 4235897 | [2] | CLAMP | |
| 17. | 4235898 | [1] | CLAMP | |
| 18. | 4236448 | [8] | SCREW | |
| 19. | 4302699 | [1] | PLATE | |
| 20. | 4302698 | [1] | BRACKET | |
| 21. | 4302697 | [8] | BOLT | |
| 22. | 4302696 | [1] | BUSHING | |
| 23. | 4235899 | [1] | FAN | |
| 24. | 4236450 | [1] | NUT | |
| 25. | 4236451 | [1] | WASHER | |
| 26. | 4302695 | [1] | MOTOR | |
| 27. | 4302694 | [1] | RESISTOR | |
| 28. | 4302693 | [1] | PACKING | |
| 29. | 4235902 | [1] | PIPE | |
| 30. | 4236452 | [3] | SCREW;SEMS | |
| 31. | 4302692 | [3] | SCREW | |
| 32. | 4302691 | [1] | WIRE | |
| 33. | 4302690 | [1] | CLAMP | |
| 34. | 4235905 | [1] | CLAMP | |
| 35. | 4302689 | [1] | PLATE | |
| 36. | 4302688 | [2] | SCREW | |
| 37. | 4302687 | [1] | SPACER | |
| 38. | 4235907 | [1] | COVER | |
| 39. | 4302686 | [1] | CLAMP | |
| 40. | 4235908 | [1] | CLAMP | |
| 41. | 4302685 | [2] | SCREW | |
| 42. | 4302684 | [4] | SCREW | |
| 43. | 4236446 | [3] | BOLT;SEMS | |
| 44. | 4235883 | [4] | WASHER | |
| 45. | 4302683 | [2] | RELAY | |
