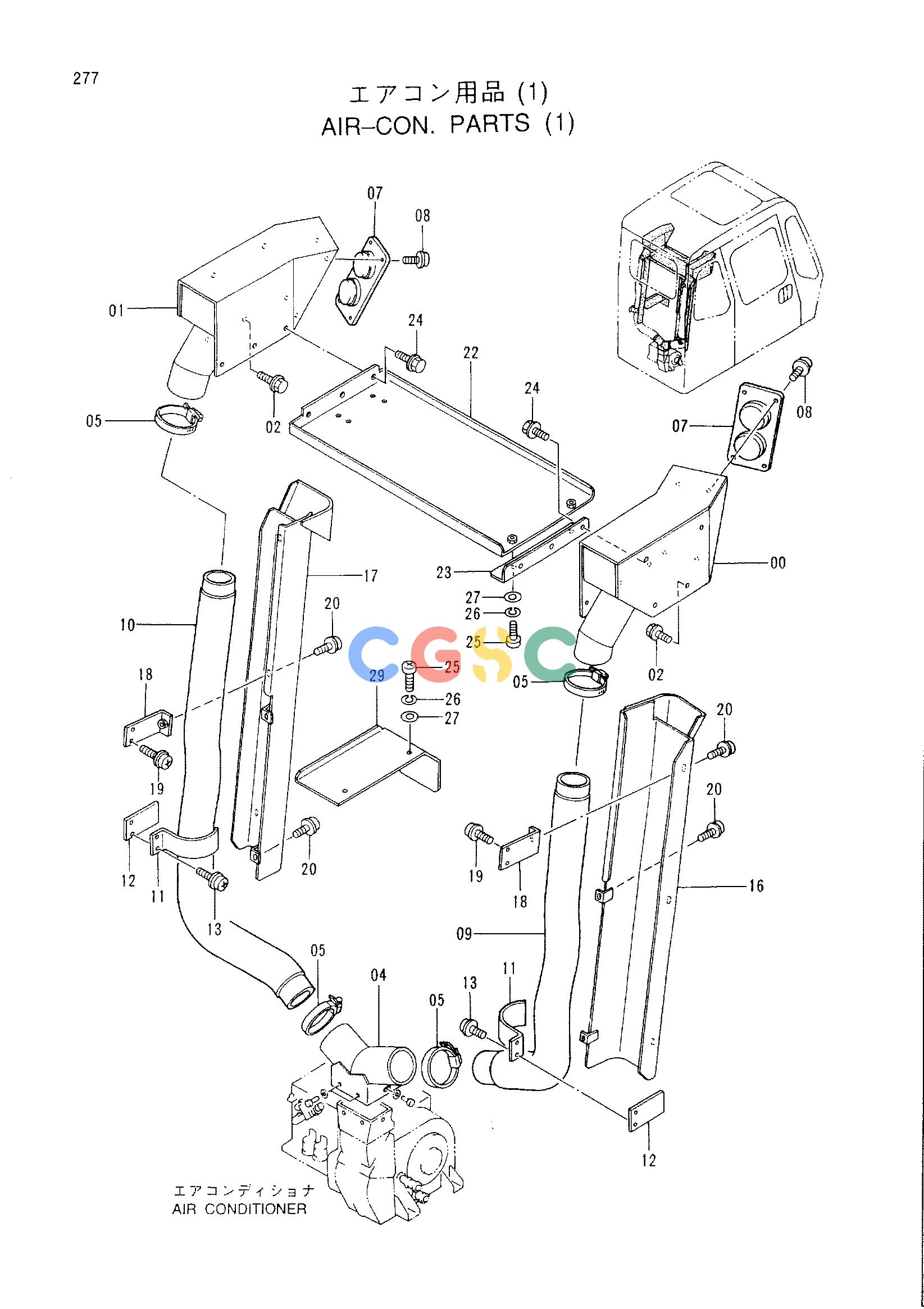

日立零件查询（CX1000）AIR-CON. PARTS (1) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
524 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 7029084 | [1] | DUCT | |
| 01. | 7029088 | [1] | DUCT | |
| 02. | J010814 | [8] | BOLT;SEMS | |
| 04. | 8060040 | [1] | DUCT | |
| 05. | 4507512 | [4] | CLAMP;HOSE | |
| 07. | 4341339 | [2] | GRILLE | |
| 08. | J680512 | [8] | SCREW;SEMS | |
| 09. | 4332671 | [1] | HOSE | |
| 10. | 4332672 | [1] | HOSE | |
| 11. | 4339630 | [2] | CLAMP | |
| 12. | 4339628 | [2] | SEAT | |
| 13. | J450616 | [4] | SCREW;SEMS | |
| 16. | 7029081 | [1] | COVER | |
| 17. | 7029082 | [1] | COVER | |
| 18. | 9742987 | [6] | STAY | |
| 19. | J450614 | [12] | SCREW;SEMS | |
| 20. | J680614 | [10] | SCREW;SEMS | |
| 22. | 8061095 | [1] | STAND | |
| 23. | 4342090 | [1] | BRACKET | |
| 24. | J020820 | [6] | BOLT;SEMS | |
| 25. | J850820 | [4] | SCREW | |
| 26. | J251008 | [4] | WASHER;SPRING | |
| 27. | J250008 | [4] | WASHER;PLANE | |
| 29. | 4341675 | [1] | COVER | |
