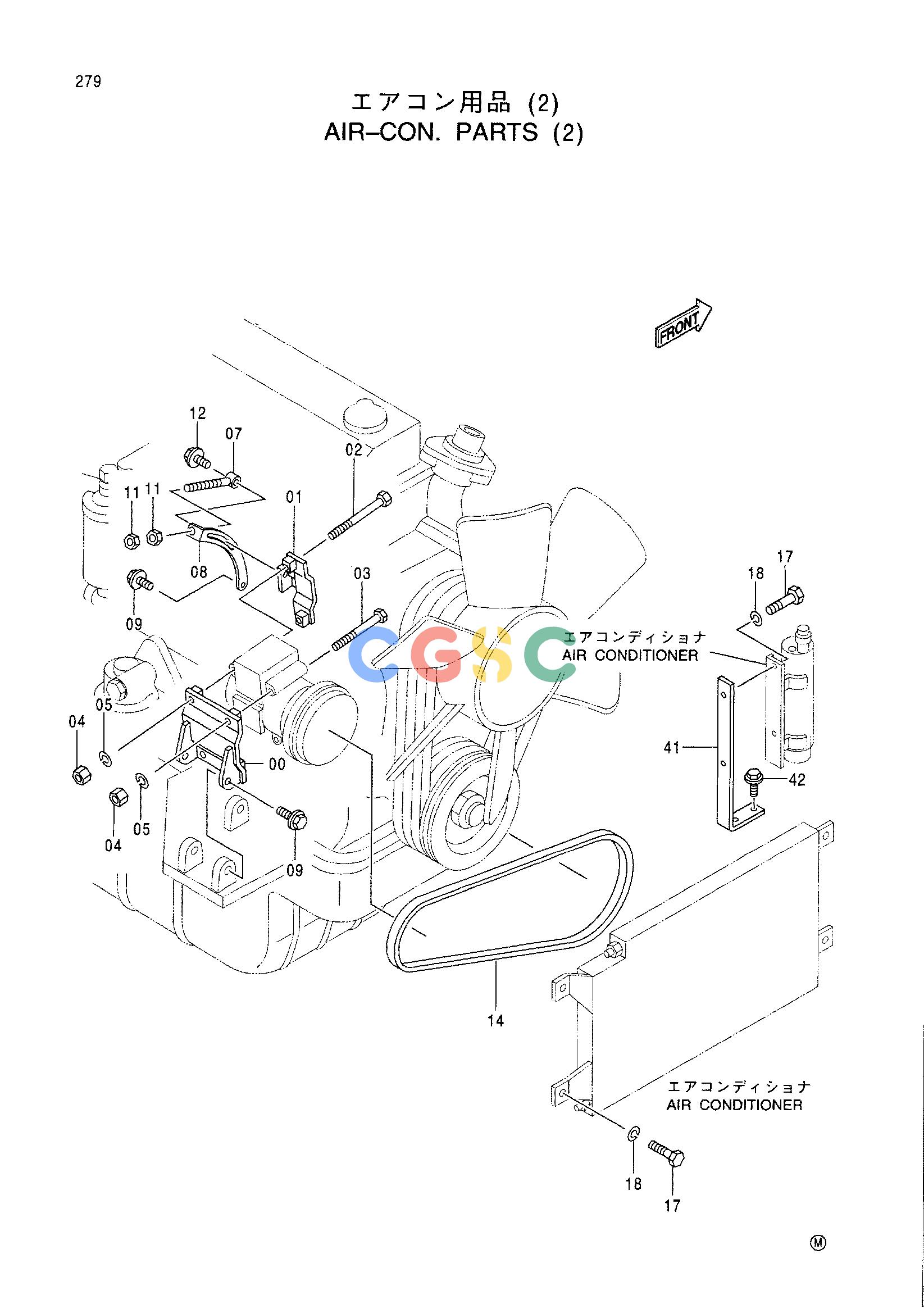

日立零件查询（CX1000）AIR-CON. PARTS (2) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
223 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 8082745 | [1] | BRACKET | |
| 01. | 8082746 | [1] | BRACKET | |
| 02. | J900805 | [2] | BOLT | |
| 03. | J900801 | [2] | BOLT | |
| 04. | M500807 | [4] | NUT | |
| 05. | A590908 | [4] | WASHER;SPRING | |
| 07. | 9756077 | [1] | BOLT;ADJUSTING | |
| 08. | 4448078 | [1] | STAY | |
| 09. | J021035 | [3] | BOLT;SEMS | |
| 11. | J952010 | [2] | NUT | |
| 12. | J011050 | [1] | BOLT;SEMS | |
| 14. | 4343976 | [1] | BELT;V | |
| 17. | J900816 | [6] | BOLT | |
| 18. | A590908 | [6] | WASHER;SPRING | |
| 41. | 4403407 | [1] | BRACEKT | |
| 42. | J011020 | [2] | BOLT;SEMS | |
