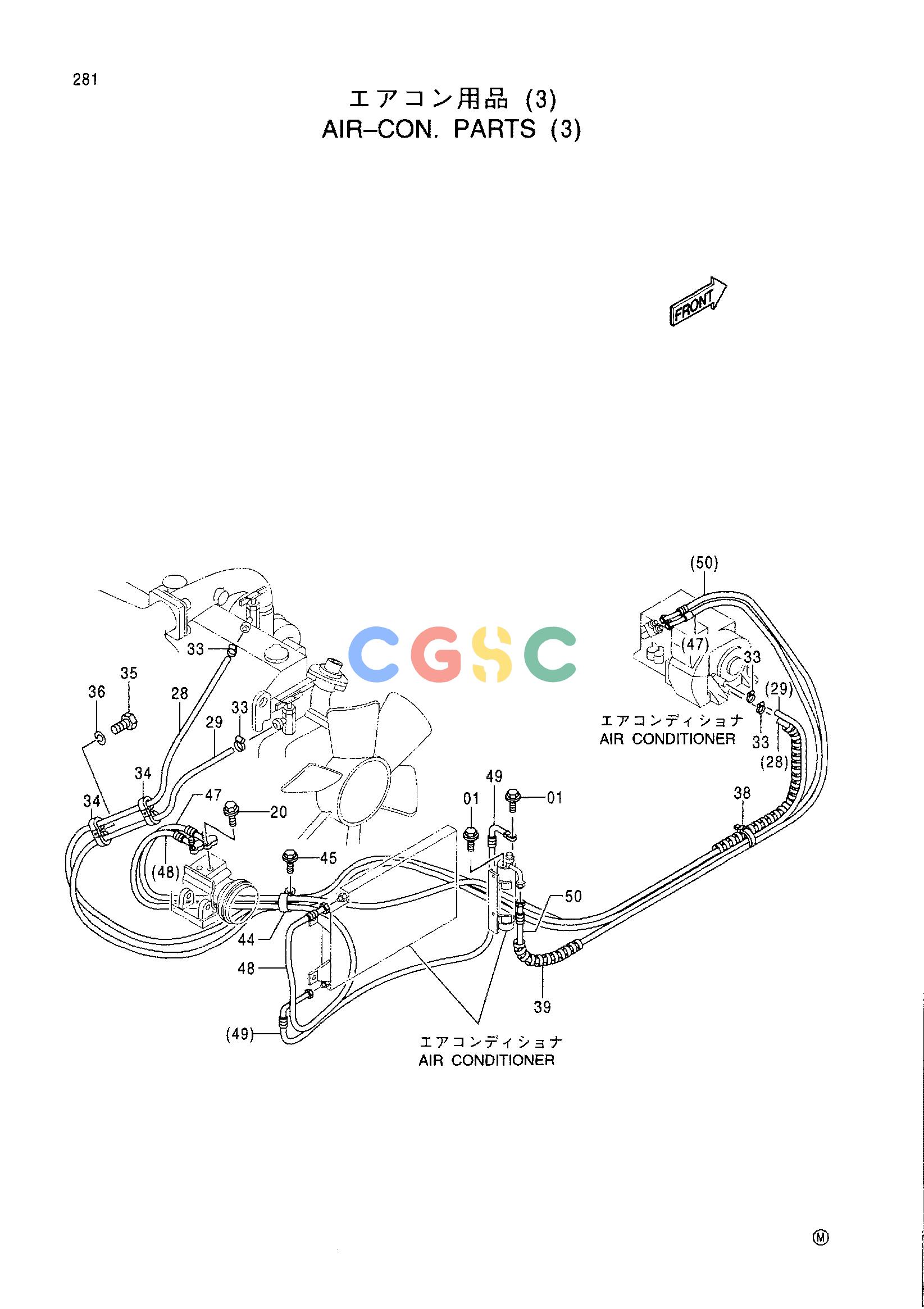

日立零件查询（CX1000）AIR-CON. PARTS (3) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
833 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | J020625 | [2] | BOLT;SEMS | |
| 20. | J020630 | [2] | BOLT;SEMS | |
| 28. | 4413106 | [1] | HOSE;WATER | |
| 29. | 4357203 | [1] | HOSE;WATER | |
| 33. | 4514699 | [4] | CLAMP;HOSE | |
| 34. | 4190277 | [4] | CLIP | |
| 35. | J901016 | [2] | BOLT | |
| 36. | A590910 | [2] | WASHER;SPRING | |
| 38. | 4055312 | [20] | CLIP;BAND | |
| 39. | 4044420 | [10] | PROTECTOR | |
| 44. | 4190265 | [1] | CLIP | |
| 45. | J021020 | [1] | BOLT;SEMS | |
| 47. | 4358508 | [1] | HOSE | |
| 48. | 4358509 | [1] | HOSE | |
| 49. | 4403443 | [1] | HOSE | |
| 50. | 4407537 | [1] | HOSE | |
