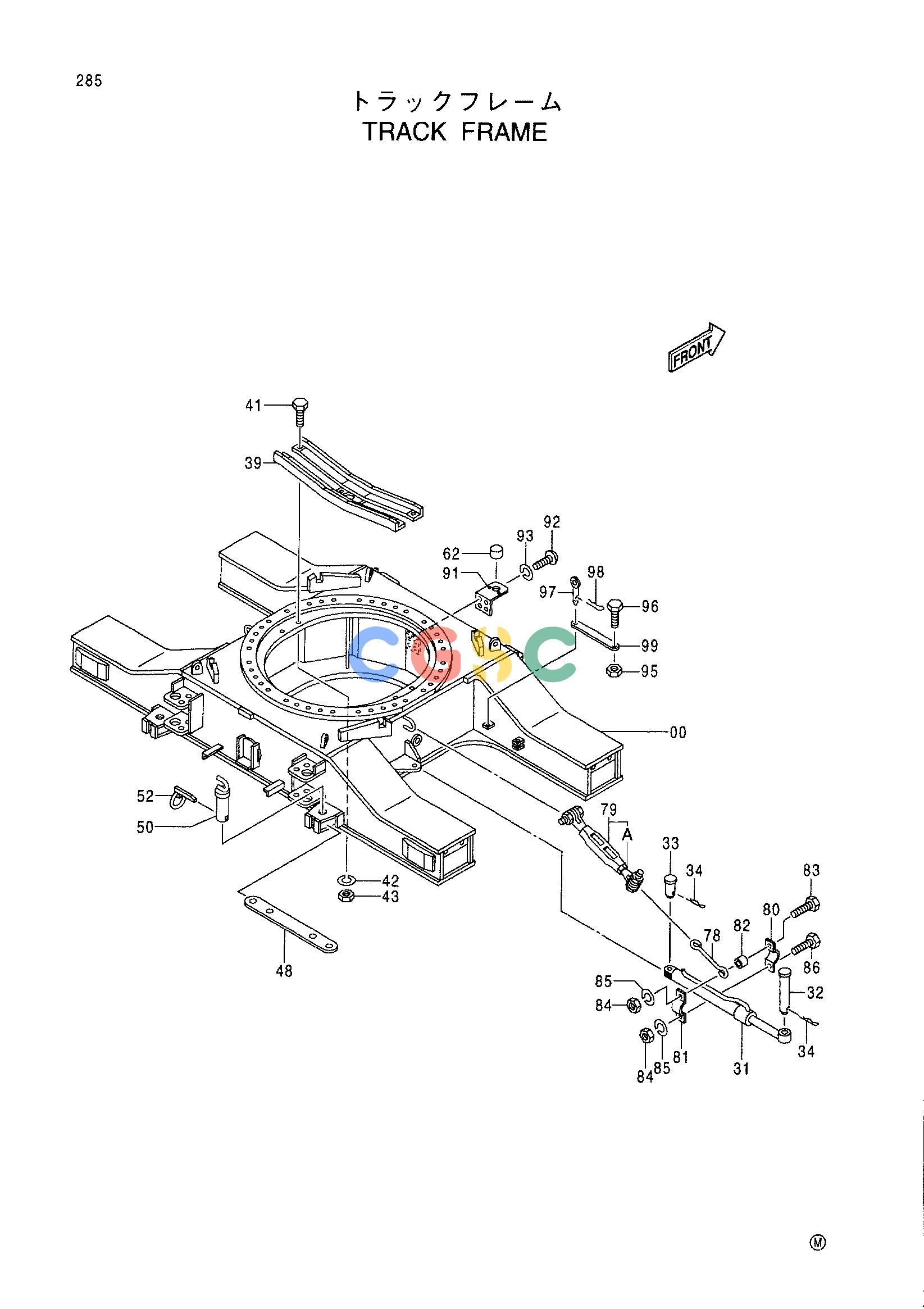

日立零件查询（CX1000）TRACK FRAME Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
544 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 5007736 | [1] | TRACK | |
| 31. | 4158225 | [2] | CYL.;OIL | |
| 32. | 9753014 | [2] | PIN | |
| 33. | 4160556 | [2] | PIN | |
| 34. | 3002554 | [4] | PIN;LOCK | |
| 39. | 9750161 | [1] | BRACKET | |
| 41. | J901270 | [4] | BOLT | |
| 42. | A590912 | [4] | WASHER;SPRING | |
| 43. | J950012 | [4] | NUT | |
| 48. | 4275740 | [4] | LINK | |
| 50. | 9730691 | [8] | PIN | |
| 52. | 9701925 | [8] | PIN;RING | |
| 62. | 4091871 | [1] | LEVEL | |
| 78. | 4226277 | [2] | ROD | |
| 79. | 4336798 | [2] | TURNBUCKLE | |
| 79A. | 4425424 | [1] | NUT | |
| 80. | 9735736 | [2] | CLAMP | |
| 81. | 4226278 | [2] | CLAMP | |
| 82. | 4226279 | [2] | SPACER | |
| 83. | J901250 | [2] | BOLT | |
| 84. | J950012 | [4] | NUT | |
| 85. | A590912 | [4] | WASHER;SPRING | |
| 86. | J901230 | [2] | BOLT | |
| 91. | 4261974 | [1] | BRACKET | |
| 92. | M430513 | [4] | SCREW | |
| 93. | A590905 | [4] | WASHER;SPRING | |
| 95. | M660016 | [2] | NUT;U | |
| 96. | J901655 | [2] | BOLT | |
| 97. | 9705271 | [2] | PIN | |
| 98. | 4022701 | [2] | PIN;LOCK | |
| 99. | 4456590 | [2] | LINK | |
