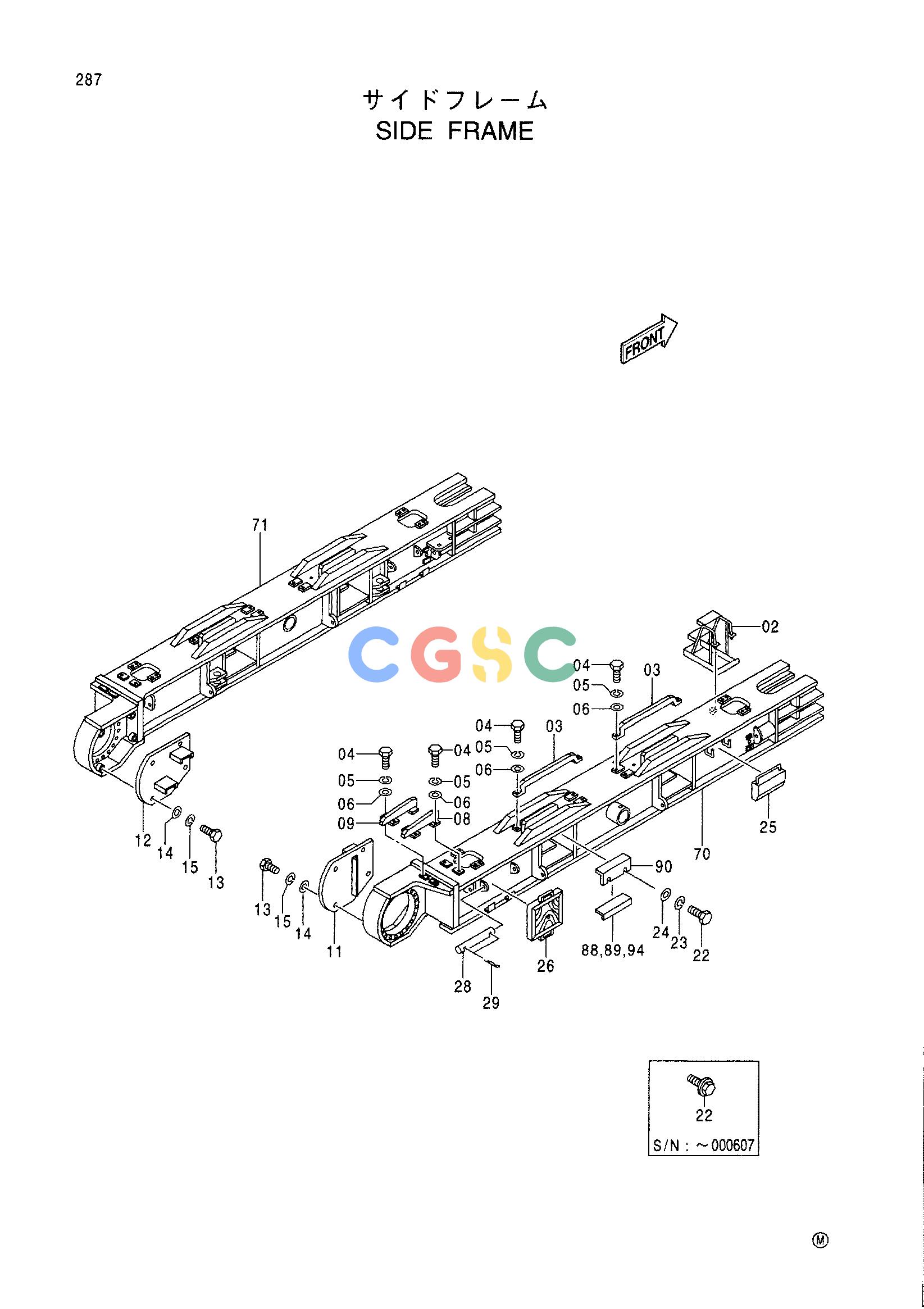

日立零件查询（CX1000）SIDE FRAME Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
516 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 02. | 8057958 | [2] | STEP | |
| 03. | 4225885 | [8] | GUIDE;SHOE | |
| 04. | J912045 | [24] | BOLT | |
| 05. | A590920 | [24] | WASHER;SPRING | |
| 06. | A590120 | [24] | WASHER;PLANE | |
| 08. | 9730598 | [2] | GUIDE;SHOE(R) | |
| 09. | 9730599 | [2] | GUIDE;SHOE(L) | |
| 11. | 8044101 | [1] | COVER (R) | |
| 12. | 8044100 | [1] | COVER (L) | |
| 13. | J901635 | [8] | BOLT | |
| 14. | A590116 | [8] | WASHER;PLANE | |
| 15. | A590916 | [8] | WASHER;SPRING | |
| 22. | J031230 | [8] | BOLT;SEMS | TJ901640 |
| 22. | J031230 | [8] | BOLT;SEMS | A590916 |
| 22. | J031230 | [8] | BOLT;SEMS | J217085 |
| 22. | J901640 | [8] | BOLT | |
| 23. | A590916 | [8] | WASHER;SPRING | |
| 24. | J217085 | [8] | WASHER | |
| 25. | 7040633 | [2] | PAD | |
| 26. | 8037822 | [4] | PLATE | |
| 28. | 4077343 | [2] | PIN | |
| 29. | 4077248 | [4] | PIN;LOCK | |
| 70. | 4471286 | [1] | FRAME;SIDE (R) | |
| 71. | 4471287 | [1] | FRAME;SIDE (L) | |
| 88. | 4247950 | [4] | SHIM | |
| 89. | 4247951 | [4] | SHIM | |
| 90. | 4361163 | [4] | SHIM | I4471378 |
| 90. | 4471378 | [4] | SHIM | |
| 94. | 4328677 | [4] | SHIM | |
