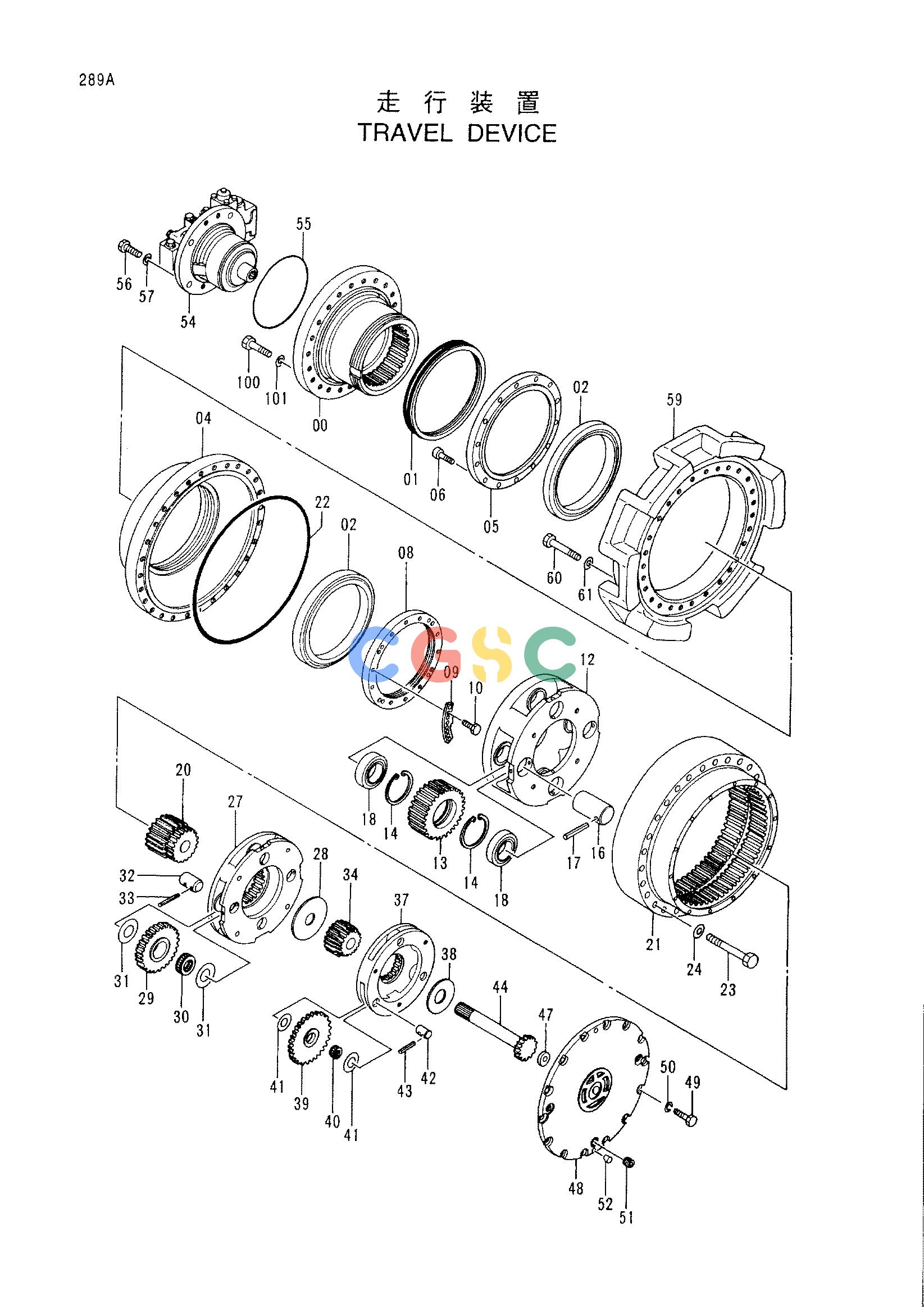

日立零件查询（CX1000）TRAVEL DEVICE Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
564 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00-6. | 9121486 | [2] | TRAVEL DEVICE | |
| 00. | 1012221 | [1] | HOUSING | |
| 01. | 4082698 | [1] | SEAL;GROUP | |
| 02. | 4224213 | [2] | BRG.;ROL. | |
| 04. | 1012222 | [1] | DRUM | |
| 05. | 2025908 | [1] | SUPPORT | |
| 06. | M341640 | [14] | BOLT;SOCKET | |
| 08. | 3041842 | [1] | NUT | |
| 09. | 3041841 | [1] | PLATE;LOCK | |
| 10. | J901635 | [2] | BOLT | |
| 12. | 1012223 | [1] | CARRIER | |
| 13. | 3041845 | [4] | GEAR;PLANETARY | |
| 14. | 4083426 | [8] | RING;RETAINING | |
| 16. | 4221787 | [4] | PIN | |
| 17. | 4222005 | [4] | PIN;SPRING | |
| 18. | 4232439 | [4] | BRG.;SPH.ROL. | |
| 20. | 3041846 | [1] | GEAR;SUN | |
| 21. | 1012227 | [1] | GEAR;RING | |
| 22. | 4222004 | [1] | O-RING | |
| 23. | J833318 | [28] | BOLT | |
| 24. | 4083438 | [28] | WASHER | |
| 27. | 1012225 | [1] | CARRIER | |
| 28. | 4219935 | [1] | SPACER | |
| 29. | 3041847 | [4] | GEAR;PLANETARY | |
| 30. | 4199576 | [4] | BRG;NEEDLE | |
| 31. | 4199578 | [8] | PLATE;THRUST | |
| 32. | 4221786 | [4] | PIN | |
| 33. | 4197125 | [4] | PIN;SPRING | |
| 34. | 3041844 | [1] | GEAR;SUN | |
| 37. | 1012224 | [1] | CARRIER | |
| 38. | 4221788 | [1] | SPACER | |
| 39. | 3041843 | [3] | GEAR;PLANETARY | |
| 40. | 4150398 | [3] | BRG;NEEDLE | |
| 41. | 4224214 | [6] | PLATE;THRUST | |
| 42. | 4221785 | [3] | PIN | |
| 43. | 986954 | [3] | PIN;SPRING | |
| 44. | 2025907 | [1] | SHAFT;PROP. | |
| 47. | 4234756 | [1] | SEAT | |
| 48. | 1012226 | [1] | COVER | |
| 49. | J901645 | [14] | BOLT | |
| 50. | A590916 | [14] | WASHER;SPRING | |
| 51. | 94-2015 | [3] | PLUG | |
| 52. | 428028 | [2] | CORK | |
| 54. | 4224215 | [1] | MOTOR;OIL | |
| 55. | 4271596 | [1] | O-RING | |
| 56. | J931860 | [4] | BOLT | |
| 57. | A590918 | [4] | WASHER;SPRING | |
| 59. | 1012228 | [1] | TUMBLER;DRIVING | |
| 60. | J833312 | [28] | BOLT | |
| 61. | 4083438 | [28] | WASHER | |
| 100. | J833306 | [52] | BOLT | |
| 101. | 4083438 | [52] | WASHER | |
