斗山零件查询COOLER & HEATER ASS'Y(1)-CABIN PART SOLAR 185W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
660 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
920-00110
|
[-] |

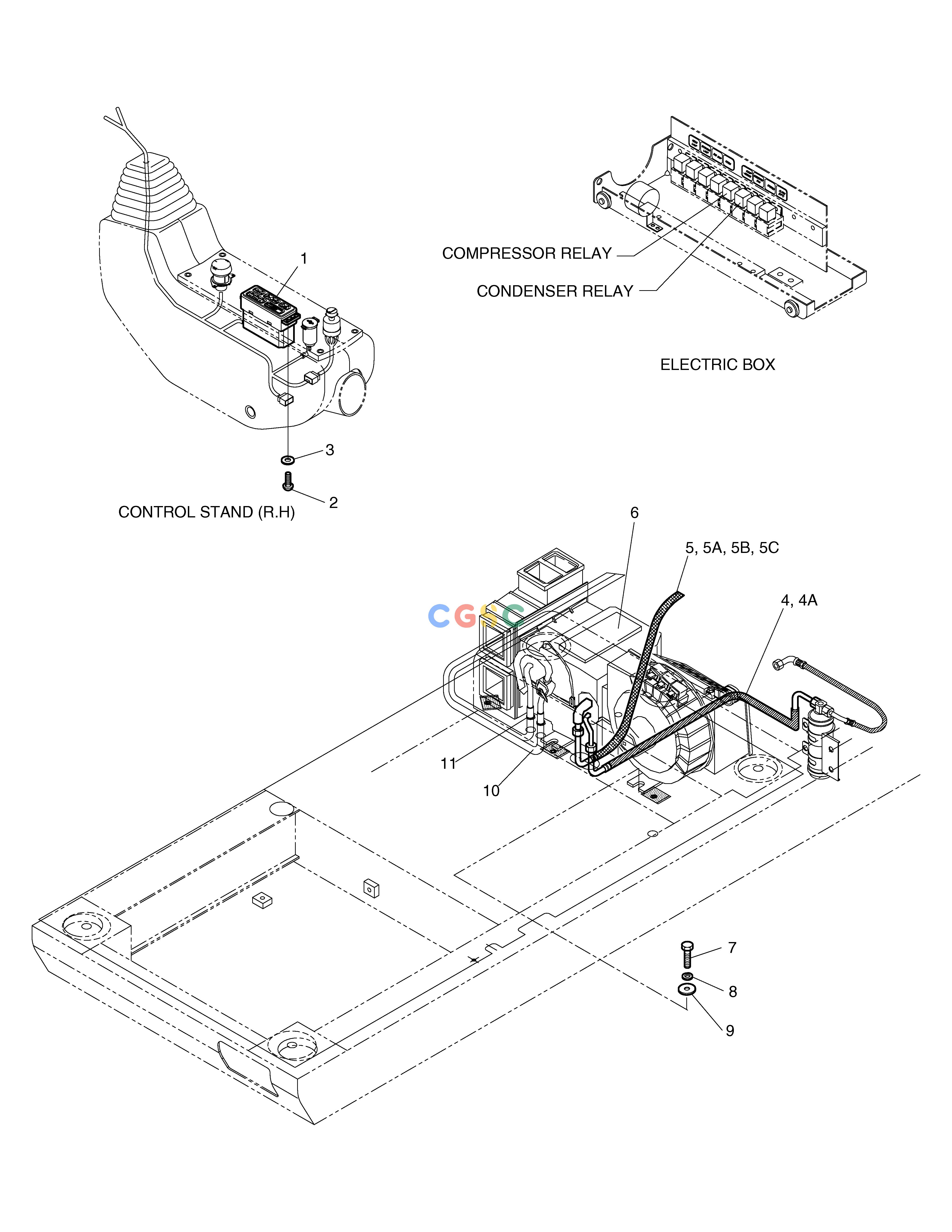

COOLER & HEATER ASS'Y(1)- CABIN PART
|
|
| 1. |
543-00049
|
[1] |
PANEL;AIRCON CONTROL
|
|
| 10. |
2185-1308D5
|
[2] |
HOSE;RUBBER
|
|
| 11. |
S8450016
|
[2] |
. CLAMP
|
|
| 2. |
S3450583
|
[4] |
SCREW
|
|
| 3. |
S5000113
|
[4] |
WASHER
|
|
| 4. |
2185-1698D1
|
[1] |
HOSE;LIQUID(2)
|
|
| 4A. |
2180-6090
|
[2] |
O-RING
|
|
| 5. |
2185-1703B
|
[1] |
HOSE;SUCTION 2795L
|
|
| 5A. |
2180-6086
|
[1] |
O-RING(COMP)
|
|
| 5B. |
2180-6087
|
[1] |
O-RING(EVA)
|
|
| 5C. |
1.161-00019
|
[1] |
CAP;CHECK PORT(L)
|
|
| 6. |
920-00020B
|
[1] |
UNIT;AIRCON
|
|
| 7. |
S0509053
|
[6] |
. BOLT
|
|
| 8. |
S5102503
|
[6] |
. WASHER
|
|
| 9. |
2114-1058D29
|
[6] |
WASHER
|
|
