斗山零件查询COOLER & HEATER ASS'Y(2)-ENGINE PART SOLAR 185W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
468 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
920-00111
|
[-] |

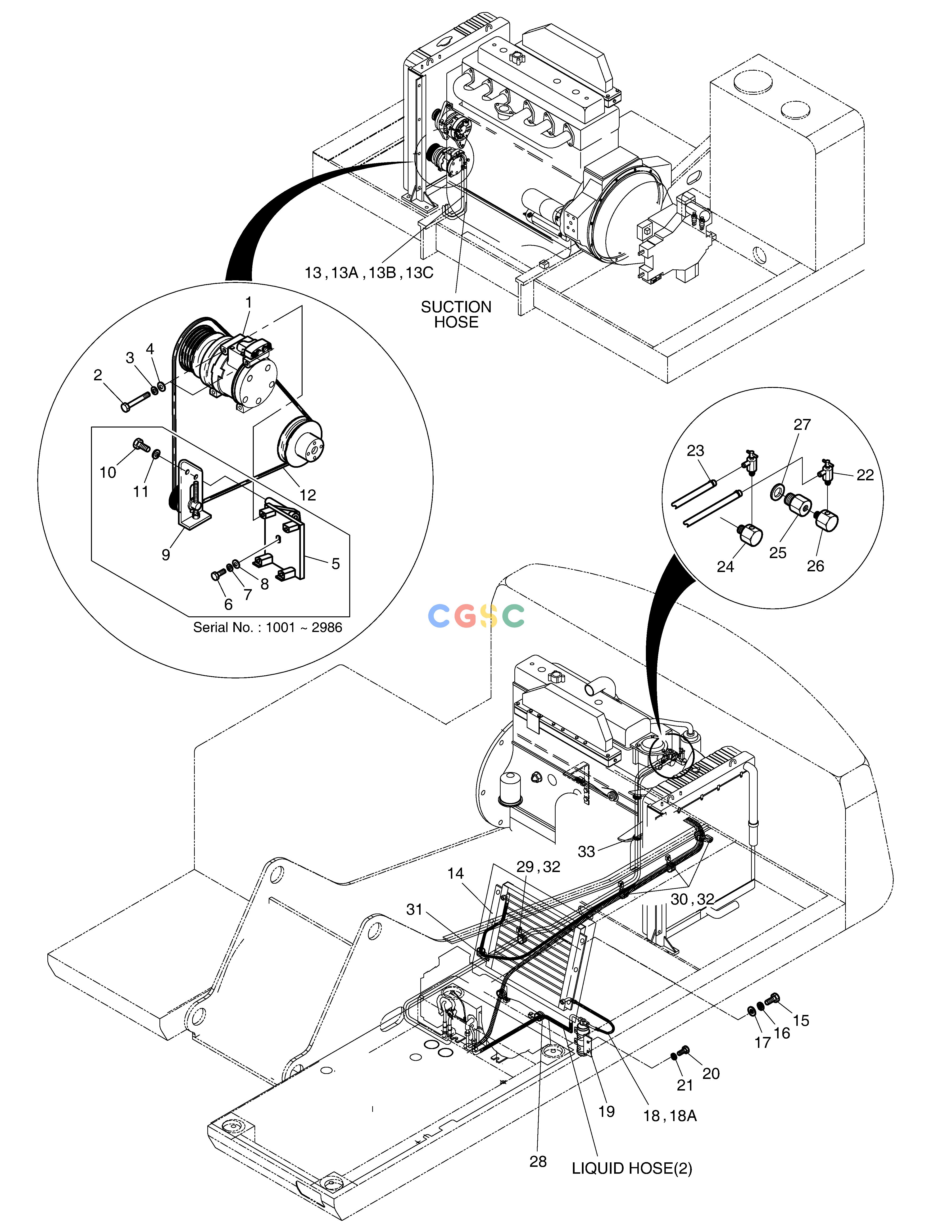

COOLER & HEATER ASS'Y(2)-ENGINE PART
|
|
| -. |
440213-00032A
|
[-] |
|
|
| 1. |
2208-6013B
|
[1] |
COMPRESSOR
|
440205-00070
|
| 1. |
440205-00070
|
[1] |
COMPRESSOR
|
|
| 10. |
S0759853
|
[2] |
BOLT
|
|
| 11. |
S5102603
|
[2] |
. WASHER
|
|
| 12. |
2106-1019D10
|
[1] |
V-BELT 4PK 990L
|
|
| 12. |
2106-1019D11
|
[1] |
V-BELT
|
|
| 13. |
185-00031A
|
[1] |
HOSE;DISCHARGE 2380L
|
|
| 13A. |
2180-6089
|
[1] |
O-RING(COND)
|
|
| 13B. |
2180-6088
|
[1] |
O-RING(COMP)
|
|
| 13C. |
1.161-00018
|
[1] |
CAP;CHECK PORT(H)
|
|
| 14. |
2520-6004
|
[1] |
CONDENSER ASS'Y
|
|
| 15. |
S0512053
|
[6] |
BOLT
|
|
| 16. |
S5102603
|
[6] |
. WASHER
|
|
| 17. |
S5010613
|
[6] |
WASHER
|
|
| 18. |
2185-1697D2
|
[1] |
HOSE;LIQUID(1)
|
|
| 18A. |
2180-6090
|
[2] |
O-RING
|
|
| 19. |
2204-6039A
|
[1] |
RECEIVER DRIER
|
300720-00003
|
| 19. |
300720-00003
|
[1] |
DRYER,RECEIVER
|
|
| 2. |
S0557153
|
[4] |
BOLT M8X1.25X90
|
|
| 20. |
S0508653
|
[2] |
BOLT
|
|
| 21. |
S5102503
|
[2] |
. WASHER
|
|
| 22. |
2186-9003
|
[2] |
VALVE
|
410202-00034
|
| 22. |
410202-00034
|
[2] |
|
|
| 23. |
S8450016
|
[2] |
. CLAMP
|
|
| 24. |
2181-1159
|
[1] |
ADAPTER
|
|
| 25. |
2181-1160A
|
[1] |
ADAPTER
|
430201-00278
|
| 25. |
430201-00278
|
[1] |
|
|
| 26. |
2181-1161A
|
[1] |
ADAPTER
|
|
| 27. |
S8180411
|
[1] |
SEAL;COPPER
|
|
| 28. |
124-00208D3
|
[1] |
CLIP
|
|
| 29. |
124-00208D7
|
[1] |
CLIP
|
|
| 3. |
S5102503
|
[4] |
. WASHER
|
|
| 30. |
124-00209D1
|
[2] |
CLIP
|
|
| 31. |
2124-1353D4
|
[1] |
CLIP
|
|
| 32. |
120-00276
|
[3] |
BOLT M8X1.25X12
|
|
| 33. |
2124-1622D3
|
[10] |
CLIP;BAND 280L
|
|
| 4. |
S5010513
|
[4] |
WASHER
|
|
| 5. |
2197-1798B
|
[1] |
BRACKET;COMPRESSOR
|
|
| 5. |
2197-1798C
|
[1] |
BRACKET;COMPRESSOR
|
|
| 6. |
S0712153
|
[1] |
BOLT M10X1.25X28
|
|
| 7. |
S5102603
|
[1] |
. WASHER
|
|
| 8. |
S5010613
|
[1] |
WASHER
|
|
| 9. |
2107-6006
|
[1] |
PULLEY ASS'Y;IDLE
|
|
