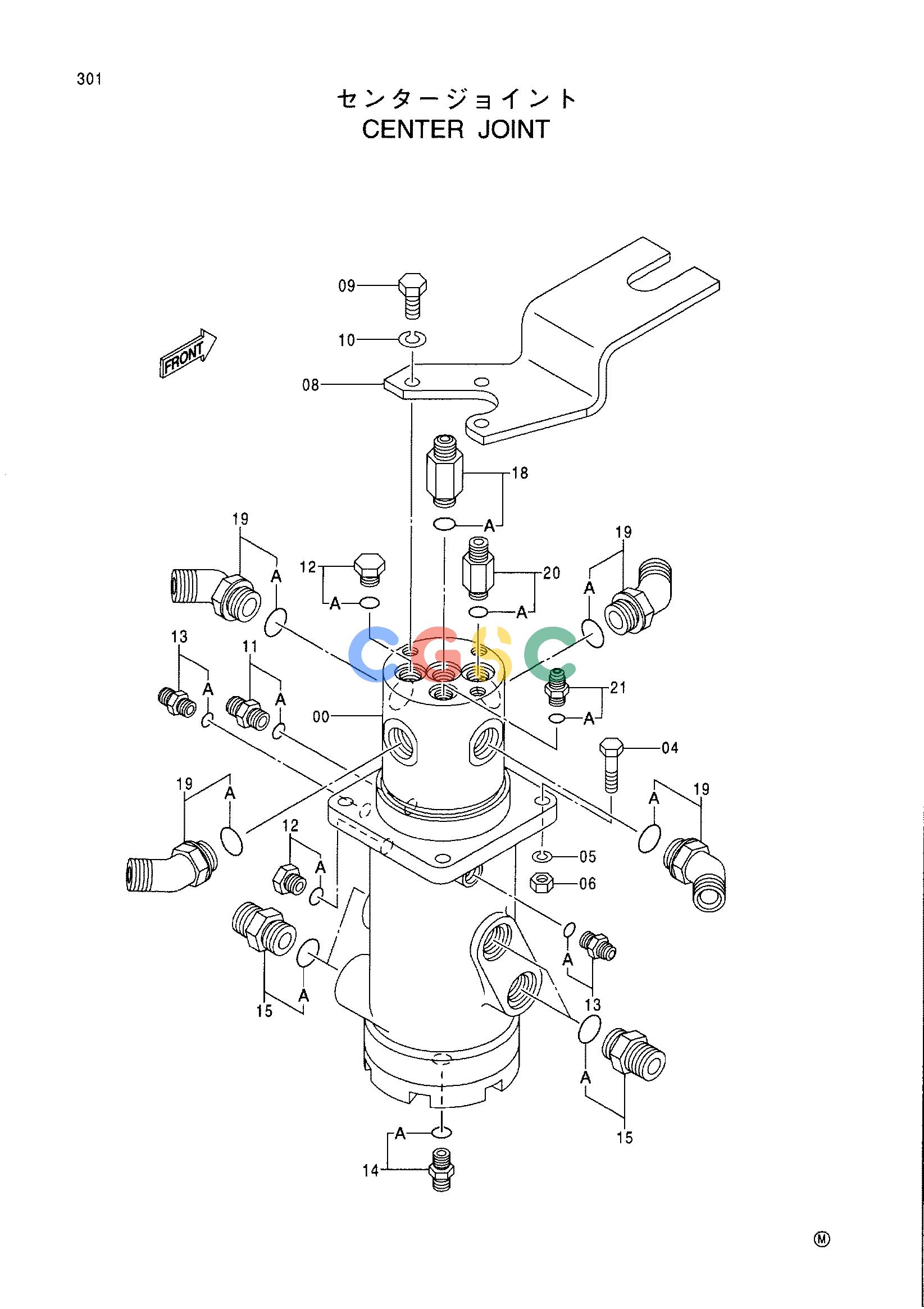

日立零件查询（CX1000）CENTER JOINT Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
314 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 9169875 | [1] | CENTER JOINT | |
| 00. | 4307082 | [1] | JOINT;CENTER | |
| 04. | J901245 | [4] | BOLT | |
| 05. | A590912 | [4] | WASHER;SPRING | |
| 06. | J950012 | [4] | NUT | |
| 08. | 4399604 | [1] | STOPPER | |
| 09. | J901430 | [3] | BOLT | |
| 10. | A590914 | [3] | WASHER;SPRING | |
| 11. | 4042031 | [1] | ADAPTER | |
| 11A. | 4509180 | [1] | O-RING | |
| 12. | 4092534 | [2] | PLUG | |
| 12A. | 4509180 | [1] | O-RING | |
| 13. | 4160641 | [2] | ADAPTER;S | |
| 13A. | 957366 | [1] | O-RING | |
| 14. | 4159158 | [1] | ADAPTER;S | |
| 14A. | 4506418 | [1] | O-RING | |
| 15. | 4139973 | [4] | ADAPTER;S | |
| 15A. | 4506424 | [1] | O-RING | |
| 18. | 4276940 | [1] | ADAPTER;S | |
| 18A. | 4506418 | [1] | O-RING | |
| 19. | 4173020 | [4] | ELBOW;S | |
| 19A. | 4506424 | [1] | O-RING | |
| 20. | 4368210 | [1] | ADAPTER;S | |
| 20A. | 4509180 | [1] | O-RING | |
| 21. | 4200467 | [1] | ADAPTER;S | |
| 21A. | 957366 | [1] | O-RING | |
