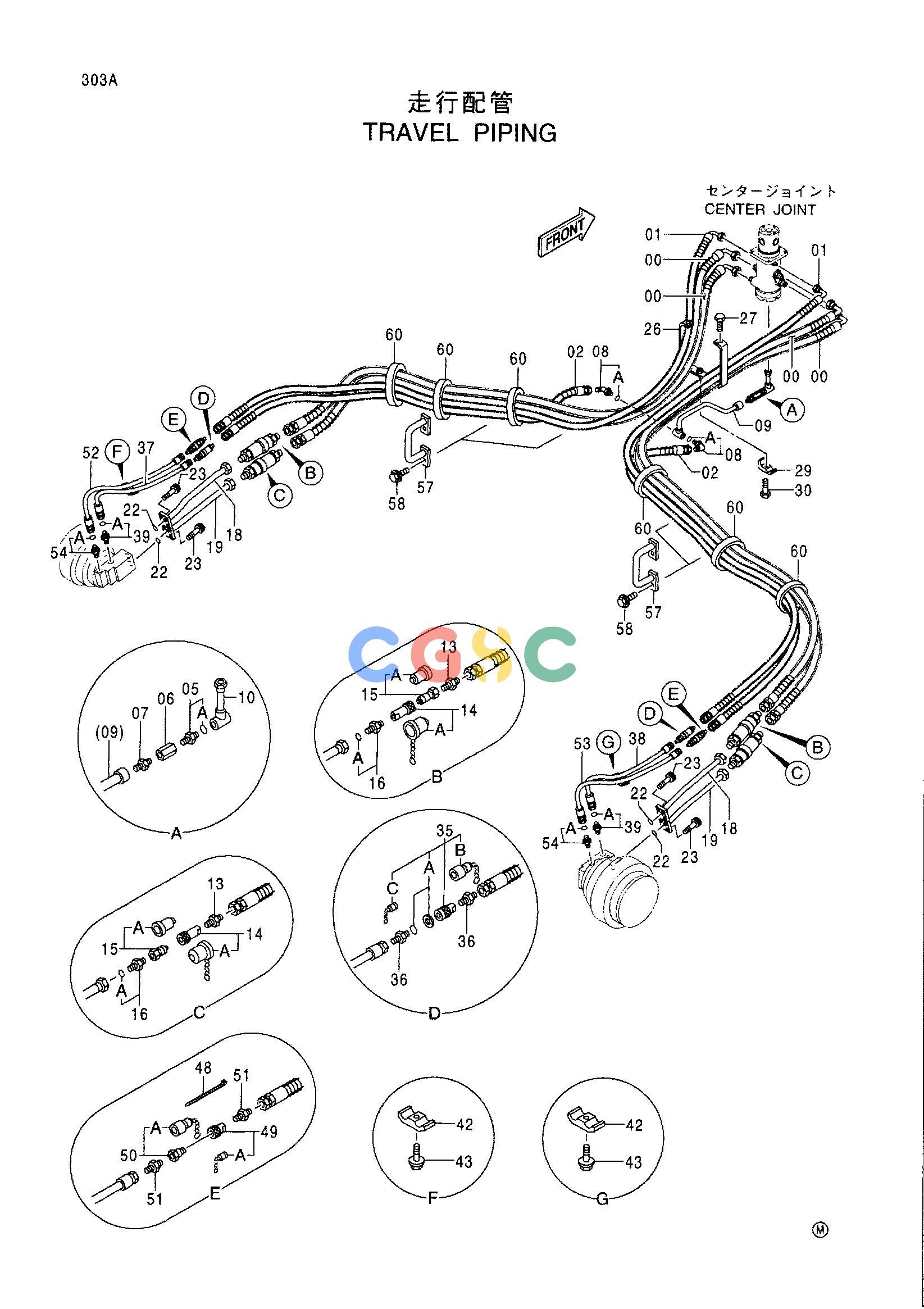

日立零件查询（CX1000）TRAVEL PIPING Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
444 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 4456565 | [4] | HOSE | |
| 01. | 4456567 | [2] | HOSE | |
| 02. | 4456572 | [2] | HOSE | |
| 05. | 4371030 | [1] | ADAPTER;S | |
| 05A. | 4509180 | [1] | O-RING | |
| 06. | 9034570 | [1] | VALVE;CHECK | |
| 07. | 94-1303 | [1] | ADAPTER;S | |
| 08. | 4037760 | [2] | ELBOW;S | |
| 08A. | 4506418 | [1] | O-RING | |
| 09. | 8084514 | [1] | PIPE | |
| 10. | 9750229 | [1] | PIPE | |
| 13. | 4371042 | [4] | ADAPTER;S | |
| 14. | 4141056 | [4] | JOINT;SELF-SEAL | |
| 14A. | 4141798 | [1] | CAP | |
| 15. | 4141057 | [4] | JOINT;SELF-SEAL | |
| 15A. | 4141799 | [1] | CAP | |
| 16. | 4371043 | [4] | ADAPTER;S | |
| 16A. | 4506429 | [1] | O-RING | |
| 18. | 9756824 | [2] | PIPE | |
| 19. | 9756825 | [2] | PIPE | |
| 22. | A811035 | [4] | O-RING | |
| 23. | M341236 | [16] | BOLT;SOCKET | |
| 26. | 9756818 | [1] | BRACKET | |
| 27. | J011245 | [2] | BOLT;SEMS | |
| 29. | 4190125 | [1] | CLAMP;PIPE | |
| 30. | J011260 | [1] | BOLT;SEMS | |
| 35. | 4054613 | [2] | VALVE;QUICK | |
| 35A. | 4311296 | [1] | SEAL ASS'Y | |
| 35B. | 4330194 | [1] | CAP;DUST | |
| 35C. | 4330195 | [1] | PLUG | |
| 36. | 94-1303 | [4] | ADAPTER;S | |
| 37. | 9730706 | [1] | PIPE | |
| 38. | 9730707 | [1] | PIPE | |
| 39. | 4042032 | [2] | ADAPTER | |
| 39A. | 4506418 | [1] | O-RING | |
| 42. | 4202559 | [2] | CLAMP;PIPE | |
| 43. | J021045 | [2] | BOLT;SEMS | |
| 48. | 4044883 | [8] | CLAMP | |
| 49. | 4022907 | [2] | JOINT;SELF-SEAL | |
| 49A. | 4072595 | [1] | CAP | |
| 50. | 4022908 | [2] | JOINT;SELF-SEAL | |
| 50A. | 4072596 | [1] | CAP | |
| 51. | 94-1302 | [4] | ADAPTER;S | |
| 52. | 9730704 | [1] | PIPE | |
| 53. | 9730705 | [1] | PIPE | |
| 54. | 4042031 | [2] | ADAPTER | |
| 54A. | 4509180 | [1] | O-RING | |
| 57. | 9756820 | [4] | GUIDE;HOSE | |
| 58. | J011225 | [8] | BOLT;SEMS | |
| 60. | 4077322 | [10] | BAND | |
