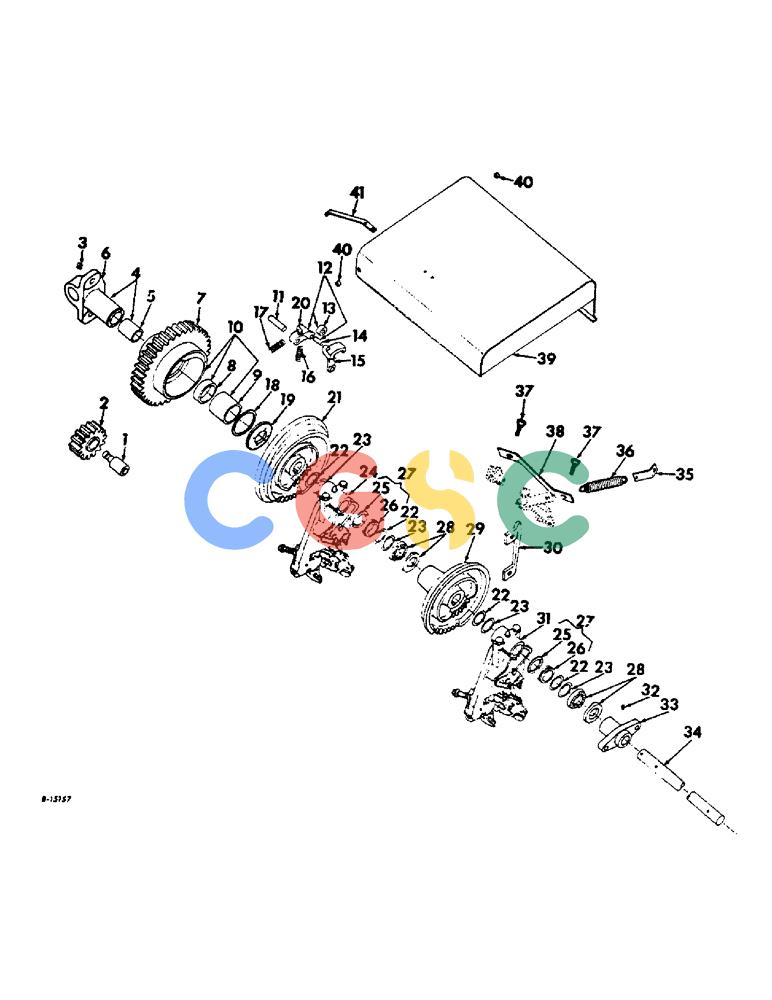

| 1. |
674464R91
|
[1] |
BEARING ASSY,0.6267" ID x 1.1811" OD x 1.531"
|
IH
ASSY, auger drive
|
| . . |
120377
|
[1] |
NUT,3/8" - 16, Gr 5
|
IH
Superseded by part number: 280136
|
| . . |
23685R1
|
[1] |
SET SCREW,Hex Soc, 3/8"-16 x 1 3/4"
|
IH
Superseded by part number: 483-13828
|
| 2. |
674104R1
|
[1] |
GEAR
|
IH
PINION, auger drive idler
|
| 3. |
16964R91
|
[1] |
FITTING
|
IH
1/4-28 90 deg angle lub. Superseded by part number: 87414
|
| 4. |
669643R11
|
[1] |
PIVOT
|
IH
SUPPORT, w/bushing knotter and gear insert Superseded by part number: 3101331R91
|
| . . |
180177
|
[2] |
BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5
|
IH
SCREW, 1/2 x 1-1/2 hex hd cap Superseded by part number: 113-410
|
| . . |
120384
|
[2] |
WASHER,1/2"
|
IH
LOCK, 1/2" Superseded by part number: 116121
|
| 5. |
667824R1
|
[1] |
BUSHING
|
IH
knotter shaft
|
| 8. |
667826R1
|
[1] |
BUSHING
|
IH
knotter drive gear R.H.
|
| 9. |
669644R1
|
[1] |
BUSHING
|
IH
knotter drive gear L.H.
|
| 10. |
674103R11
|
[1] |
GEAR
|
IH
ASSY, knotter drive
|
| 11. |
664947R1
|
[1] |
PIVOT
|
IH
trip dog
|
| . . |
21757R1
|
[1] |
WASHER
|
IH
15/32 x 13/16 x 18 ga C-Z (or as required) Superseded by part number: 87613196
|
| . . |
21756R1
|
[1] |
WASHER
|
IH
15/32 x 3/4 x 22 ga., (or as required) Superseded by part number: 86624145
|
| 12. |
655712R11
|
[1] |
PAWL
|
IH
DOG, w/roller and stud trip
|
| 13. |
V341
|
[1] |
PAWL
|
IH
ROLLER, trip dog
|
| 14. |
V690
|
[1] |
PIN
|
IH
STUD, trip dog roller
|
| 15. |
662048R2
|
[1] |
PAWL
|
IH
DOG, auxiliary trip
|
| 16. |
R1003
|
[1] |
SPRING
|
IH
auxiliary trip dog
|
| 17. |
V680
|
[1] |
SPRING
|
IH
trip dog Superseded by part number: 753027R1
|
| 18. |
202531C1
|
[2] |
WASHER
|
IH
drive gear, (or as required)
|
| 19. |
666754R1
|
[1] |
WASHER
|
IH
RETAINER, drive gear
|
| . . |
668787R1
|
[4] |
SCREW,Hex Soc Hd, 1/4"-20 x 1/2"
|
IH
1/4-20 x 1/2 hex. soc. hd
|
| 21. |
667820R4
|
[1] |
CARRIER
|
IH
trip dog, Baler not equipped with long wear knotters, 430T serial No. 000501 thru 012280, 440T serial No. 000501 thru 004613, 667820R4 and 201141C91 must be ordered after 667820R3 is exhausted
|
| . . |
Q3728
|
[1] |
KEY,Gib, 3/8" Sq x 2 1/8" Tap
|
IH
3/8 x 2-1/8 sq. tapered
|
| . . |
21747R1
|
[2] |
WASHER,1.22" ID x 2" OD x 0.07" Thk
|
IH
1-7/32 x 2 x 16 ga C-Z
|
| . . |
21812R1
|
[1] |
WASHER
|
IH
1-7/32 x 2 x 22 ga C-Z
|
| . . |
443057
|
[1] |
GROOVED PIN,3/8" x 2 1/4", Type F
|
IH
Pin, Grooved, 3/8" x 2 1/4", Type F Superseded by part number: 435-61236
|
| 22. |
316171C1
|
[8] |
SHIM
|
IH
knotter to cam, (or as required)
|
| 23. |
667588R1
|
[16] |
DISC
|
IH
SHIM, knotter to cam, (or as reqd.)
|
| 24. |
201646C94
|
[1] |
KNOTTER
|
IH
ASSY RH, for components see list of parts under details of knotter Superseded by part number: 201646C95
|
| 25. |
125806H1
|
[2] |
SNAP RING,#175, Ext
|
IH
RING, SNAP, #175, Ext
|
| 27. |
202511C91
|
[2] |
PAN
|
IH
RING ASSY, knotter spacer, (or as required)
|
| 28. |
667813R1
|
[4] |
COLLAR CLAMP
|
IH
COLLAR, knotter shaft adj.
|
| 28. |
443100
|
[4] |
STUD
|
IH
No. 12 x 1/2 rd hd grooved
|
| . . |
137258
|
[1] |
COTTER PIN
|
IH
3/16" x 1 3/4" Superseded by part number: 432-1228
|
| . . |
607894R1
|
[2] |
WASHER
|
IH
1-7/32 x 1-3/4 x 22 ga. C-Z, (or as required)
|
| . . |
607890R1
|
[2] |
WASHER
|
IH
1-7/32 x 1-3/4 x 16 ga. C-Z, (or as required)
|
| 29. |
202108C1
|
[1] |
CAM
|
IH
knotter left
|
| . . |
Q22
|
[1] |
KEY
|
IH
3/8 x 1/4 x 2-1/4 str.
|
| . . |
120378
|
[1] |
NUT,Hex, 1/2" - 13, Gr 5
|
IH
NUT, 1/2"-13, G5 Superseded by part number: 280431
|
| . . |
180190
|
[1] |
LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5
|
IH
SCREW, 1/2-13 x 3 hex. hd. cap Superseded by part number: 179893
|
| 30. |
201649C1
|
[1] |
CAM
|
IH
twine knife driving
|
| . . |
24695R1
|
[2] |
SCREW
|
IH
w/csk ext. tooth lock washer, 3/8-16 x 1 znd slt-f-hd mach
|
| . . |
22825R1
|
[2] |
WASHER
|
IH
15/32 x 1-1/4 x 7 ga Superseded by part number: 495-81012
|
| 31. |
201608C94
|
[1] |
KNOTTER
|
IH
ASSY LH, for components see list of parts under details of knotter Superseded by part number: 201608C95
|
| 32. |
87414
|
[1] |
LUBE NIPPLE,1/4" - 28
|
NH
FITTING, 1/4-28 str self tap. lub.
|
| 33. |
667818R1
|
[1] |
FLANGE
|
IH
BEARING, knotter shaft left
|
| . . |
18495R1
|
[2] |
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2
|
IH
3/8 x 1-1/4 hex. hd. mach Superseded by part number: 180124
|
| . . |
120382
|
[2] |
LOCK WASHER,Helical Spring, 3/8"
|
IH
WASHER, LOCK, 3/8" Superseded by part number: 80680
|
| 34. |
667812R1
|
[1] |
SHAFT
|
IH
knotter
|
| 35. |
201652C2
|
[1] |
ANCHOR
|
IH
knife spring
|
| . . |
469668R1
|
[1] |
WASHER
|
IH
13/32 x 3/4 x 16 ga C-Z Superseded by part number: 86632580
|
| 36. |
202656C1
|
[1] |
SPRING
|
IH
knife return
|
| 37. |
441485R1
|
[2] |
BOLT,Shoulder, Hex, 3/8" - 16 x 1 1/2"
|
IH
shoulder
|
| . . |
446363
|
[2] |
WASHER,5/16"
|
IH
.375 x .875 x .083 znd Superseded by part number: 80664
|
| . . |
607895R1
|
[2] |
WASHER
|
IH
17/32 x 1 x 11 ga Superseded by part number: 86624146
|
| 38. |
201650C1
|
[1] |
BAR
|
IH
LINK, knife connecting
|
| 39. |
667784R92
|
[1] |
COVER
|
IH
ASSY, knotter, regular for 440 Balers, special for 430 Balers
|
| 40. |
11309N
|
[2] |
SPACER
|
IH
knotter cover, regular for 440 Balers, special for 430 Balers
|
| . . |
19570R1
|
[2] |
BOLT,Hex, 1/4" - 20 x 5/8", Gr 2
|
IH
1/4 x 5/8 znd hex-hd mach Superseded by part number: 280641
|
| . . |
492-11025
|
[2] |
LOCK WASHER,1/4"
|
CAS
WASHER, LOCK, 1/4" Superseded by part number: 72187247, 80682
|
| . . |
120392
|
[2] |
WASHER,1/4", SAE
|
IH
9/32 x 5/8 x 16 ga C-Z Superseded by part number: 87361
|
| 41. |
667787R1
|
[1] |
SPRING
|
IH
knotter cover, regular for 440 Balers, special for 430 Balers
|
| . . |
110638
|
[2] |
RIVET
|
IH
3/16 x 5/16 b-hd solid
|
| . . |
18796R1
|
[1] |
BOLT,Hex, 7/16"-14 x 1 1/2", G2
|
IH
7/16 x 1-1/2 hex hd mach. Superseded by part number: 179862
|
| . . |
120383
|
[1] |
LOCK WASHER,Helical Spring, 7/16"
|
IH
WASHER, LOCK, 7/16" Superseded by part number: 81547
|
| . . |
21760R1
|
[1] |
WASHER,0.47" ID x 0.88" OD x 0.19" Thk
|
IH
15/32 x 7/8 x 7 ga., used w/knotter L.H. and R.H.
|
