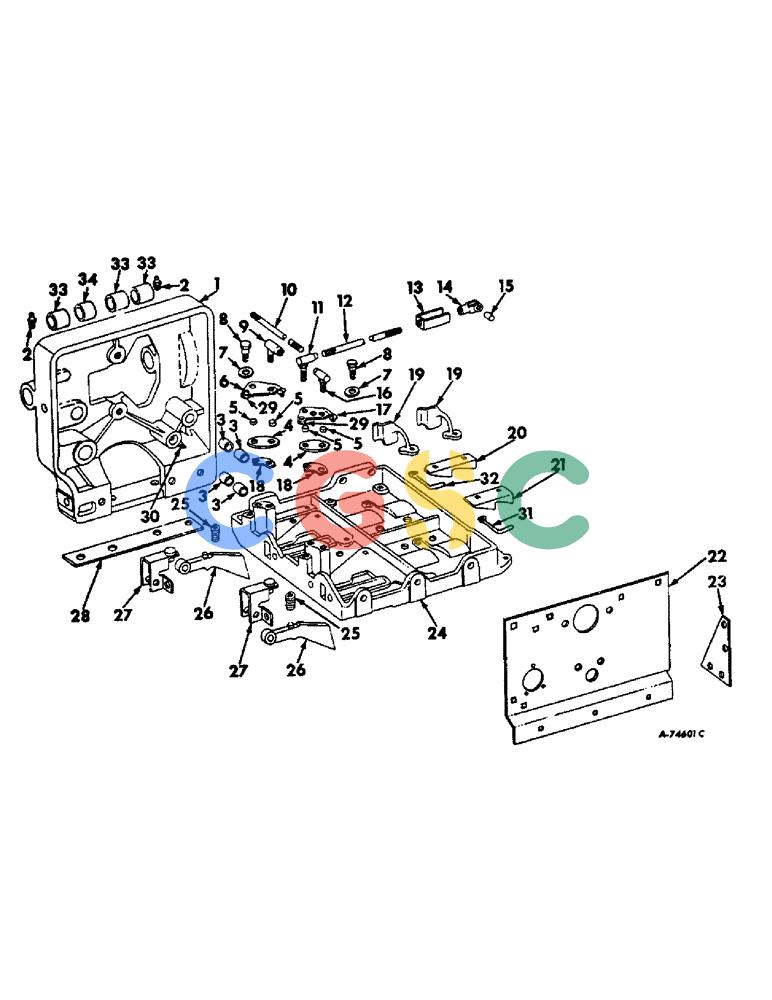

| 1. |
667810R21
|
[1] |
FRAME
|
IH
W/BUSHINGS, knotter drive
|
| . . |
18619R1
|
[1] |
BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 2
|
IH
5/8 x 2-1/4 znd hex-hd mach Superseded by part number: 271563
|
| . . |
18824R1
|
[1] |
BOLT,Hex, 5/8"-11 x 2 1/2", G2
|
IH
5/8 x 2-1/2 znd hex-hd mach Superseded by part number: 271564
|
| . . |
425-110
|
[2] |
5/8-18 znd hex.
|
|
| . . |
492-11062
|
[2] |
BEARING WASHER,5/8"
|
CAS
WASHER, LOCK, 5/8" Superseded by part number: 86729275
|
| . . |
21471R1
|
[1] |
WASHER
|
IH
21/32 x 1 x 11 ga C-Z Superseded by part number: 87613215
|
| . . |
18779R1
|
[2] |
BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2
|
IH
3/8 x 1-1/2 znd hex-hd mach Superseded by part number: 179843
|
| . . |
120377
|
[2] |
NUT,3/8" - 16, Gr 5
|
IH
Superseded by part number: 280136
|
| . . |
120382
|
[2] |
LOCK WASHER,Helical Spring, 3/8"
|
IH
WASHER, LOCK, 3/8" Superseded by part number: 80680
|
| . . |
17452R1
|
[1] |
BOLT,Hex, 1/2"-13 x 1 1/4", G2
|
IH
1/2 x 1-1/4 znd hex-hd mach Superseded by part number: 180175
|
| . . |
18497R1
|
[2] |
BOLT,Hex, 1/2"-13 x 1 3/4", G2
|
IH
1/2 x 1-3/4 znd hex-hd mach Superseded by part number: 179887
|
| . . |
120378
|
[2] |
NUT,Hex, 1/2" - 13, Gr 5
|
IH
NUT, 1/2"-13, G5 Superseded by part number: 280431
|
| . . |
120384
|
[3] |
WASHER,1/2"
|
IH
LOCK, 1/2" Superseded by part number: 116121
|
| 2. |
109461
|
[2] |
LUBE NIPPLE,1/8"-27 x .66 lg
|
IH
NIPPLE, LUBE, 1/8"-27 x .66 lg Superseded by part number: 80710
|
| 3. |
667811R1
|
[4] |
BUSHING
|
IH
trip arm stud
|
| 4. |
667234R1
|
[2] |
PLATE
|
IH
stripper finger guide
|
| . . |
181637
|
[2] |
|
NNA
SCREW, 3/8-24 x 1 znd hex-hd cap Superseded by part number: 181364, 181364, NLS
|
| . . |
120369
|
[2] |
NUT,3/8"-24, G5
|
IH
Superseded by part number: 86509310
|
| 5. |
667235R1
|
[4] |
SPACER
|
IH
guide plate
|
| 6. |
667269R91
|
[1] |
FINGER
|
IH
stripper cpt. R.
|
| 7. |
660466R1
|
[2] |
WASHER
|
IH
stripper pivot stud
|
| 8. |
656956R1
|
[2] |
STUD
|
IH
stripper pivot front
|
| . . |
22265R1
|
[2] |
WASHER
|
IH
17/32 x 1-1/4 x 22 ga C-Z Superseded by part number: 87613188
|
| 9. |
667237R91
|
[1] |
JOINT
|
IH
BALL JOINT, stripper connecting rod 3/8
|
| 10. |
656932R1
|
[1] |
ROD
|
IH
wire stripper connecting
|
| 11. |
659567R91
|
[1] |
JOINT TURNING
|
IH
BALL JOINT, stripper connecting rod 7/16
|
| . . |
667596R1
|
[1] |
NUT
|
IH
7/16-20 hex. lock
|
| . . |
120383
|
[1] |
LOCK WASHER,Helical Spring, 7/16"
|
IH
WASHER, LOCK, 7/16" Superseded by part number: 81547
|
| 12. |
656930R2
|
[1] |
ROD
|
IH
stripper actuating
|
| . . |
NLS
|
[2] |
NO LONGER SERVICED
|
BAS
7/16-20 znd hex.
|
| 13. |
658742R1
|
[1] |
CLEVIS COUPLING
|
IH
CLIP, stripper clevis pin
|
| 14. |
453505
|
[1] |
|
P
CLEVIS, stripper actuating rod, replaces 116537
|
| 15. |
658741R1
|
[1] |
PIN
|
IH
stripper clevis
|
| 16. |
667236R91
|
[1] |
CONNECTOR, ELEC
|
IH
BALL JOINT, stripper conn. rod
|
| 17. |
667230R91
|
[1] |
FINGER
|
IH
stripper cpt. L.
|
| 18. |
667233R1
|
[2] |
ANCHOR
|
IH
stripper finger
|
| . . |
156513
|
[4] |
SCREW,Cross Flat Hd, 3/8" - 16 x 1/2"
|
IH
fl-hd cross recess cd-pl 3/8
|
| . . |
472635R1
|
[4] |
WASHER
|
CAS
19/32 x 1 x 16 ga C-Z Superseded by part number: 495-81244
|
| 19. |
674724R1
|
[2] |
INSERT
|
IH
twister frame
|
| . . |
19020R1
|
[4] |
PLOW BOLT,#3, 3/8" - 16 x 1 1/4", Gr 2
|
IH
BOLT, 3/8 x 1-1/4 znd No. 3 plow Superseded by part number: 19031R1
|
| 20. |
495929R2
|
[1] |
WEDGE
|
IH
hay retainer narrow
|
| . . |
17351R1
|
[3] |
CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2
|
IH
BOLT, 3/8 x 1 C-Z sq-nk crg Superseded by part number: 88682
|
| . . |
18864R1
|
[1] |
BOLT, 3/8 x 1-1/4 C-Z sq-nk crg
|
|
| 21. |
495930R1
|
[1] |
WEDGE
|
IH
hay retainer wide
|
| . . |
18697R1
|
[2] |
CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 3/4", Gr 2
|
IH
BOLT, 7/16 x 1-3/4 znd sq-nk crg Superseded by part number: 86508778
|
| . . |
271501
|
[2] |
SOCKET
|
NNA
NUT, 7/16-14 znd hex.
|
| 22. |
674346R2
|
[1] |
SUPPORT
|
IH
twister shaft bearing Superseded by part number: 1281314C1
|
| . . |
17496R1
|
[3] |
BOLT,Hex, 3/8" - 16 x 1 3/4"
|
IH
3/8-16 x 1-3/4 hex-hd mach
|
| . . |
Q1504
|
[3] |
WASHER
|
IH
13/32 x 7/8 x 16 ga Superseded by part number: 495-21044
|
| . . |
103321
|
[3] |
LOCK WASHER,3/8"
|
IH
WASHER, LOCK, 3/8" Superseded by part number: 80680
|
| . . |
102635
|
[3] |
NUT,3/8"-16, G5
|
IH
Superseded by part number: 280136
|
| 23. |
667839R2
|
[1] |
SUPPORT
|
IH
PLATE, twister shaft bearing support
|
| . . |
18495R1
|
[2] |
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2
|
IH
3/8 x 1-1/4 znd hex-hd mach Superseded by part number: 180124
|
| 24. |
664754R4
|
[1] |
PLATE
|
IH
wire twister base
|
| . . |
469668R1
|
[1] |
WASHER
|
IH
13/32 x 3/4 x 16 ga C-Z, used on 440 Baler Superseded by part number: 86632580
|
| . . |
18684R1
|
[2] |
BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2
|
IH
3/8 x 1-1/4 znd sq-nk crg Superseded by part number: 550796R1
|
| . . |
19021R1
|
[2] |
CARRIAGE BOLT,#3, 3/8" - 16 x 1 1/2", Gr 2
|
IH
BOLT, 3/8 x 1-1/2 znd No. 3 plow Superseded by part number: 419-3624
|
| . . |
18685R1
|
[1] |
CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2
|
IH
BOLT, 3/8 x 1-1/2 znd sq-nk crg Superseded by part number: 280552
|
| . . |
19022R1
|
[1] |
BOLT,#3, 3/8" - 16 x 1 3/4"
|
IH
3/8 x 1-3/4 znd No. 3 plow, used on 440 Baler Superseded by part number: 419-3628
|
| 25. |
665192R1
|
[2] |
SPRING
|
IH
hay retainer
|
| . . |
110638
|
[9] |
RIVET
|
IH
3/8 C-Z med lock
|
| 26. |
667449R1
|
[2] |
RETAINER
|
IH
top hay
|
| . . |
21964R1
|
[2] |
HEADED PIN,3/8" x 1 1/2"
|
IH
PIN, 3/8 x 1-1/2 C-Z std hd Superseded by part number: 439-1624
|
| . . |
648002
|
[2] |
1/8" x 3/4"
|
KNIFE
|
| 27. |
667827R11
|
[2] |
|
P
BRACKET, top hay retainer cpt.
|
| . . |
18778R1
|
[2] |
SCREW,Hex, 3/8"-16 x 3/4", G2
|
IH
BOLT, 3/8 x 3/4 znd hex-hd mach Superseded by part number: 180120
|
| 28. |
200538C1
|
[1] |
|
P
SPACER, twister drive frame
|
| 29. |
656945R1
|
[2] |
BEARING
|
IH
BUSHING, stripper pivot
|
| 30. |
87569
|
[1] |
LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive
|
PA
FITTING, 1/4-28, 45 deg angle self tap lub
|
| 31. |
671121R1
|
[1] |
DEFLECTOR
|
IH
wire twister LH
|
| 32. |
671122R1
|
[1] |
DEFLECTOR
|
IH
wire twister RH
|
| 33. |
674263R1
|
[3] |
BUSHING
|
IH
packer crank
|
| 34. |
663364R1
|
[1] |
BUSHING
|
IH
packer crank Superseded by part number: 667844R1
|
