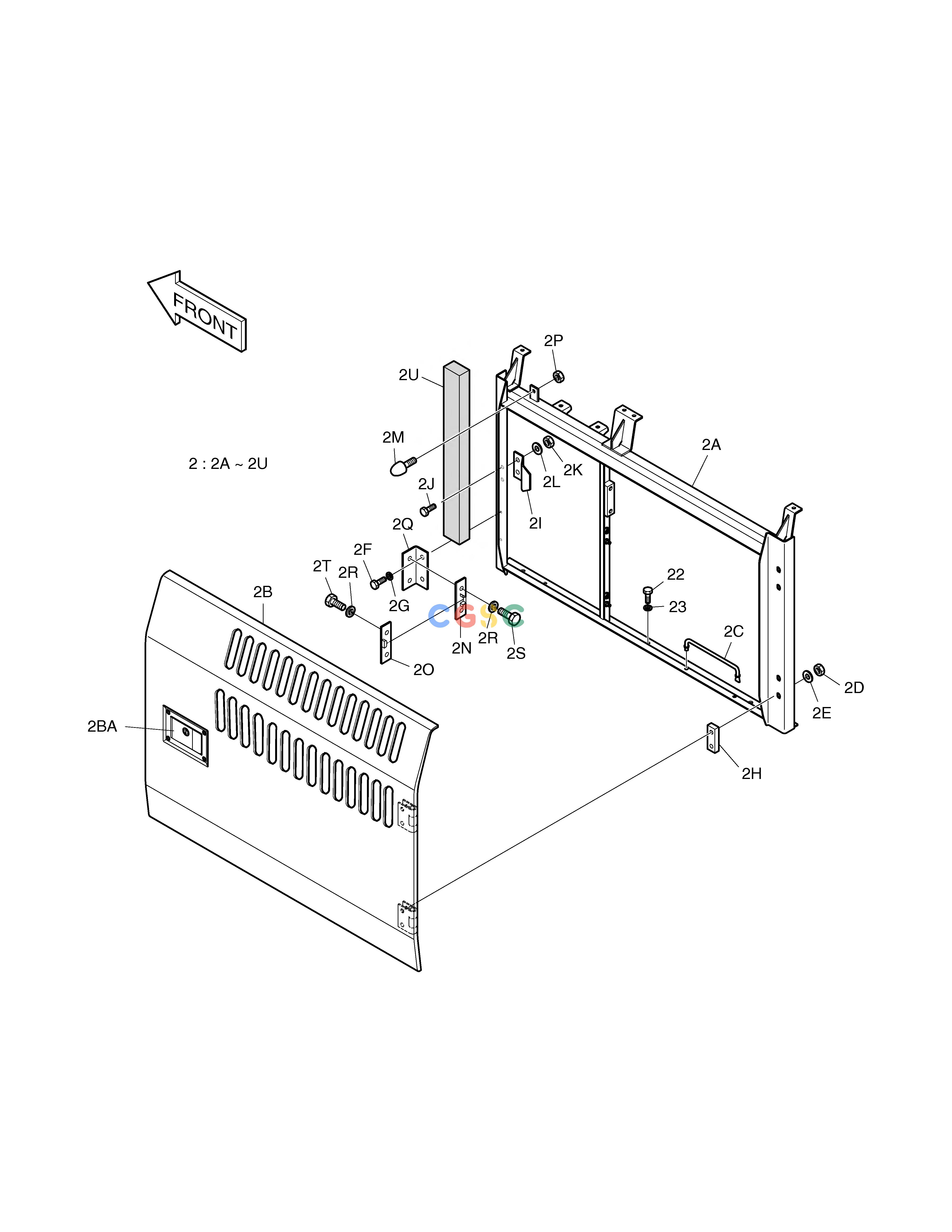

斗山零件查询COVER(1) SOLAR 185W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
356 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
621-02494
|
[-] |
COVER ASS'Y
|
|
| 2. |
K1029535
|
[1] |
SIDE DOOR ASS'Y(L.H)
|
|
| 22. |
S0515253
|
[5] |
. BOLT
|
|
| 23. |
2114-1058D30
|
[5] |
. WASHER
|
|
| 2A. |
2197-2623C
|
[1] |
SUPPORT
|
|
| 2B. |
K1029512
|
[1] |
DOOR;SIDE
|
|
| 2BA. |
K1006422
|
[1] |
.. LOCK
|
|
| 2C. |
2145-1237
|
[1] |
STAY
|
|
| 2D. |
S4012733
|
[4] |
NUT
|
|
| 2E. |
2114-1058D30
|
[4] |
. WASHER
|
|
| 2F. |
S0508753
|
[2] |
BOLT M8X1.25X18
|
|
| 2G. |
S5010513
|
[2] |
WASHER
|
|
| 2H. |
2891-1101
|
[2] |
SEAT;SCREW
|
|
| 2I. |
621-01575
|
[1] |
PLATE;STOPPER
|
|
| 2J. |
S0512053
|
[2] |
BOLT
|
|
| 2K. |
S4012633
|
[2] |
NUT
|
|
| 2L. |
2114-1058D10
|
[2] |
WASHER
|
|
| 2M. |
2161-2226
|
[1] |
STOPPER;RUBBER
|
|
| 2N. |
2161-9052
|
[1] |
STOPPER;PLATE
|
|
| 2O. |
2161-9053
|
[1] |
STOPPER;RUBBER
|
|
| 2P. |
S4012633
|
[1] |
NUT
|
|
| 2Q. |
2116-1522
|
[1] |
PLATE
|
|
| 2R. |
S5010313
|
[4] |
WASHER
|
|
| 2S. |
S0504553
|
[2] |
BOLT
|
|
| 2T. |
S0504453
|
[2] |
BOLT
|
|
| 2U. |
2161-2166A
|
[1] |
POLYURETHANE FOAM
|
|
