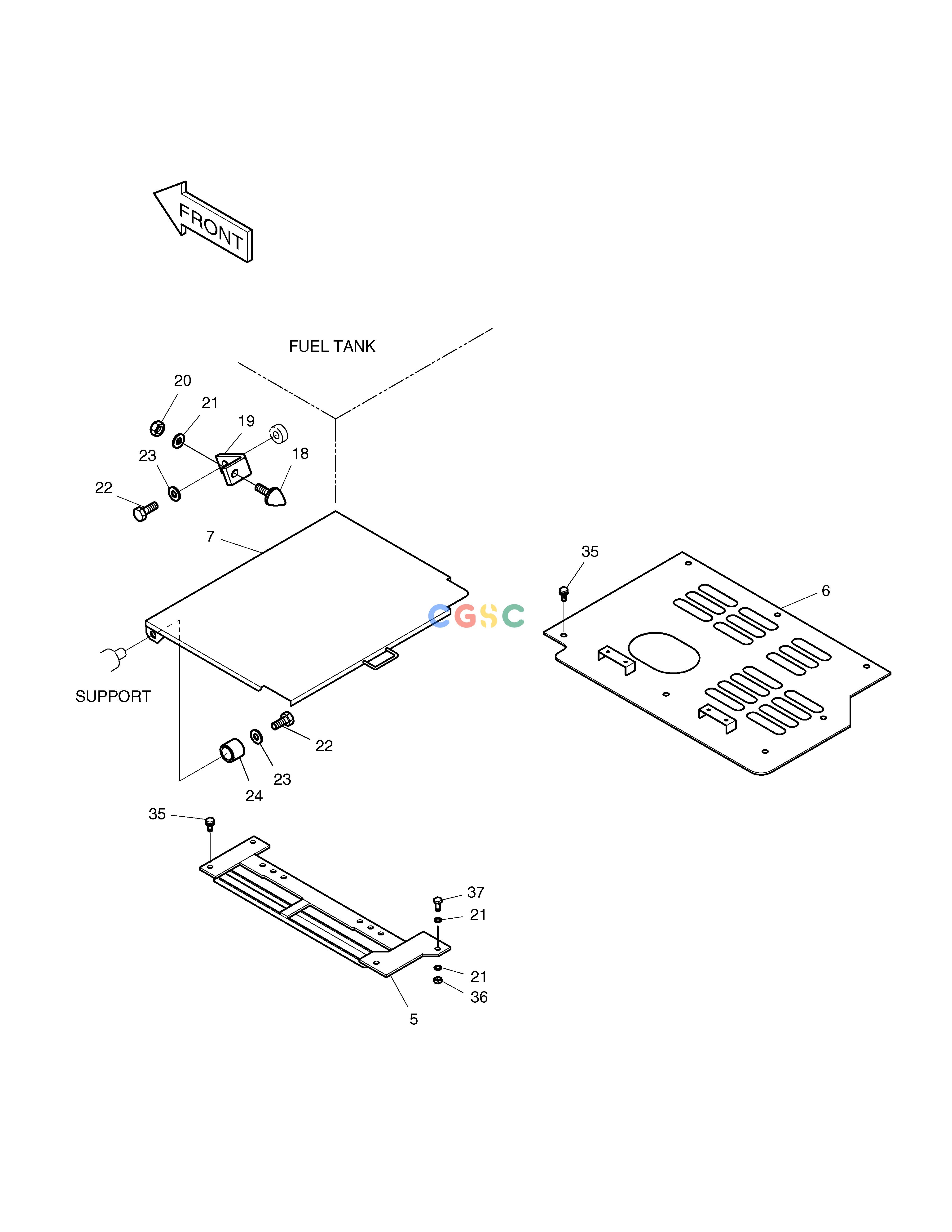

斗山零件查询COVER(3) SOLAR 185W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
280 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
621-02494
|
[-] |
COVER ASS'Y
|
|
| 18. |
2161-2226
|
[1] |
STOPPER;RUBBER
|
|
| 19. |
2891-1374
|
[1] |
PLATE
|
|
| 20. |
S4012633
|
[1] |
NUT
|
|
| 21. |
2114-1058D10
|
[3] |
WASHER
|
|
| 22. |
S0515253
|
[2] |
. BOLT
|
|
| 23. |
2114-1058D30
|
[2] |
. WASHER
|
|
| 24. |
2114-1183D13
|
[1] |
COLLAR
|
|
| 35. |
2120-2196D3
|
[10] |
BOLT;SET M10X1.5X25
|
|
| 36. |
S4012633
|
[1] |
NUT
|
|
| 37. |
S0512253
|
[1] |
BOLT M10X1.5X30
|
|
| 5. |
2197-2605A
|
[1] |
SUPPORT
|
|
| 6. |
2627-1859
|
[1] |
COVER
|
|
| 7. |
2627-1861A
|
[1] |
COVER
|
|
