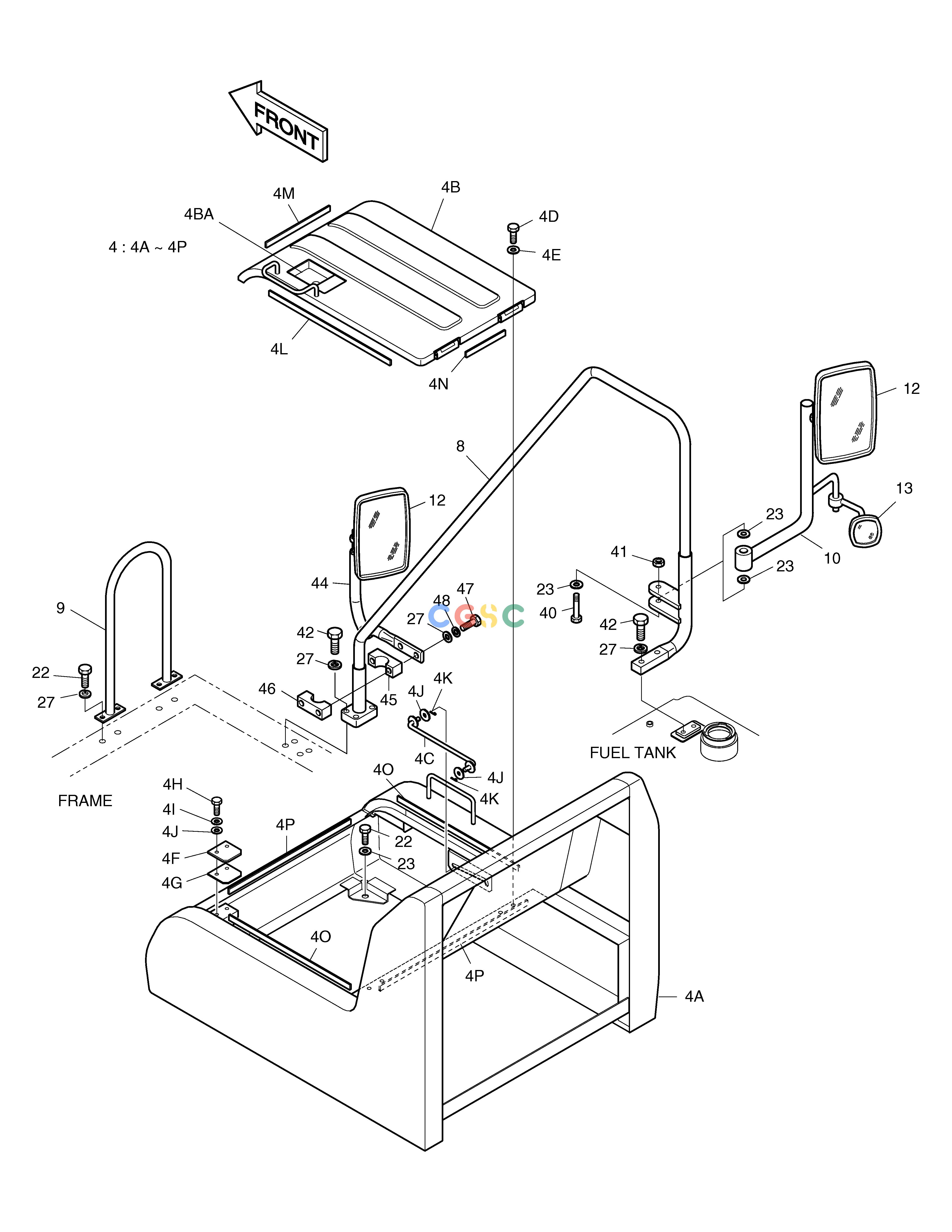

斗山零件查询COVER(4) SOLAR 185W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
652 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
621-02494
|
[-] |
COVER ASS'Y
|
|
| 10. |
K1002991B
|
[1] |
STAY
|
|
| 12. |
903-00068
|
[2] |
MIRROR
|
|
| 13. |
2903-6005
|
[1] |
MIRROR;UNDER
|
|
| 22. |
S0515253
|
[8] |
. BOLT
|
|
| 23. |
2114-1058D30
|
[7] |
. WASHER
|
|
| 27. |
S5010713
|
[12] |
WASHER;PLAIN
|
|
| 4. |
621-02497G
|
[1] |
BATTERY COVER ASS'Y
|
|
| 40. |
S0561553
|
[1] |
BOLT M12X1.75X90
|
|
| 41. |
S4012733
|
[1] |
NUT
|
|
| 42. |
S0560653
|
[6] |
BOLT M12X1.75X45
|
|
| 44. |
145-00132A
|
[1] |
STAY
|
|
| 45. |
124-00216
|
[1] |
CLAMP
|
|
| 46. |
124-00217
|
[1] |
CLAMP
|
|
| 47. |
S0561253
|
[2] |
BOLT M12X1.75X75
|
|
| 48. |
S5102703
|
[2] |
WASHER
|
|
| 4A. |
621-02498A
|
[1] |
COVER;BATTERY
|
|
| 4B. |
K1007319
|
[1] |
COVER
|
|
| 4BA. |
K1006422
|
[1] |
.. LOCK
|
|
| 4C. |
2145-1243
|
[1] |
. STAY
|
|
| 4D. |
S0512053
|
[4] |
BOLT
|
|
| 4E. |
S5010613
|
[4] |
WASHER
|
|
| 4F. |
2621-3003A
|
[1] |
. PLATE
|
|
| 4G. |
2114-1727A
|
[1] |
. SHIM
|
|
| 4H. |
S0555753
|
[2] |
BOLT M8X1.25X25
|
|
| 4I. |
S5010513
|
[2] |
WASHER
|
|
| 4J. |
2114-1058D29
|
[2] |
WASHER
|
|
| 4K. |
2705-9002
|
[2] |
PIN
|
|
| 4L. |
NA00268
|
[2] |
BUSHING
|
|
| 4M. |
NA00268
|
[1] |
BUSHING
|
|
| 4N. |
NA00268
|
[1] |
BUSHING
|
|
| 4O. |
NA00268
|
[2] |
BUSHING
|
|
| 4P. |
NA00268
|
[2] |
BUSHING
|
|
| 8. |
145-00113A
|
[1] |
STAY
|
|
| 9. |
2145-1168
|
[1] |
STAY
|
|
