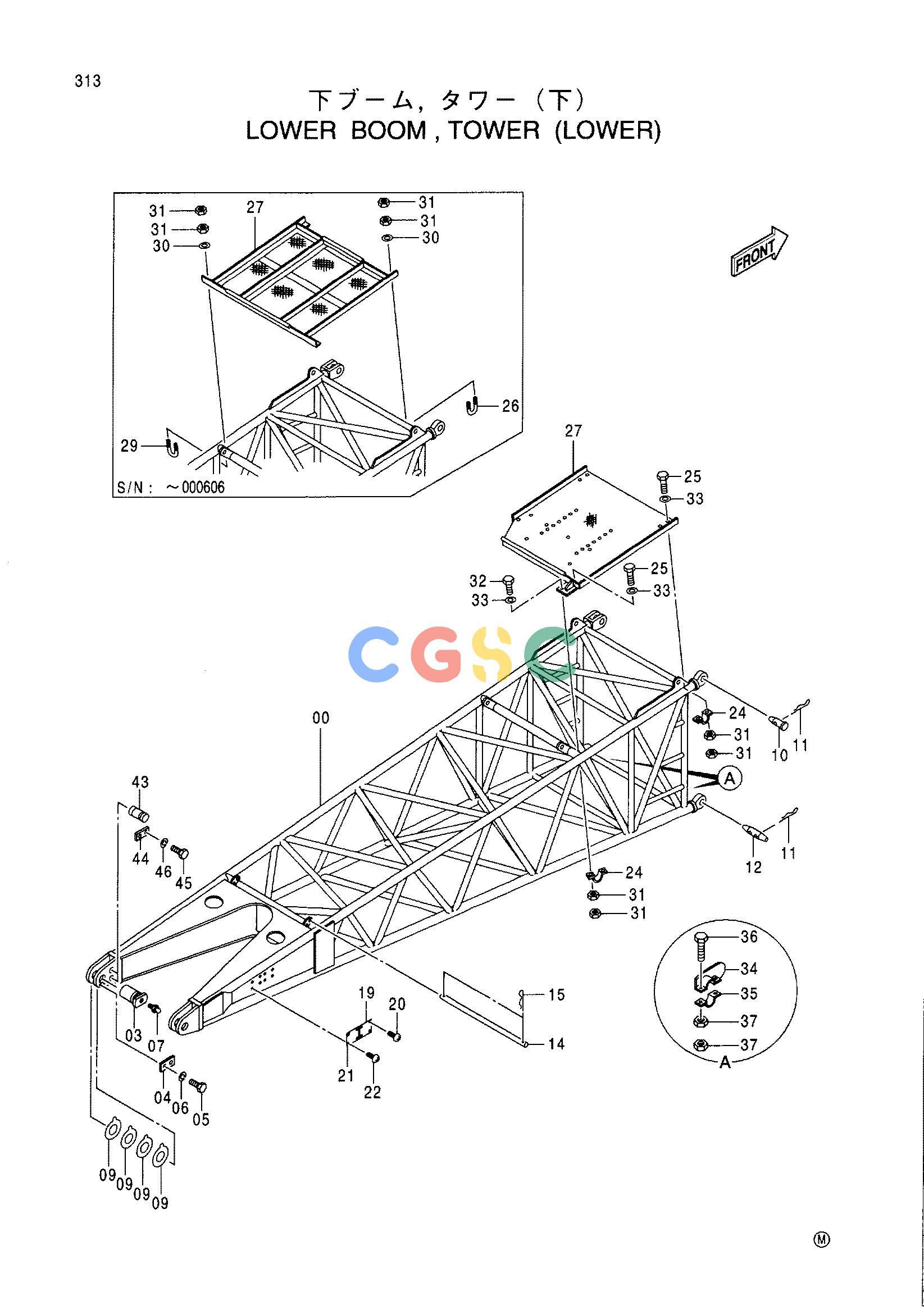

日立零件查询（CX1000）LOWER BOOM, TOWER (LOWER) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
472 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 5007815 | [1] | BOOM;LOWER | |
| 03. | 3083844 | [2] | AXLE | |
| 04. | 4415602 | [2] | PLATE;LOCK | |
| 05. | J932045 | [4] | BOLT | |
| 06. | A590920 | [4] | WASHER;SPRING | |
| 07. | J75481 | [2] | FITTING;GREASE | |
| 09. | 4456085 | [16] | SHIM 1.6 | |
| 10. | 4046619 | [2] | PIN | |
| 11. | 4043750 | [6] | PIN;LOCK | |
| 12. | 4112797 | [2] | PIN | |
| 14. | 4108495 | [1] | PIPE | |
| 15. | A768063 | [2] | PIN;SPLIT | |
| 19. | +++++++ | [1] | NAME-PLATE | |
| 20. | M492564 | [4] | SCREW;DRIVE | |
| 21. | 4053262 | [1] | NAME-PLATE | |
| 22. | M492564 | [4] | SCREW;DRIVE | |
| 24. | 4461639 | [4] | CLAMP | |
| 25. | J901040 | [7] | BOLT | |
| 26. | 4234259 | [2] | BOLT;U | |
| 27. | 8069285 | [1] | GUARD | |
| 27. | 6020448 | [1] | GUARD | |
| 29. | 4227301 | [2] | BOLT;U | |
| 30. | A590110 | [8] | WASHER;PLANE | |
| 31. | J950010 | [16] | NUT | |
| 32. | J901035 | [1] | BOLT | |
| 33. | J217083 | [8] | WASHER | |
| 34. | 9747117 | [2] | STOPPER | |
| 35. | 4374271 | [2] | CLAMP;PIPE | |
| 36. | J901030 | [4] | BOLT | |
| 37. | J950010 | [8] | NUT | |
| 43. | 4456884 | [4] | PIN | |
| 44. | X4245 | [4] | PLATE;LOCK | |
| 45. | J901025 | [8] | BOLT | |
| 46. | A590910 | [8] | WASHER;SPRING | |
