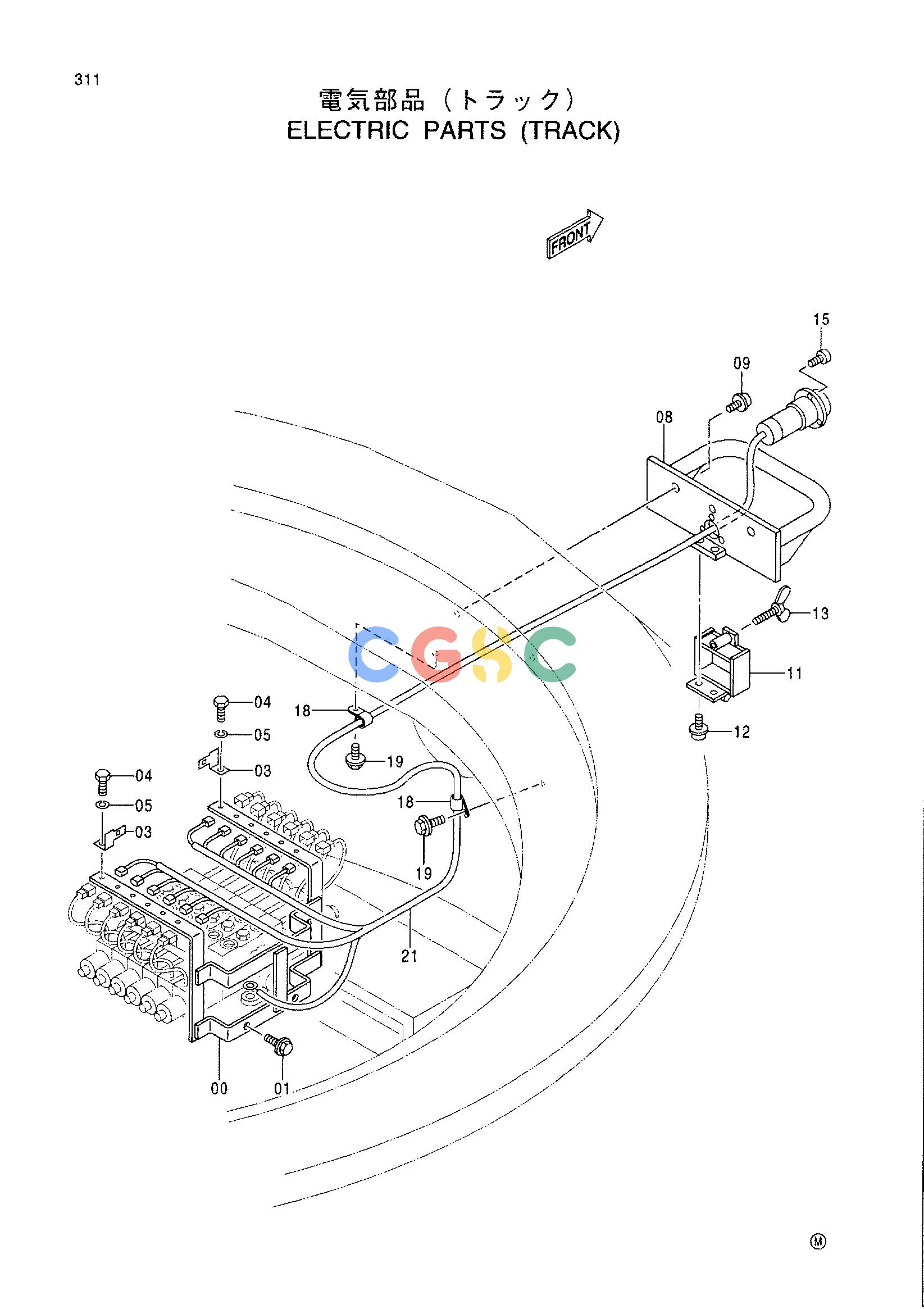

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 00. | 8084545 | [1] | BRACKET | |
| 01. | J011020 | [2] | BOLT;SEMS | |
| 03. | 4252767 | [12] | BRACKET | |
| 04. | J900610 | [12] | BOLT | |
| 05. | A590906 | [12] | WASHER;SPRING | |
| 08. | 8084548 | [1] | BRACKET | |
| 09. | J011225 | [2] | BOLT;SEMS | |
| 11. | 8075763 | [1] | COVER | |
| 12. | J450510 | [2] | SCREW;SEMS | |
| 13. | M360840 | [1] | BOLT;WING | |
| 15. | M470310 | [3] | SCREW | |
| 18. | 4190277 | [2] | CLIP | |
| 19. | J011020 | [2] | BOLT;SEMS | |
| 21. | 2044419 | [1] | HARNESS;WIRE |
