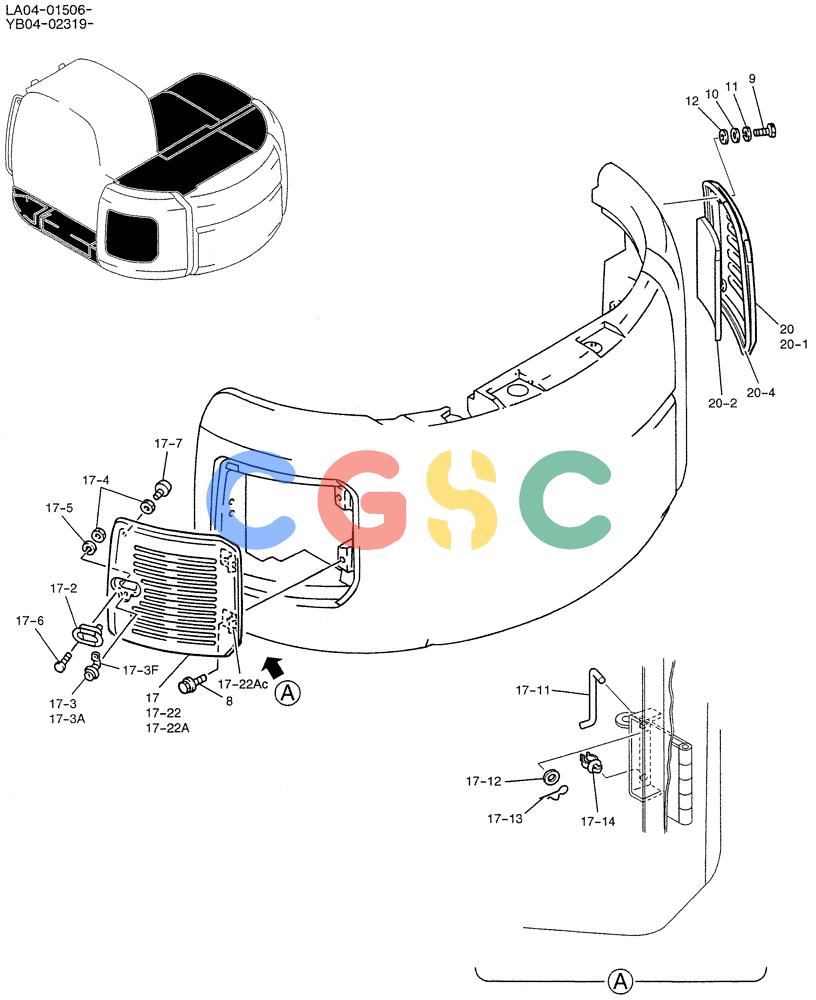

纽荷兰零件查询(E200SR) - CRAWLER EXCAVATOR BTW YB04-02319 - YB04-02550 (01-044) - GUARD INSTAL (COUNTERWEIGHT) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
506 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YF21C00001FE | [1] | GUARD INSTAL | |
| 8. | ZM32C12025 | [2] | BOLT | KOBSEMS |
| 9. | HS18C10025G1 | [4] | SCREW | KOBCAP Superseded by part number: ZS18C10025 |
| 10. | HY25X11024G1 | [4] | WASHER | KOB |
| 11. | YT21C01172P1 | [4] | LOCK WASHER | KOB |
| 12. | YT21C01187P2 | [4] | WASHER | KOB |
| 17. | YN21C01452F9 | [1] | COVER | KOBASSY |
| 17-2. | PM21C01109P1 | [1] | LOCK | KOB |
| 17-3. | PM21C01268F1 | [1] | LOCK | KOBASSY |
| 17-3A. | YR22C01025P1 | [1] | LOCK | KOB Superseded by part number: YR22C01025P2 |
| 17-3F. | PM21C01269P1 | [1] | PLATE | KOB |
| 17-4. | ZN18C05004 | [6] | NUT | KOB |
| 17-5. | ZW26X05000 | [4] | LOCK WASHER | KOBLOCK |
| 17-6. | PH22C01023P1 | [4] | BOLT | KOB |
| 17-7. | 2416T6682 | [2] | RUBBER BAND | KOBCUSHION |
| 17-11. | YF21C01004P1 | [1] | STAY | KOBSTAY |
| 17-12. | ZW16X08000 | [1] | WASHER | KOB |
| 17-13. | 2419R9D2 | [1] | COTTER PIN | KOBSNAP |
| 17-14. | YR21C01123P1 | [1] | COLLAR | KOB |
| 17-22. | YF21C01003P2 | [1] | COVER | KOB |
| 17-22A. | YN21C01611P3 | [1] | COVER | KOB |
| 17-22AC. | YT21C01027P1 | [2] | HINGE | KOB |
| 20. | YB21C01075F3 | [1] | GUARD | KOBASSY |
| 20-1. | YN21C01610P2 | [1] | COVER | KOB |
| 20-4. | YZ21C01044D9 | [1] | INSULATING PANEL | KOBSTRIP, WEATHER |
