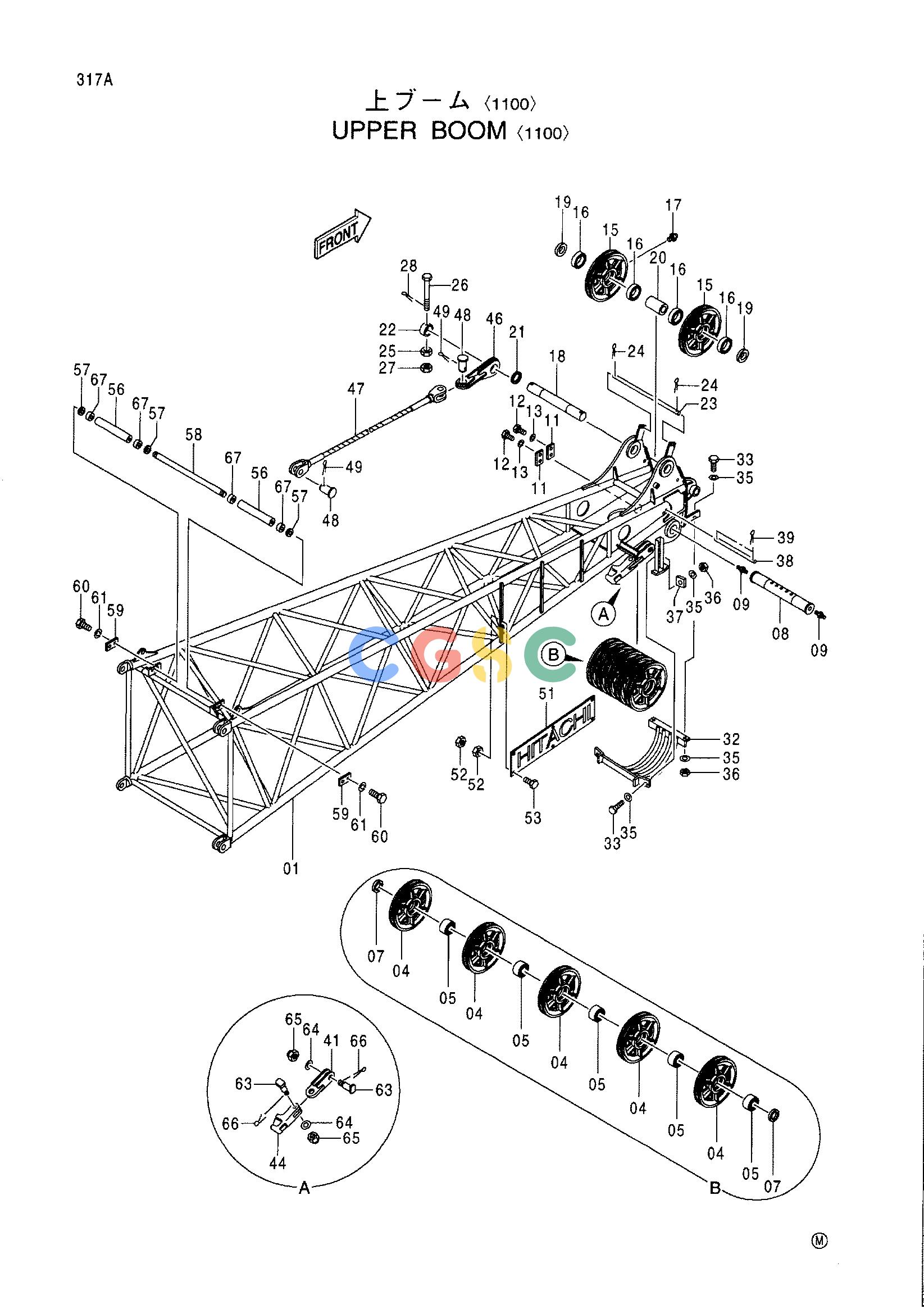

日立零件查询（CX1000）UPPER BOOM <1100> Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
497 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | 5007816 | [1] | BOOM;UPPER | |
| 04. | 3080920 | [5] | SHEAVE | |
| 05. | 4361339 | [5] | BRG.;ROL. | |
| 07. | 4232166 | [2] | SPACER | |
| 08. | 3061241 | [1] | AXLE | |
| 09. | J75482 | [2] | FITTING;GREASE | |
| 11. | X4248 | [2] | PLATE;LOCK | |
| 12. | J932035 | [4] | BOLT | |
| 13. | A590920 | [4] | WASHER;SPRING | |
| 15. | 3090512 | [2] | SHEAVE | |
| 16. | 4162528 | [4] | BRG.;BALL | |
| 17. | J75481 | [2] | FITTING;GREASE | |
| 18. | 4456868 | [1] | AXLE | |
| 19. | 4327339 | [2] | SPACER | |
| 20. | 4389705 | [1] | SPACER | |
| 21. | 4327338 | [4] | SPACER | |
| 22. | 4337650 | [2] | COLLAR | |
| 23. | 4346608 | [1] | GUIDE;ROPE | |
| 24. | A768045 | [2] | PIN;SPLIT | |
| 25. | J953020 | [2] | NUT | |
| 26. | 4328228 | [2] | BOLT | |
| 27. | M642022 | [2] | NUT;CASTLE | |
| 28. | A764040 | [2] | PIN;SPLIT | |
| 32. | 7020388 | [1] | GUIDE;ROPE | |
| 33. | J901240 | [4] | BOLT | |
| 35. | 449490 | [8] | WASHER | |
| 36. | M660012 | [4] | NUT;U | |
| 37. | J21684 | [2] | WASHER;SLOPE | |
| 38. | 4232002 | [1] | GUIDE;ROPE | |
| 39. | A765040 | [2] | PIN;SPLIT | |
| 41. | 8016217 | [1] | END;FORK | |
| 44. | 2011693 | [1] | SOCKET;ROPE | |
| 46. | 8084896 | [2] | LINK | |
| 47. | 8083112 | [2] | ROPE;PENDANT | |
| 48. | 4460093 | [4] | PIN | |
| 49. | A761090 | [4] | PIN;SPLIT | |
| 51. | 4343269 | [2] | NAME-PLATE | |
| 52. | J950010 | [24] | NUT | |
| 53. | J901030 | [12] | BOLT | |
| 56. | 4449104 | [2] | ROLLER;GUIDE | |
| 57. | 4047622 | [3] | SPACER | |
| 58. | 4449106 | [1] | AXLE | |
| 59. | X4246 | [2] | PLATE;LOCK | |
| 60. | J901220 | [4] | BOLT | |
| 61. | A590912 | [4] | WASHER;SPRING | |
| 63. | 4387083 | [2] | PIN | |
| 64. | 4114408 | [2] | WASHER | |
| 65. | 4137247 | [2] | NUT;CASTLE | |
| 66. | A766063 | [2] | PIN;SPLIT | |
| 67. | 4457240 | [4] | BRG.;BALL | |
