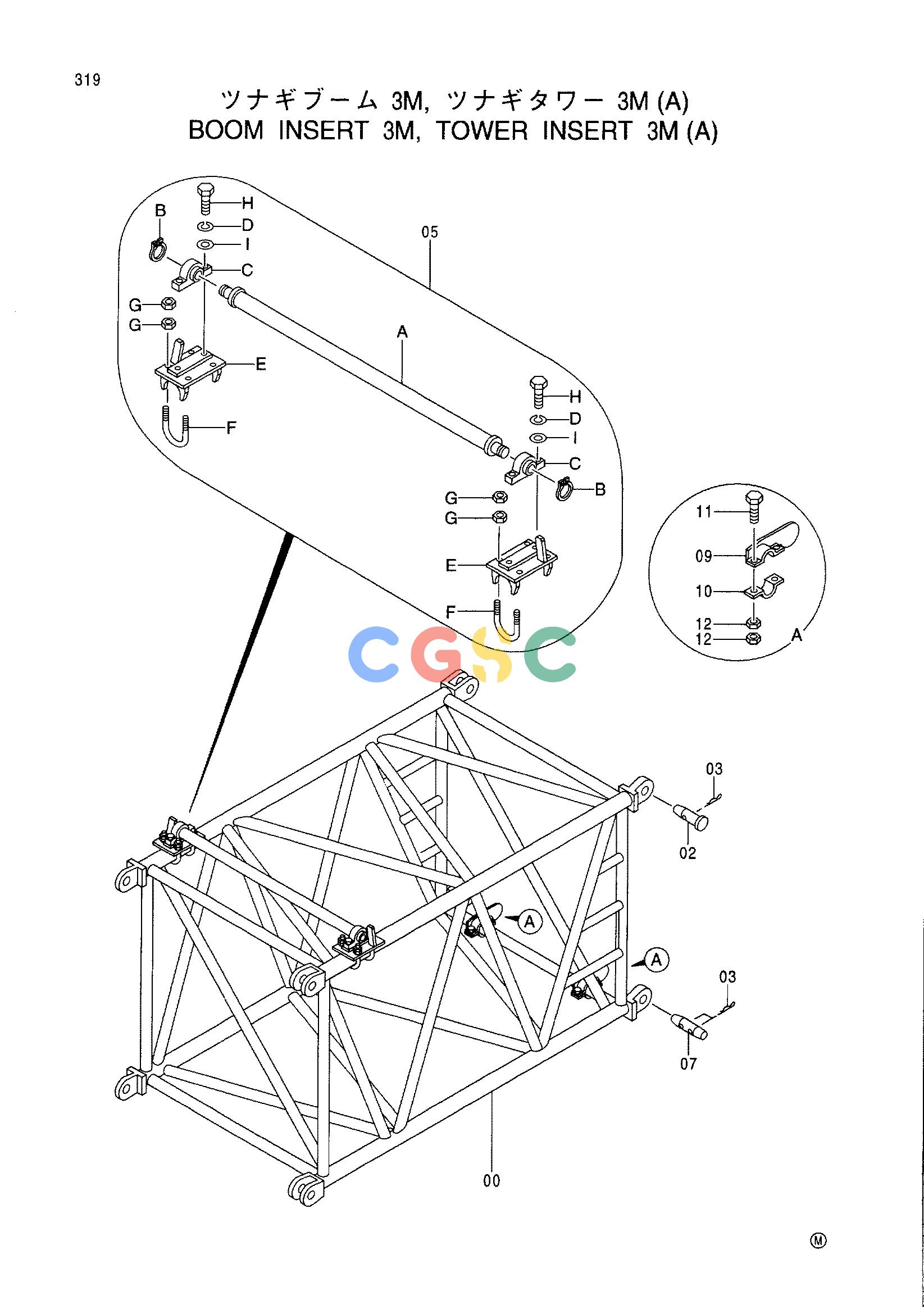

日立零件查询（CX1000）BOOM INSERT 3M, TOWER INSERT 3M (A) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
573 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 9151353 | [1] | BOOM INSERT ASS'Y | |
| 00. | 7031326 | [1] | BOOM;INSERT | |
| 02. | 4046619 | [2] | PIN | |
| 03. | 4043750 | [6] | PIN;LOCK | |
| 05. | 9152747 | [1] | ROLLER;GUIDE | |
| 05A. | 9749356 | [1] | ROLLER | |
| 05B. | 991342 | [2] | RING;RETAINING | |
| 05C. | 4420385 | [2] | BRG.;UNIT | |
| 05D. | A590914 | [4] | WASHER;SPRING | |
| 05E. | 8071630 | [2] | BRACKET | |
| 05F. | 4170580 | [4] | BOLT;U | |
| 05G. | J950012 | [16] | NUT | |
| 05H. | J901440 | [4] | BOLT | |
| 05I. | A590114 | [4] | WASHER;PLANE | |
| 07. | 4112797 | [2] | PIN | |
| 09. | 9748475 | [2] | STOPPER | |
| 10. | 4386982 | [2] | CLAMP;PIPE | |
| 11. | J901030 | [4] | BOLT | |
| 12. | J950010 | [8] | NUT | |
