纽荷兰零件查询(E200SR) - CRAWLER EXCAVATOR BTW YB04-02319 - YB04-02550 (01-050) - BATTERY INSTAL New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
824 次

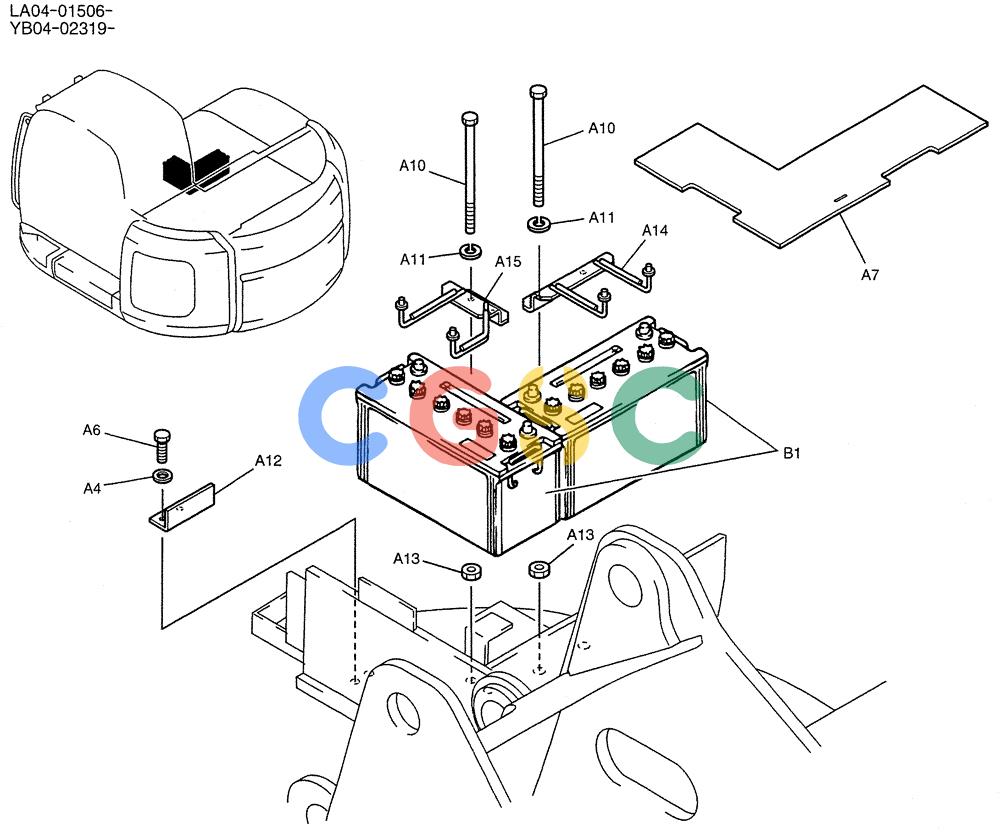

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YB72E00001F1 | [1] | BATTERY INSTAL | |
| A4. | ZW16X10000 | [2] | WASHER | KOB |
| A6. | ZS18C10025 | [2] | SCREW,Hex, M10 x 25mm | KOB |
| A7. | YB72E01001P1 | [1] | INSULATING PANEL | KOBRUBBER |
| A10. | R20T0084D3 | [4] | SCREW | KOBCAP |
| A11. | ZW26X10000 | [4] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| A12. | YB72E01007P1 | [1] | ANGLE | KOB |
| A13. | ZN18C10008 | [4] | NUT | KOBM10x1.50mm |
| A14. | YB72E01008P1 | [1] | SUPPORT | KOB |
| A15. | YB72E01009P1 | [1] | SUPPORT | KOB |
| B1. | YN72S00004P1 | [2] | WET BATTERY | KOB(130E41R) |
