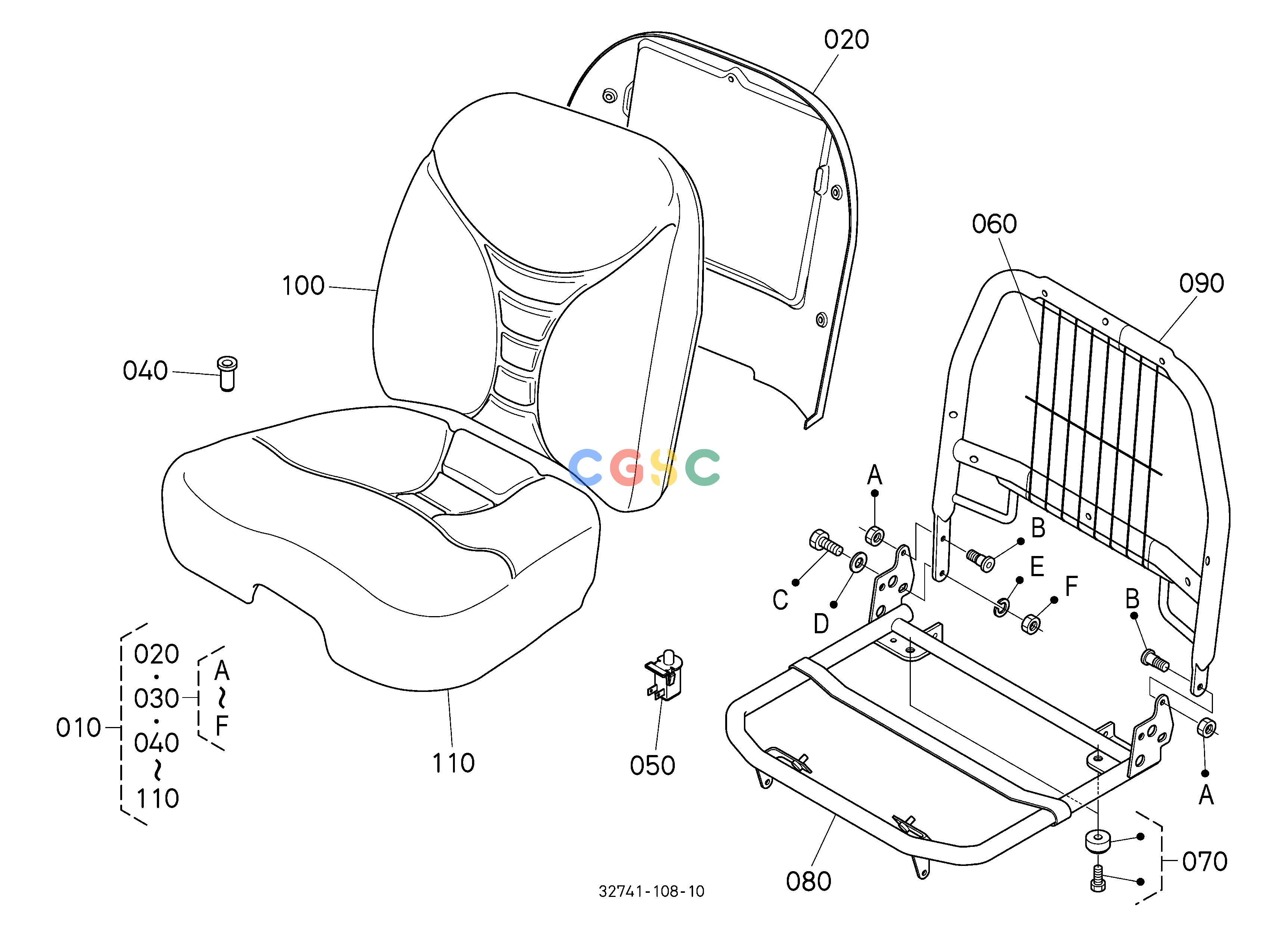

久保田零件查询M22100 SEAT [COMPONENT PARTS] HOOD/BONNETEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
898 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3278147700
|
[1] |
ASSY SEAT
|
0.0000(lbs); 0.000
|
| 020. |
3278147710
|
[1] |
PANEL,KIT.SEAT BACK
|
0.0000(lbs); 0.000
|
| 030. |
3278147720
|
[1] |
BOLT,KIT.BACK REST PIVOT
|
0.0000(lbs); 0.000
|
| 040. |
3278147730
|
[1] |
DRAIN,KIT.WATER
|
0.0000(lbs); 0.000
|
| 050. |
3278147740
|
[1] |
SWITCH,KIT.SEAT
|
0.0000(lbs); 0.000
|
| 060. |
3278147750
|
[1] |
SUPPORT,SEAT BACK
|
0.0000(lbs); 0.000
|
| 070. |
3278147760
|
[1] |
DAMPENER,KIT.RUBBER
|
0.0000(lbs); 0.000
|
| 080. |
3278147660
|
[1] |
FRAME,KIT.SEAT BOTTOM
|
0.0000(lbs); 0.000
|
| 090. |
3278147670
|
[1] |
FRAME,KIT.BACK
|
0.0000(lbs); 0.000
|
| 100. |
3278147680
|
[1] |
CUSHION,KIT.SEAT BACK
|
0.0000(lbs); 0.000
|
| 110. |
3278147690
|
[1] |
CUSHION,KIT.SEAT BOTTOM
|
0.0000(lbs); 0.000
|
