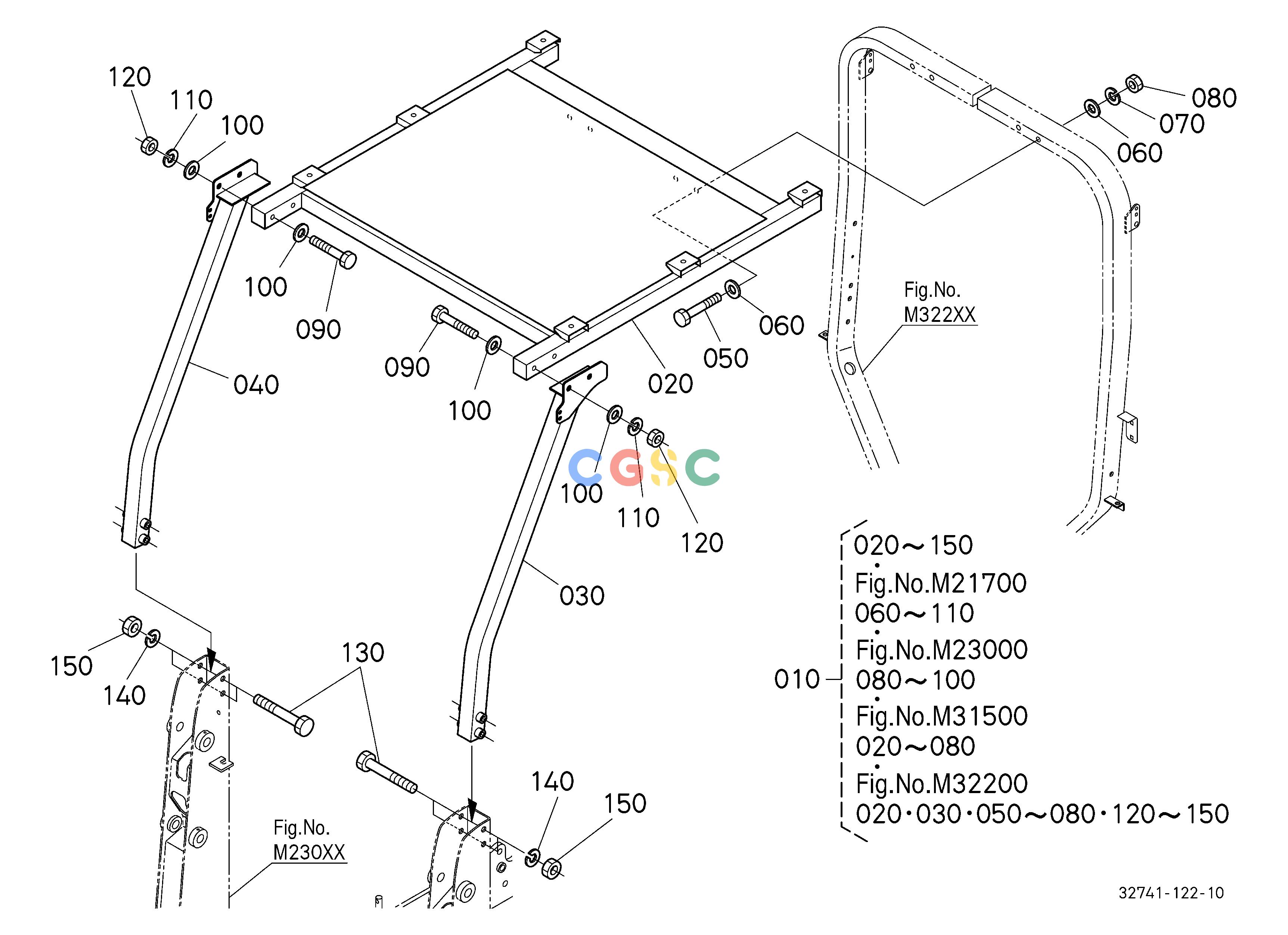

久保田零件查询M32100 ROPS/FOPS (FRONT) HOOD/BONNETEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
608 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
---- |
[1] |
FCB-26 ROPS KIT
|
0.0000(lbs); 0.000
|
| 020. |
---- |
[1] |
COMP.FRAME RH
|
0.0000(lbs); 0.000
|
| 030. |
---- |
[1] |
FRAME,COMP. F/LH
|
0.0000(lbs); 0.000
|
| 040. |
---- |
[1] |
COMP.FRAME FRONT RH
|
0.0000(lbs); 0.000
|
| 050. |
0117351202
|
[4] |
HEX.BOLT
|
0.2200(lbs); 0.100
|
| 060. |
0401550120
|
[8] |
WASHER,PLAIN
|
0.0440(lbs); 0.020
|
| 070. |
0451250120
|
[4] |
WASHER,SPRING LOCK
|
0.0066(lbs); 0.003
|
| 080. |
0217650120
|
[4] |
HEX.NUT
|
0.0220(lbs); 0.010
|
| 090. |
0117351280
|
[4] |
HEX.BOLT
|
0.2200(lbs); 0.100
|
| 100. |
0401550120
|
[8] |
WASHER,PLAIN
|
0.0440(lbs); 0.020
|
| 110. |
0451250120
|
[4] |
WASHER,SPRING LOCK
|
0.0066(lbs); 0.003
|
| 120. |
0217650120
|
[4] |
HEX.NUT
|
0.0220(lbs); 0.010
|
| 130. |
0117651402
|
[4] |
HEX.BOLT
|
0.2970(lbs); 0.135
|
| 140. |
0451250140
|
[4] |
WASHER,SPRING LOCK
|
0.0220(lbs); 0.010
|
| 150. |
0207650140
|
[4] |
NUT
|
0.0484(lbs); 0.022
|
