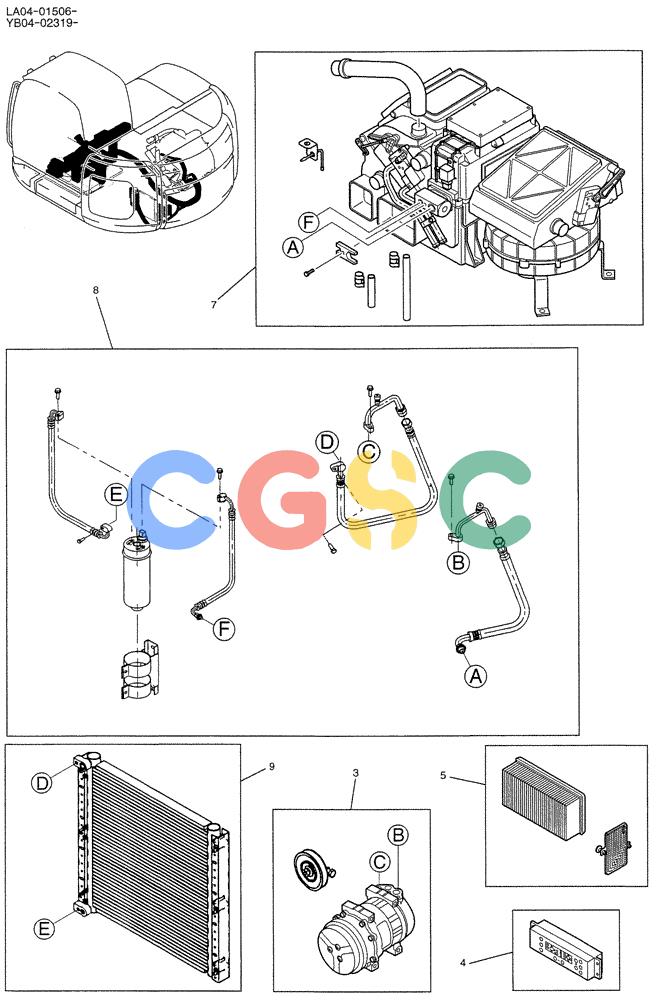

纽荷兰零件查询(E200SR) - CRAWLER EXCAVATOR BTW YB04-02319 - YB04-02550 (01-053) - CONDITIONER ASSY, AIR New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
279 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YB20M00002F3 | [1] | CONDITIONER ASSY, AIR | |
| 3. | YX91V00002F2 | [1] | COMPRESSOR | KOBASSY, AIR, SEE FIG. 01-056 |
| 4. | YT20M01104F1 | [1] | PANEL | KOBASSY, SEE FIG. 01-057 |
| 5. | YT95V00001F1 | [1] | FILTER ASSY | KOBASSY, AIR, SEE FIG. 01-057 |
| 7. | YT20M00009F3 | [1] | CONDITIONER ASSY, AIR, SEE FIG. 01-054 | |
| 8. | YB96V00001F2 | [1] | HEATER | KOBASSY, AIR, SEE FIG. 01-055 |
| 9. | YT20M01060P2 | [1] | CONDENSER | KOB |
