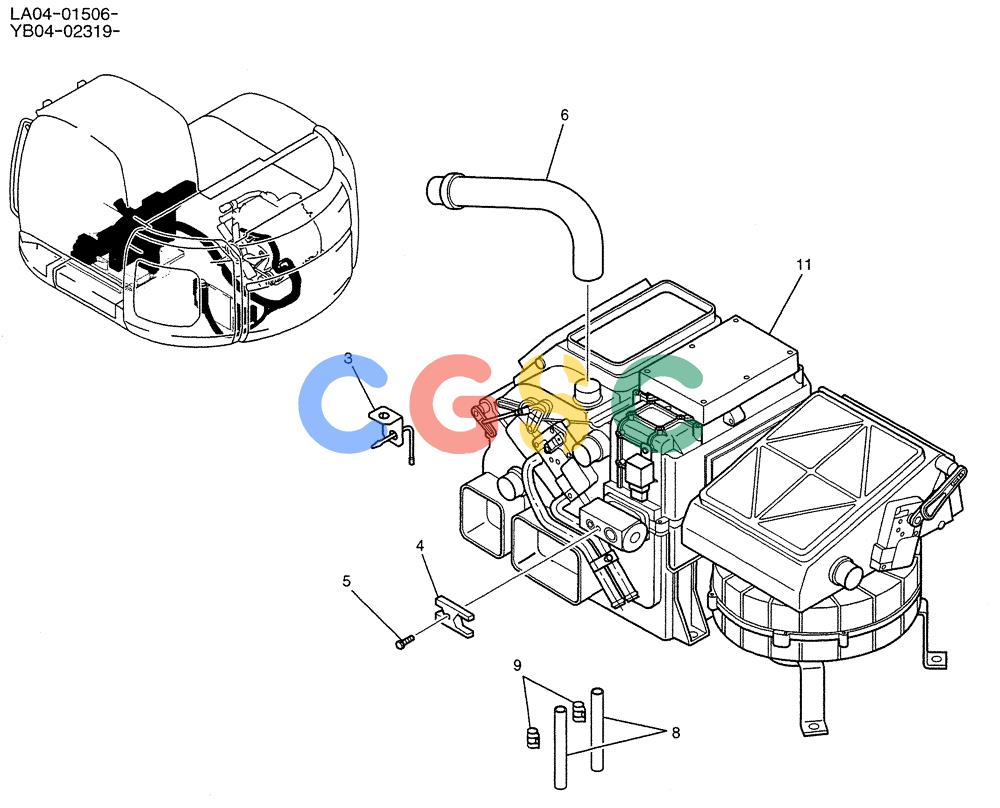

纽荷兰零件查询(E200SR) - CRAWLER EXCAVATOR BTW YB04-02319 - YB04-02550 (01-054) - CONDITIONER ASSY, AIR New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
370 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT20M00009F3 | [1] | CONDITIONER ASSY, AIR | |
| 3. | YT52S00003F1 | [1] | SENSOR | KOBASSY |
| 4. | YT20M01077P1 | [1] | PLATE | KOB |
| 5. | YT20M00009S005 | [1] | BOLT | KOBMACHINE |
| 6. | YT20M01098P1 | [1] | DUCT | KOB |
| 8. | YN20M01255P1 | [2] | FLEXIBLE HOSE | KOB |
| 9. | 24100U1176S5 | [2] | CLAMP | KOB |
| 11. | YT20M00004F2 | [1] | AIR CONDITIONER,Assembly | KOBASSY, AIR, SEE FIG. 01-058-01 & 01-058-02 |
