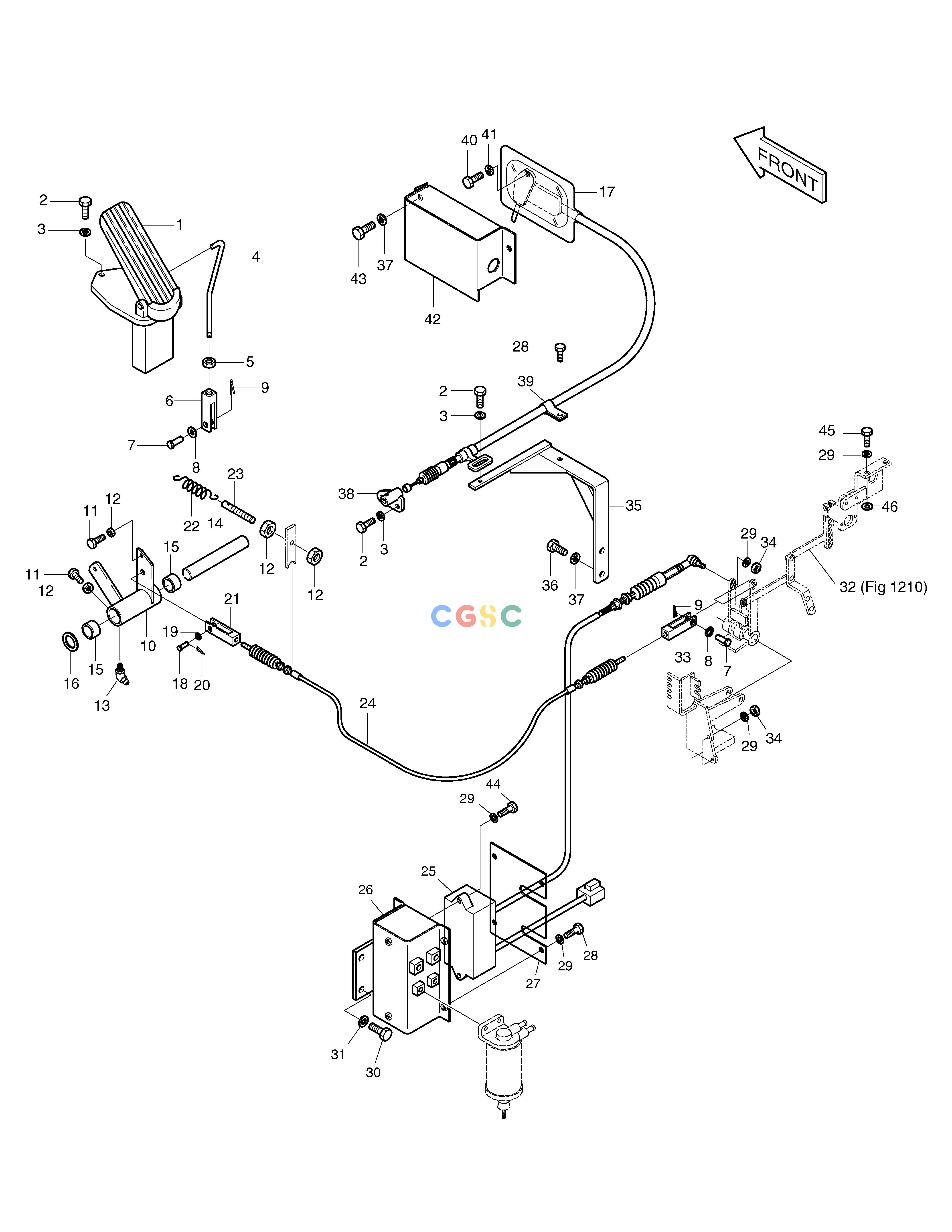

斗山零件查询ENGINE CONTROL ASS'Y SOLAR 185W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
415 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
133-00200A
|
[-] |
ENGINE CONTROL ASS'Y
|
|
| 1. |
2420-9563A
|
[1] |
PEDAL;REMOCON
|
|
| 10. |
2133-2011
|
[1] |
LEVER
|
|
| 11. |
S0512253
|
[2] |
BOLT M10X1.5X30
|
|
| 12. |
S4012633
|
[4] |
NUT
|
|
| 13. |
S6710152
|
[1] |
NIPPLE;GREASE
|
|
| 14. |
2123-1211D14
|
[1] |
PIN
|
|
| 15. |
2109-9019
|
[2] |
BEARING;NEEDLE
|
|
| 16. |
S5011113
|
[1] |
. WASHER
|
|
| 17. |
2523-9016
|
[1] |
MOTOR,E/G STOP
|
|
| 18. |
2123-1057D6
|
[1] |
PIN
|
|
| 19. |
S5010513
|
[1] |
WASHER
|
|
| 2. |
S0504553
|
[6] |
BOLT
|
|
| 20. |
S5735213
|
[1] |
PIN;SPLIT
|
|
| 21. |
2135-1008D29
|
[1] |
END;FORK
|
|
| 22. |
2129-1039
|
[1] |
SPRING
|
|
| 23. |
2136-1362
|
[1] |
ROD
|
2136-1362A
|
| 23. |
2136-1362A
|
[1] |
|
|
| 24. |
2139-1030D6
|
[1] |
CABLE;CONTROL-3150L
|
|
| 25. |
523-00004
|
[1] |
MOTOR;E/G CONTROL
|
300513-00007
|
| 25. |
300513-00007
|
[1] |
|
|
| 26. |
195-02488B
|
[1] |
BRACKET
|
|
| 27. |
159-00125
|
[1] |
PLATE
|
|
| 28. |
S0508853
|
[5] |
. BOLT
|
|
| 29. |
S5102503
|
[11] |
. WASHER
|
|
| 3. |
S5102303
|
[6] |
. WASHER
|
|
| 30. |
S0515053
|
[2] |
BOLT M12X1.75X25
|
|
| 31. |
S5102703
|
[2] |
WASHER
|
|
| 32. |
133-00187B
|
[1] |
LEVER ASS'Y
|
|
| 33. |
2135-1008D25
|
[1] |
END;FORK
|
|
| 34. |
S4012533
|
[3] |
NUT
|
|
| 35. |
2197-1777
|
[1] |
BRACKET
|
|
| 36. |
S0711853
|
[2] |
BOLT M10X1.25X20
|
|
| 37. |
S5102603
|
[4] |
. WASHER
|
|
| 38. |
2150-1122
|
[1] |
HOOK,CABLE
|
|
| 39. |
2124-1509D10
|
[1] |
CLIP
|
|
| 4. |
2136-4010
|
[1] |
ROD
|
|
| 40. |
S0509053
|
[2] |
. BOLT
|
|
| 41. |
S5010513
|
[2] |
WASHER
|
|
| 42. |
2621-3922B
|
[1] |
COVER
|
|
| 43. |
S0511953
|
[2] |
BOLT
|
|
| 44. |
S0509353
|
[2] |
BOLT M8X1.25X35
|
|
| 45. |
S0556553
|
[2] |
BOLT M8X1.25X60
|
|
| 46. |
2114-1058D56
|
[2] |
WASHER
|
|
| 5. |
S4012333
|
[1] |
NUT
|
|
| 6. |
2135-1008D3
|
[1] |
END;FORK
|
|
| 7. |
2123-1888
|
[2] |
PIN
|
|
| 8. |
S5010313
|
[2] |
WASHER
|
|
| 9. |
S5735121
|
[2] |
PIN;SPLIT
|
|
