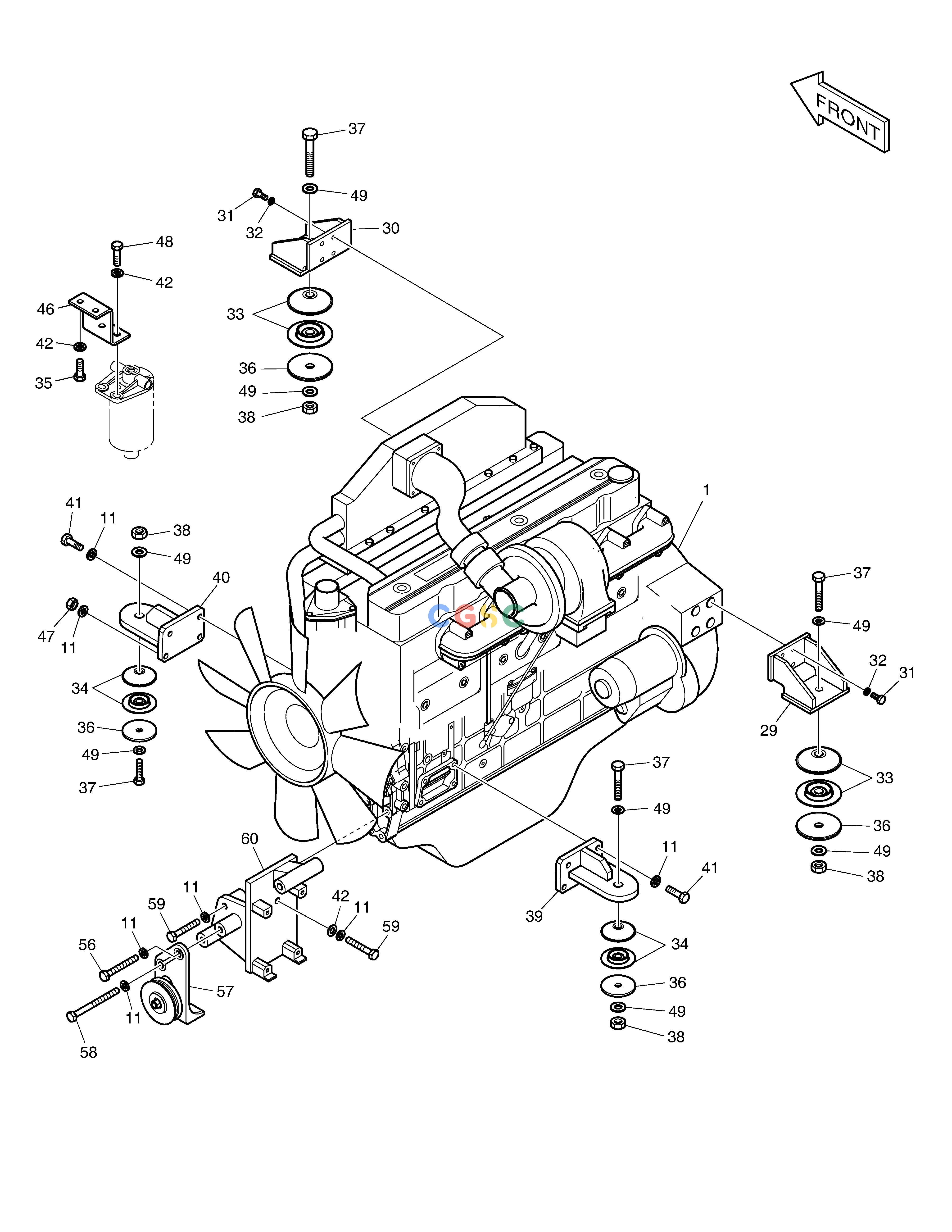

斗山零件查询ENGINE MOUNTING SOLAR 185W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
846 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
201-00168A
|
[-] |
ENGINE ASS'Y
|
|
| 1. |
K1029545
|
[1] |
ENGINE
|
|
| 11. |
S5102603
|
[8] |
. WASHER
|
|
| 11. |
S5102603
|
[12] |
. WASHER
|
|
| 29. |
195-01924
|
[1] |
BRACKET
|
|
| 30. |
195-01925
|
[1] |
BRACKET
|
|
| 31. |
S0786253
|
[8] |
BOLT M12X1.5X30
|
|
| 32. |
S5102703
|
[8] |
WASHER
|
|
| 33. |
161-00548
|
[4] |
RUBBER
|
|
| 34. |
161-00550
|
[4] |
RUBBER;ENGINE MOUNTING
|
|
| 35. |
S0512053
|
[2] |
BOLT
|
|
| 36. |
2114-1929
|
[4] |
WASHER
|
|
| 37. |
S0771466
|
[4] |
BOLT
|
|
| 38. |
121-00066
|
[4] |
NUT;LOCK
|
|
| 39. |
195-02143A
|
[1] |
BRACKET
|
|
| 40. |
195-02144
|
[1] |
BRACKET
|
|
| 41. |
S0712253
|
[7] |
BOLT M10X1.25X30
|
|
| 42. |
S5010613
|
[4] |
WASHER
|
|
| 42. |
S5010613
|
[5] |
WASHER
|
|
| 46. |
2891-1373
|
[1] |
PLATE
|
|
| 47. |
S4032633
|
[1] |
NUT
|
|
| 48. |
S0512253
|
[2] |
BOLT M10X1.5X30
|
|
| 49. |
2114-9012A
|
[8] |
WASHER
|
|
| 56. |
S0559153
|
[1] |
BOLT
|
|
| 57. |
130710-00078
|
[1] |
PULLEY ASSY,IDLE
|
|
| 58. |
S0759853
|
[1] |
BOLT
|
|
| 59. |
S0758866
|
[2] |
|
|
| 60. |
110402-00075A
|
[1] |
BRACKET,COMPRESSOR
|
|
