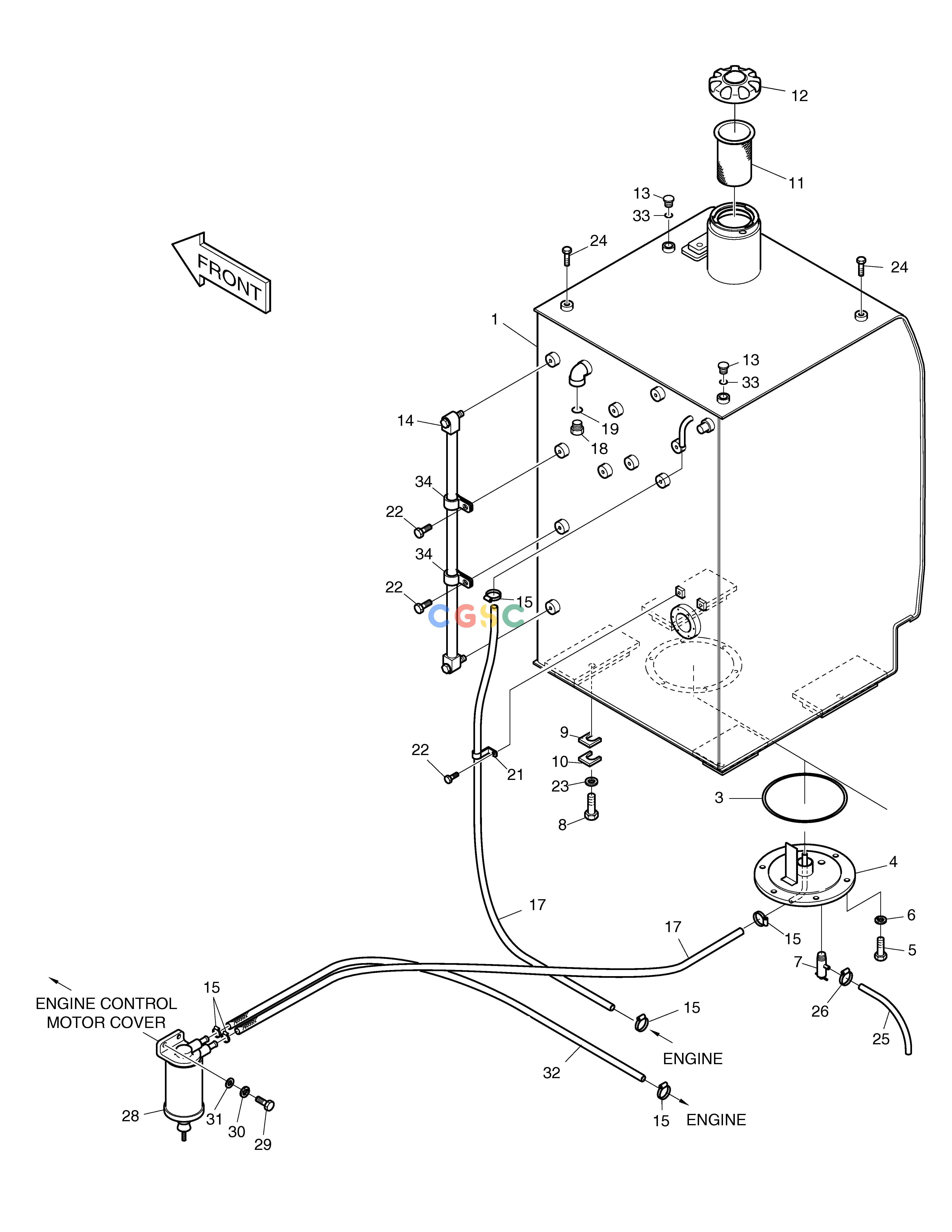

斗山零件查询FUEL TANK SOLAR 185W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
682 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
470-00155
|
[-] |
FUEL TANK ASS'Y
|
|
| -. |
450103-00170
|
[-] |
|
|
| 1. |
470-00154B
|
[1] |
TANK;FUEL
|
|
| 10. |
2114-1814
|
[2] |
SHIM,1.6T
|
|
| 11. |
471-00105
|
[1] |
FILTER;FUEL
|
|
| 12. |
K1004266
|
[1] |
CAP;FUEL
|
110911-00126
|
| 12. |
110911-00126
|
[1] |
|
|
| 13. |
2181-1950D1
|
[2] |
PLUG
|
|
| 14. |
119-00014D1
|
[1] |
GAUGE;LEVEL
|
|
| 15. |
S8450012
|
[6] |
CLAMP
|
|
| 17. |
2185-1247D26
|
[2] |
HOSE 3500L
|
|
| 18. |
2181-1950D7
|
[1] |
. PLUG
|
|
| 19. |
S8000181
|
[1] |
O-RING
|
|
| 21. |
124-00208D2
|
[1] |
CLAMP
|
|
| 22. |
120-00276
|
[3] |
BOLT M8X1.25X12
|
|
| 23. |
2114-1816A
|
[4] |
WASHER
|
|
| 24. |
S0514653
|
[2] |
BOLT M12X1.75X16
|
|
| 25. |
2184-9089
|
[1] |
HOSE;VINYL
|
|
| 26. |
S8450006
|
[1] |
CLAMP
|
|
| 28. |
471-00082A
|
[1] |
SEPARATOR;WATER
|
|
| 29. |
S0552953
|
[2] |
BOLT M6X1.0X22
|
|
| 3. |
S8011650
|
[1] |
O-RING
|
|
| 30. |
S5102303
|
[2] |
. WASHER
|
|
| 31. |
2114-1058D52
|
[2] |
WASHER
|
|
| 32. |
2185-1247D25
|
[1] |
HOSE;FUEL
|
|
| 33. |
S8000111
|
[2] |
O-RING
|
|
| 34. |
DS2802021
|
[2] |
CLIP
|
|
| 4. |
2473-1033B
|
[1] |
COVER
|
|
| 5. |
S0512053
|
[6] |
BOLT
|
|
| 6. |
S5102603
|
[6] |
. WASHER
|
|
| 7. |
2186-9001
|
[1] |
COCK
|
|
| 8. |
S0521366
|
[4] |
BOLT
|
|
| 9. |
2114-1813
|
[2] |
SHIM,0.8T
|
|
