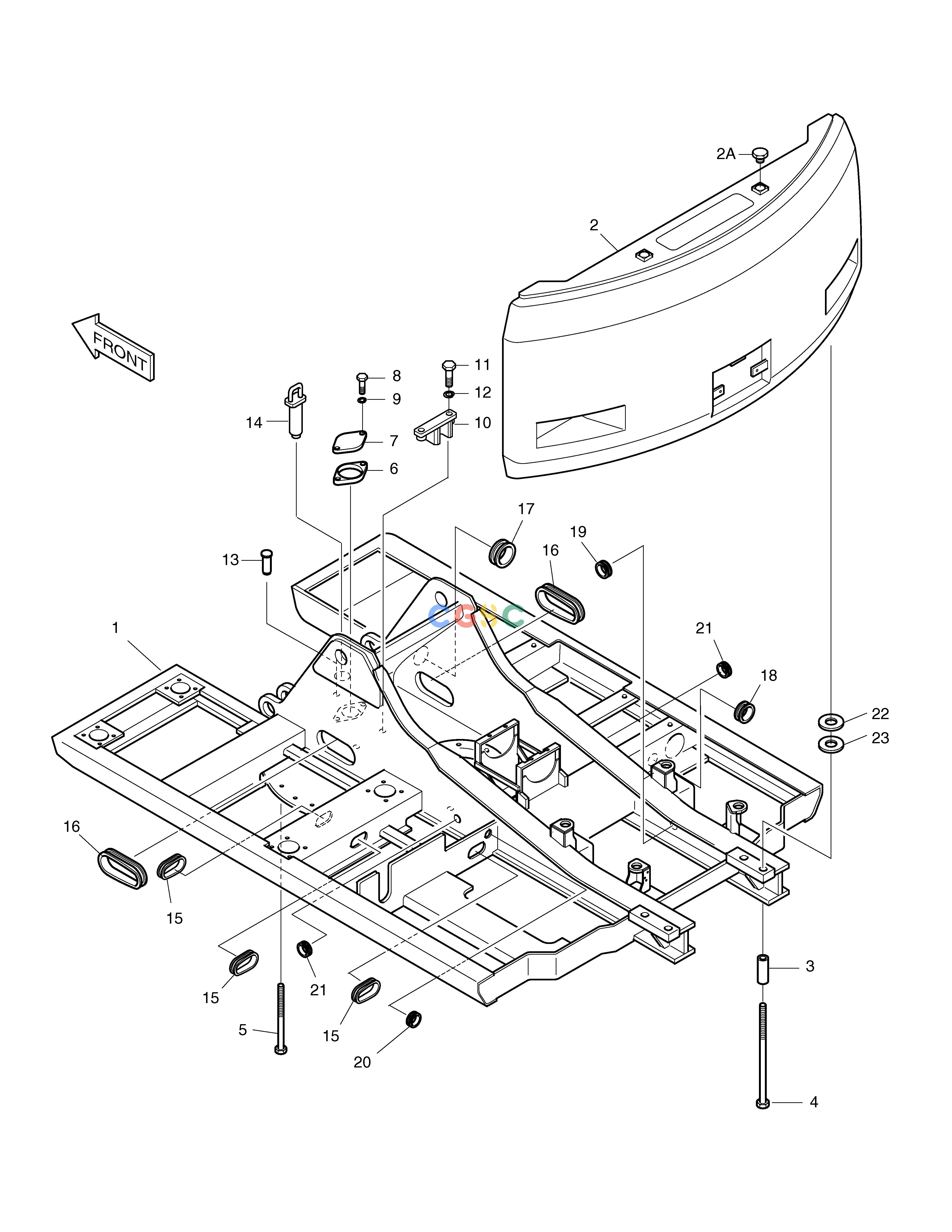

斗山零件查询FRAME SOLAR 185W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
379 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
600-00154C
|
[-] |
MAIN FRAME ASS'Y
|
|
| 1. |
603-00310C
|
[1] |
MAIN FRAME
|
|
| 10. |
2195-4824B
|
[1] |
BRACKET
|
|
| 11. |
S0565366
|
[2] |
BOLT M16X2.0X55
|
|
| 12. |
S5102903
|
[2] |
WASHER
|
|
| 13. |
2123-1107D4
|
[2] |
PIN;KNOCK
|
|
| 14. |
2123-1902B
|
[1] |
LOCK;SWING
|
|
| 15. |
2160-1201D12
|
[3] |
BUSHING,RUBBER
|
|
| 16. |
2160-1201D8
|
[2] |
BUSHING;RUBBER
|
|
| 17. |
2160-1004D54
|
[1] |
BUSHING;RUBBER
|
|
| 18. |
2160-1004D31
|
[1] |
BUSHING;RUBBER
|
|
| 19. |
2160-1004D51
|
[1] |
BUSHING;RUBBER
|
|
| 2. |
160702-01034
|
[1] |
|
|
| 2. |
624-00089
|
[1] |
WEIGHT;COUNTER
|
160702-01034
|
| 20. |
2160-1004D20
|
[1] |
BUSHING;RUBBER
|
|
| 21. |
2160-1004D55
|
[2] |
BUSHING;RUBBER
|
|
| 22. |
2114-1058D16
|
[5] |
SHIM
|
|
| 23. |
2114-1058D17
|
[5] |
SHIM
|
|
| 2A. |
2160-9011
|
[2] |
CAP
|
|
| 3. |
2114-1817
|
[4] |
SPACER
|
|
| 4. |
2120-2137A
|
[4] |
BOLT
|
|
| 5. |
S0570966
|
[35] |
BOLT M20X2.5X105
|
|
| 6. |
2180-1017A
|
[1] |
PACKING
|
|
| 7. |
2403-1002
|
[1] |
COVER
|
|
| 8. |
S0511853
|
[2] |
BOLT
|
|
| 9. |
S5102603
|
[2] |
. WASHER
|
|
