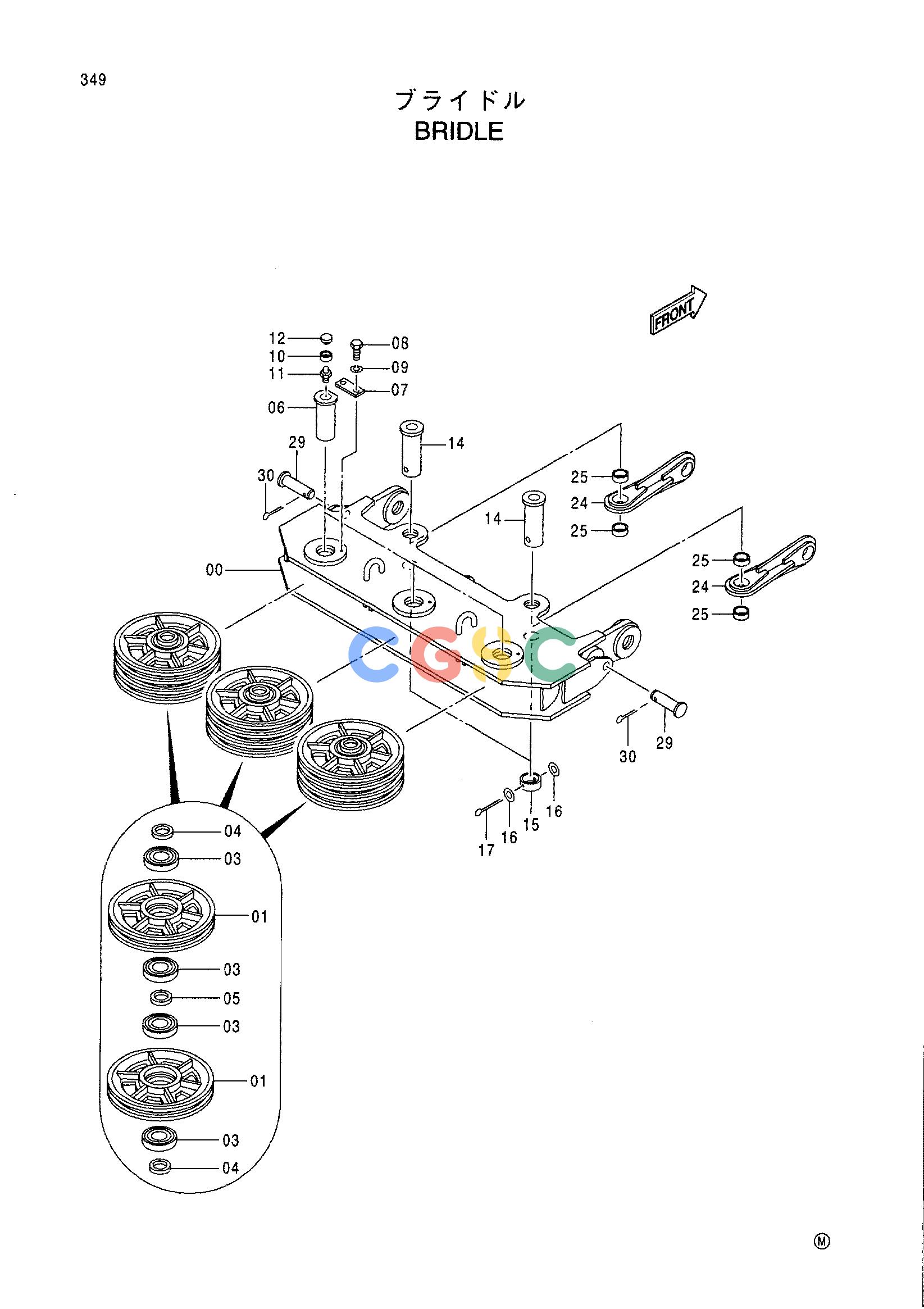

日立零件查询（CX1000）BRIDLE Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
950 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 9204764 | [1] | BRIDLE ASS'Y | |
| 00. | 7040785 | [1] | BRIDLE | |
| 01. | 3080671 | [6] | SHEAVE | |
| 03. | 944922 | [12] | BRG.;BALL | |
| 04. | 442617 | [6] | SPACER | |
| 05. | 4088400 | [3] | SPACER | |
| 06. | 4231996 | [3] | PIN | |
| 07. | 4135186 | [3] | PLATE | |
| 08. | J901225 | [6] | BOLT | |
| 09. | A590912 | [6] | WASHER;SPRING | |
| 10. | 4130686 | [3] | COLLAR | |
| 11. | J75481 | [3] | FITTING;GREASE | |
| 12. | 4105912 | [3] | CAP | |
| 14. | 4371843 | [2] | PIN | |
| 15. | 4341161 | [2] | SPACER | |
| 16. | A590110 | [4] | WASHER;PLANE | |
| 17. | A761003 | [2] | PIN;SPLIT | |
| 24. | 8084895 | [2] | LINK | |
| 25. | 4386121 | [4] | SPACER | |
| 29. | 4118738 | [2] | PIN | |
| 30. | A761080 | [2] | PIN;SPLIT | |
