| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|

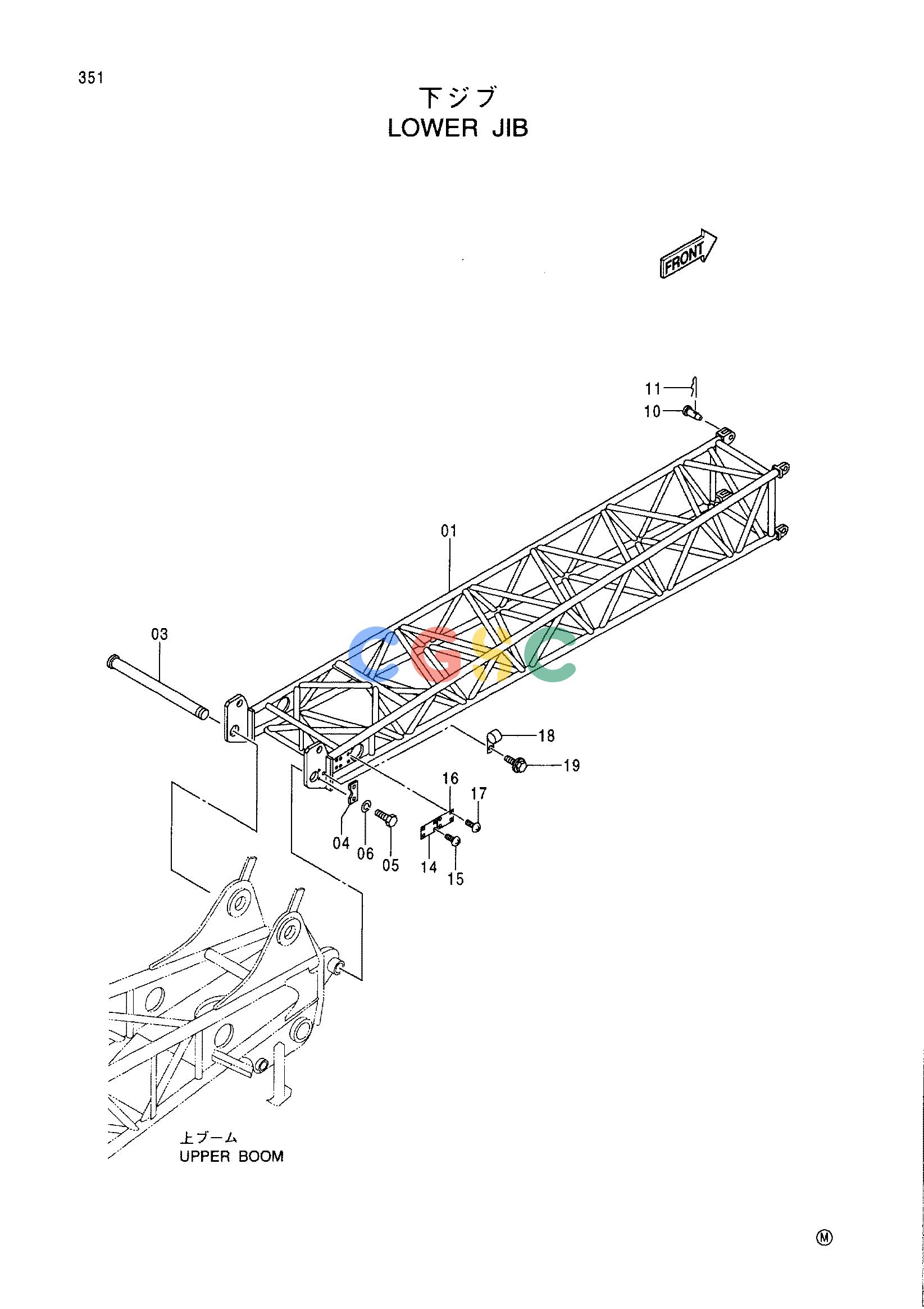

| 01. | 6017763 | [1] | JIB;LOWER | |
| 03. | 4163343 | [1] | AXLE | |
| 04. | X4247 | [1] | PLATE;LOCK | |
| 05. | J901635 | [2] | BOLT | |
| 06. | A590916 | [2] | WASHER;SPRING | |
| 10. | 4046467 | [4] | PIN | |
| 11. | 414322 | [4] | PIN;LOCK | |
| 14. | +++++++ | [1] | NAME-PLATE | |
| 15. | M491832 | [4] | SCREW;DRIVE | |
| 16. | 4053262 | [1] | NAME-PLATE | |
| 17. | M492564 | [4] | SCREW;DRIVE | |
| 18. | 4190271 | [1] | CLIP | |
| 19. | J011020 | [1] | BOLT;SEMS |
