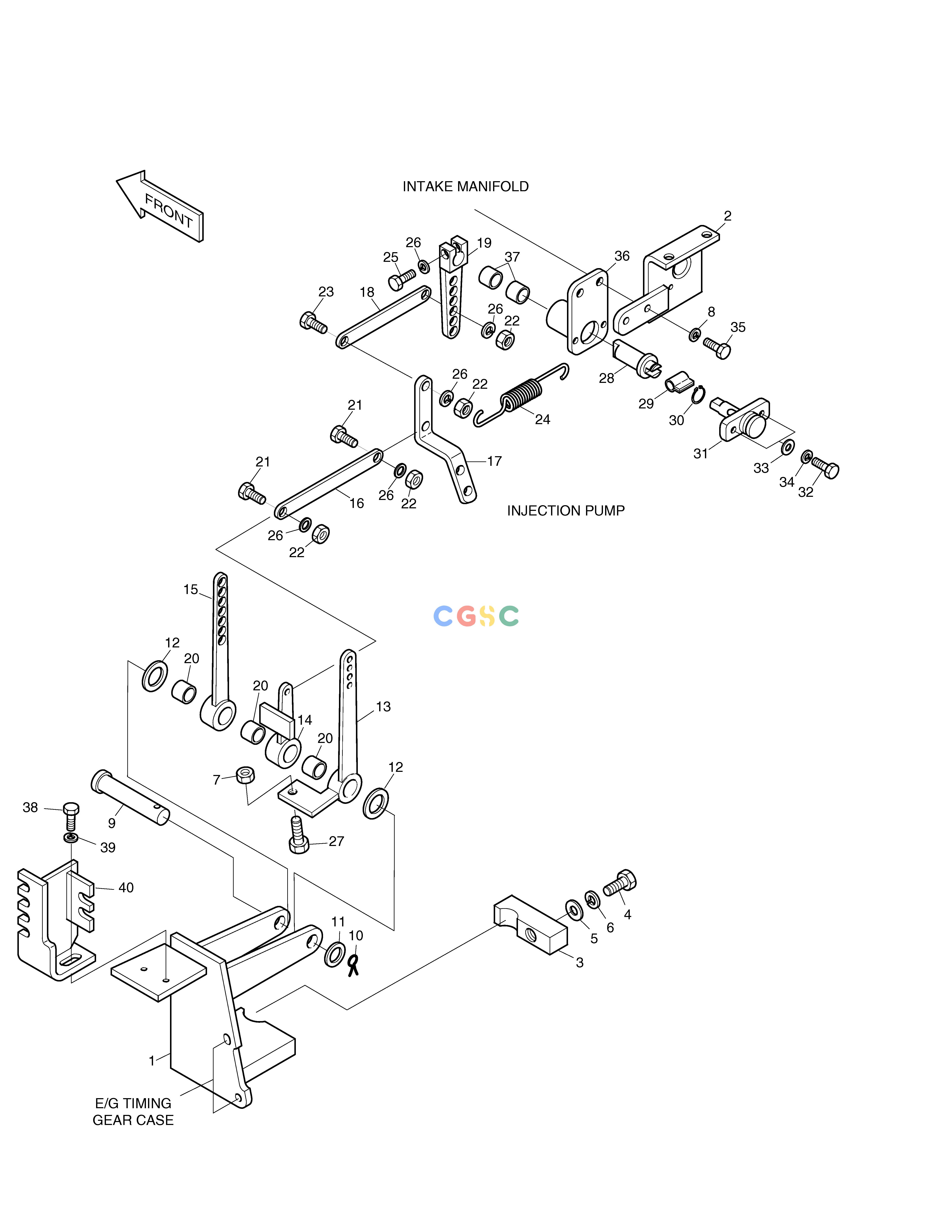

斗山零件查询LEVER ASS'Y-ENGINE SUB SOLAR 185W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
413 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
133-00187B
|
[1] |
LEVER ASS'Y
|
|
| 1. |
195-02224B
|
[1] |
BRACKET
|
|
| 10. |
S5735471
|
[1] |
PIN;SPLIT
|
|
| 11. |
S5010913
|
[1] |
WASHER
|
|
| 12. |
2114-1699
|
[2] |
WASHER
|
|
| 13. |
2133-2073
|
[1] |
LEVER
|
|
| 14. |
2133-2074
|
[1] |
LEVER
|
|
| 15. |
2133-2075
|
[1] |
LEVER
|
|
| 16. |
2133-2004B
|
[1] |
LEVER
|
|
| 17. |
133-00189
|
[1] |
LEVER
|
|
| 18. |
2133-1933
|
[1] |
LEVER
|
|
| 19. |
2133-2077
|
[1] |
LEVER
|
|
| 2. |
195-02225
|
[1] |
BRACKET
|
|
| 20. |
2110-1184D27
|
[3] |
BUSH;DU
|
|
| 21. |
2120-2145
|
[2] |
BOLT M6X1.0X20
|
|
| 22. |
S4012333
|
[4] |
NUT
|
|
| 23. |
2120-1497
|
[2] |
BOLT M6X1.0X26
|
|
| 24. |
2129-1404
|
[1] |
SPRING
|
|
| 25. |
S0505253
|
[1] |
BOLT M6X1.0X30
|
|
| 26. |
S5102303
|
[5] |
. WASHER
|
|
| 27. |
2120-1490
|
[1] |
BOLT M8X1.25X30
|
|
| 28. |
2112-1214
|
[1] |
SHAFT
|
|
| 29. |
2124-1501
|
[1] |
CLIP
|
|
| 3. |
2124-1288
|
[1] |
CLAMP
|
|
| 30. |
S6500120
|
[1] |
RING;RETAINING
|
|
| 31. |
2552-9005
|
[1] |
POTENTIOMETER
|
|
| 32. |
S3450853
|
[2] |
SCREW
|
|
| 33. |
S5100103
|
[2] |
WASHER
|
|
| 34. |
S5000113
|
[2] |
WASHER
|
|
| 35. |
S0508853
|
[2] |
. BOLT
|
|
| 36. |
2237-1068
|
[1] |
BOSS
|
|
| 37. |
2110-1184D26
|
[2] |
BUSH;DU
|
|
| 38. |
S0511853
|
[2] |
BOLT
|
|
| 39. |
S5010613
|
[2] |
WASHER
|
|
| 4. |
S0560853
|
[1] |
BOLT M12X1.75X55
|
|
| 40. |
195-02440
|
[1] |
BRACKET
|
|
| 5. |
S5010713
|
[1] |
WASHER;PLAIN
|
|
| 6. |
S5102703
|
[1] |
WASHER
|
|
| 7. |
S4012533
|
[1] |
NUT
|
|
| 8. |
S5102503
|
[2] |
. WASHER
|
|
| 9. |
2123-2315
|
[1] |
PIN
|
|
