| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|

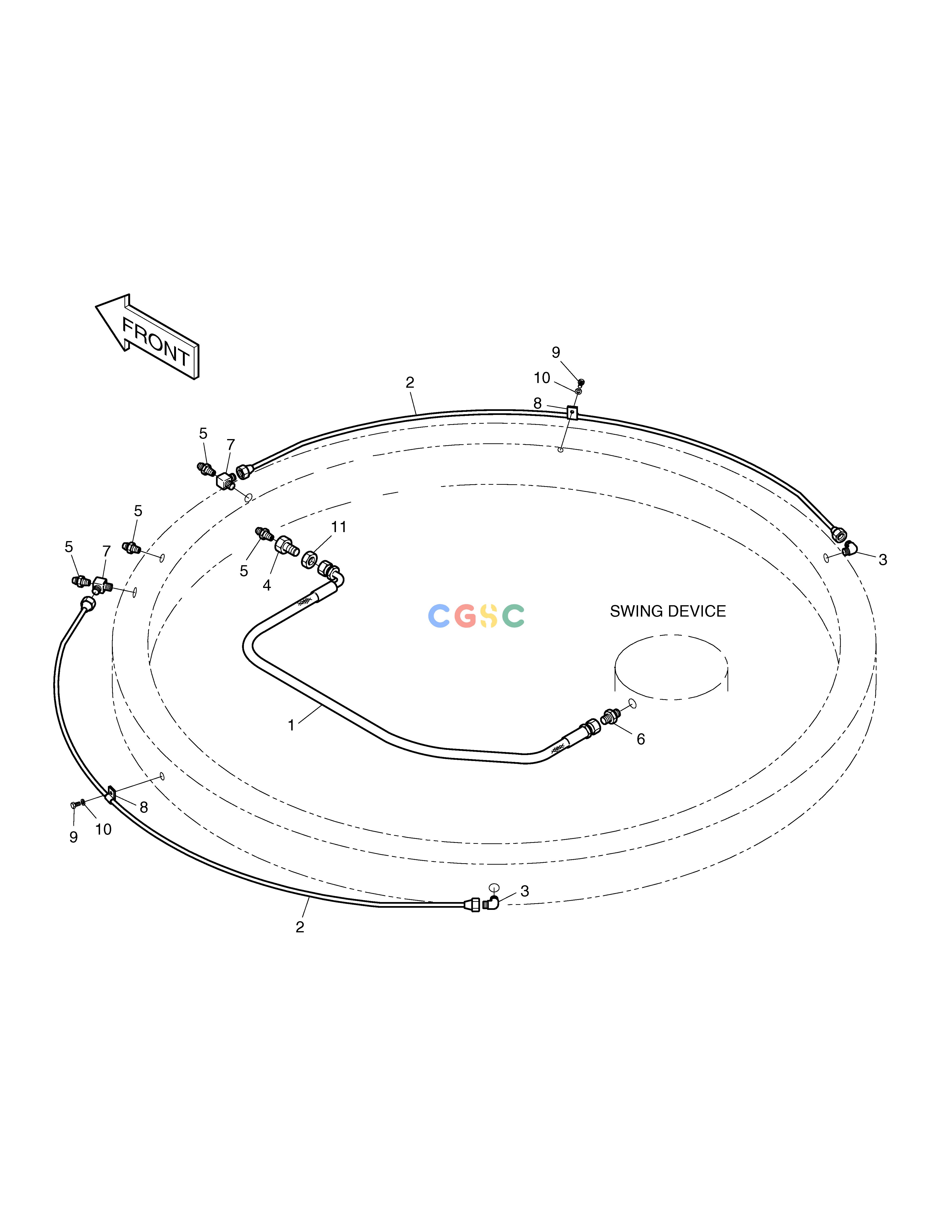

| -. | 2400-2105A | [-] | LUBRICATOR PIPING | |
| 1. | 2184-1046D52 | [1] | HOSE PF1/4-1100L | |
| 10. | S5102303 | [2] | . WASHER | |
| 11. | 121-00006 | [1] | NUT | |
| 2. | 2182-1820 | [2] | PIPE | |
| 3. | 2181-1925 | [2] | ELBOW | |
| 4. | 181-00103 | [1] | REDUCER | |
| 5. | S6710041 | [4] | NIPPLE,GREASE | |
| 6. | 2181-1110D1 | [1] | ADAPTER | |
| 7. | 2181-2527 | [2] | TEE | |
| 8. | 2124-1027D2 | [2] | CLIP;PIPE | |
| 9. | S0504353 | [2] | BOLT M6X1.0X10 |
