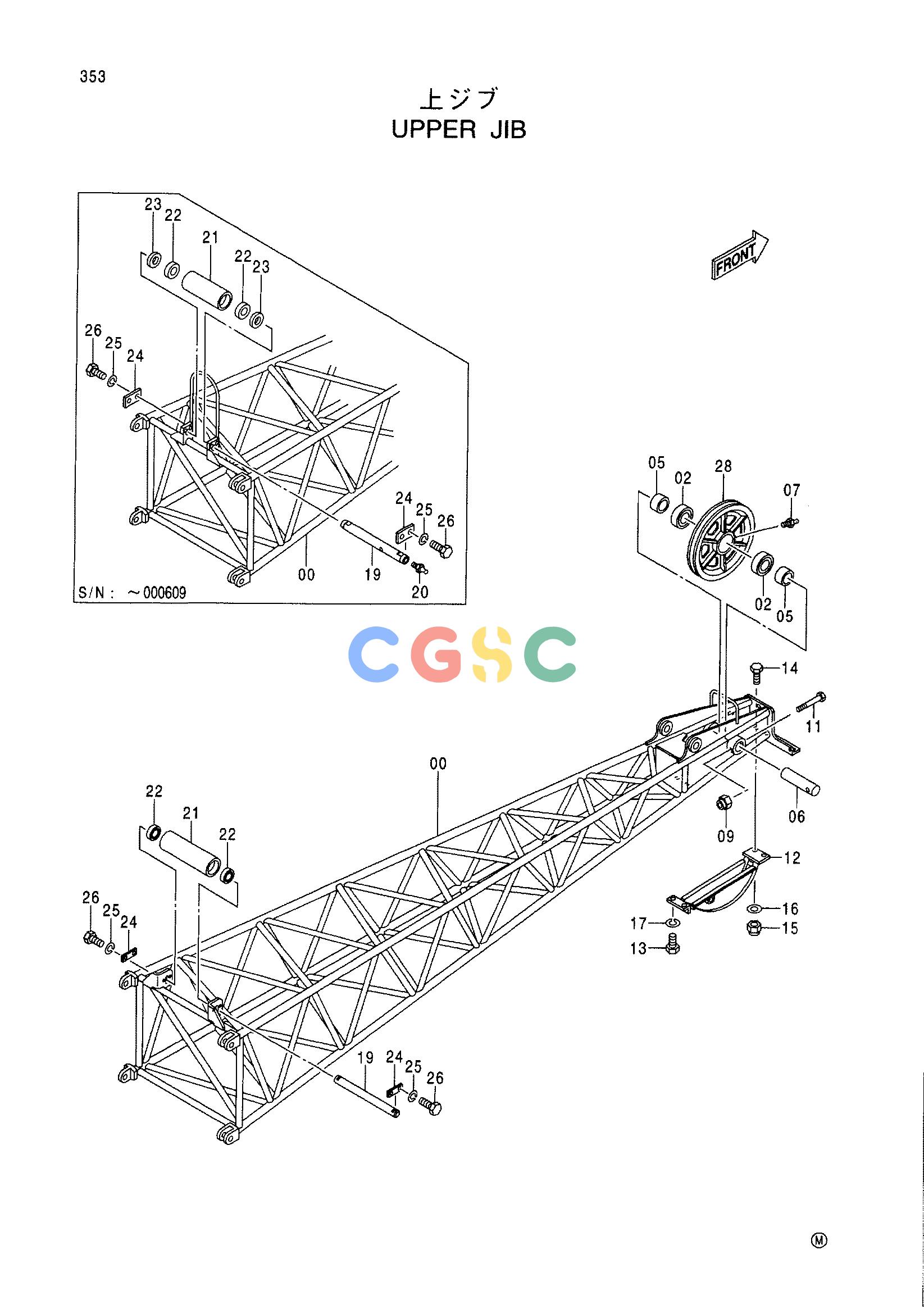

日立零件查询（CX1000）UPPER JIB Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
378 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 6017746 | [1] | JIB;UPPER | |
| 00. | 6021478 | [1] | JIB;UPPER | |
| 02. | 4129305 | [2] | BRG.;BALL | |
| 05. | 4164567 | [2] | SPACER | |
| 06. | 4407985 | [1] | PIN | |
| 07. | J75481 | [1] | FITTING;GREASE | |
| 09. | M660016 | [1] | NUT;U | |
| 11. | J901608 | [1] | BOLT | |
| 12. | 8021230 | [1] | GUIDE;ROPE | |
| 13. | J901625 | [2] | BOLT | |
| 14. | J901635 | [2] | BOLT | |
| 15. | M660016 | [2] | NUT;U | |
| 16. | A590116 | [2] | WASHER;PLANE | |
| 17. | A590916 | [2] | WASHER;SPRING | |
| 19. | 4408330 | [1] | AXLE | |
| 19. | 4465455 | [1] | AXLE | |
| 20. | J75481 | [1] | FITTING;GREASE | |
| 21. | 4408329 | [1] | ROLLER;GUIDE | |
| 21. | 4465460 | [1] | ROLLER;GUIDE | |
| 22. | 4162505 | [2] | BRG.;BALL | |
| 22. | 4463845 | [2] | BRG.;BALL | |
| 23. | 4408333 | [2] | SPACER | |
| 24. | X4245 | [2] | PLATE;LOCK | |
| 24. | X4246 | [2] | PLATE;LOCK | |
| 25. | A590910 | [4] | WASHER;SPRING | |
| 25. | A590912 | [4] | WASHER;SPRING | |
| 26. | J901025 | [4] | BOLT | |
| 26. | J901225 | [4] | BOLT | |
| 28. | 3081859 | [1] | SHEAVE | |
