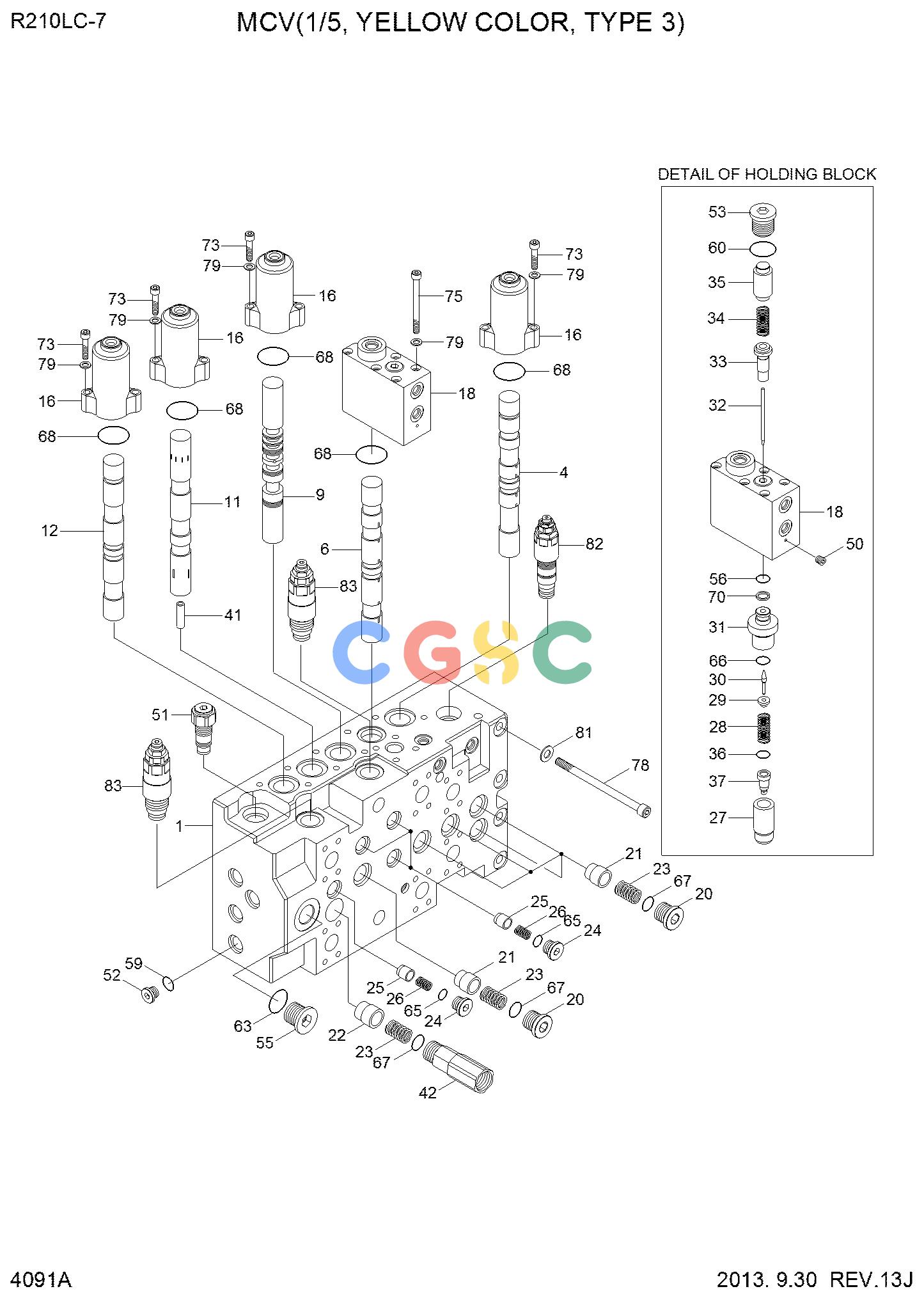

现代零件查询R210/220LC-7H MCV(1/5, YELLOW COLOR, TYPE 3)EPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
199 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
31N6-18150
|
[1] |
MAIN CONTROL VALVE
|
|
| . |
31N6-18000P
|
[1] |
MAIN CONTROL VALVE
|
|
| . |
31N6-18001P
|
[1] |
MAIN CONTROL VALVE
|
|
| . |
31N6-18003P
|
[1] |
MAIN CONTROL VALVE
|
|
| N1. |
XKCG-00001
|
[1] |
HOUSING
|
|
| 4. |
XKCG-00004
|
[1] |
SPOOL ASSY-TRAVEL
|
|
| 6. |
XKCG-00006
|
[1] |
SPOOL ASSY-BOOM 1
|
|
| 6. |
XKCG-00302
|
[1] |
SPOOL ASSY-BOOM 1
|
|
| 9. |
XKCG-00009
|
[1] |
SPOOL ASSY-ARM 2
|
|
| 9. |
XKCG-00301
|
[1] |
SPOOL ASSY-ARM 2
|
|
| 11. |
XKCG-00011
|
[1] |
SPOOL ASSY-ARM REGEN
|
|
| 11. |
XKCG-00334
|
[1] |
SPOOL ASSY-ARM REGEN
|
|
| 12. |
XKCG-00012
|
[1] |
SPOOL ASSY-BUCKET
|
|
| 16. |
XKCG-00016
|
[4] |
COVER B1-PILOT
|
|
| N18. |
XKCG-00018
|
[1] |
BLOCK-HOLDING
|
|
| N18. |
XKCG-00084
|
[1] |
BLOCK-HOLDING
|
|
| N18. |
XKCG-00426
|
[1] |
BLOCK-HOLDING
|
|
| 20. |
XKCG-00020
|
[5] |
PLUG
|
|
| 21. |
XKCG-00021
|
[5] |
POPPET 1-CHECK VALVE
|
|
| 22. |
XKCG-00022
|
[1] |
POPPET 1-L/C BUCKET
|
|
| 23. |
XKCG-00023
|
[6] |
SPRING 1-CHECK VALVE
|
|
| 24. |
XKCG-00024
|
[4] |
PLUG
|
|
| 25. |
XKCG-00025
|
[4] |
POPPET 2-CHECK VALVE
|
|
| 26. |
XKCG-00026
|
[4] |
SPRING 2-CHECK VALVE
|
|
| 27. |
XKCG-00027
|
[1] |
POPPET-LOCK VALVE
|
|
| 28. |
XKCG-00028
|
[1] |
SPRING-LOCK VLV PILOT
|
|
| 29. |
XKCG-00029
|
[1] |
GUIDE-POPPET
|
|
| 29. |
XKCG-00085
|
[1] |
GUIDE POPPET
|
|
| 30. |
XKCG-00030
|
[1] |
POPPET-PILOT
|
|
| 31. |
XKCG-00031
|
[1] |
SEAT-POPPET
|
|
| 32. |
XKCG-00032
|
[1] |
PISTON 1
|
|
| 33. |
XKCG-00033
|
[1] |
GUIDE-PISTON
|
|
| 34. |
XKCG-00034
|
[1] |
SPRING1-LOCK VALVE
|
|
| 35. |
XKCG-00035
|
[1] |
PISTON2
|
|
| 36. |
XKCG-00036
|
[1] |
C-RING
|
|
| 37. |
XKCG-00037
|
[1] |
RESTRICTOR-LOCK VALVE
|
|
| 41. |
XKCG-00041
|
[1] |
PISTON-CUT OFF
|
|
| 42. |
XKCG-00042
|
[1] |
VALVE-CHECK
|
|
| 50. |
XKCG-00050
|
[1] |
PLUG-TAPER
|
|
| 51. |
XKCG-00051
|
[1] |
NEGATIVE CONTROL VALVE
|
|
| 52. |
XKCG-00052
|
[1] |
PLUG
|
|
| 53. |
XKCG-00053
|
[1] |
PLUG
|
|
| 55. |
XKCG-00055
|
[1] |
PLUG
|
|
| 56. |
XKCG-00056
|
[1] |
O-RING
|
|
| 59. |
XKCG-00059
|
[1] |
O-RING
|
|
| 60. |
XKCG-00060
|
[1] |
O-RING
|
|
| 63. |
XKCG-00063
|
[1] |
O-RING
|
|
| 65. |
XKCG-00065
|
[4] |
O-RING
|
|
| 67. |
XKCG-00067
|
[6] |
O-RING
|
|
| 67. |
XKCG-00063
|
[6] |
O-RING
|
|
| 68. |
XKCG-00068
|
[5] |
O-RING
|
|
| 70. |
XKCG-00070
|
[1] |
RING-BACK UP
|
|
| 73. |
XKCG-00073
|
[8] |
BOLT-SOCKET
|
|
| 75. |
XKCG-00075
|
[5] |
BOLT-SOCKET
|
|
| 78. |
XKCG-00078
|
[4] |
BOLT-SOCKET
|
|
| 79. |
XKCG-00079
|
[13] |
WASHER
|
|
| 81. |
XKCG-00081
|
[4] |
WASHER
|
|
| 82. |
XKCG-00082
|
[1] |
MAIN RELIEF VALVE
|
|
| 83. |
XKCG-00083
|
[2] |
RELIEF VALVE-OVERLOAD
|
|
