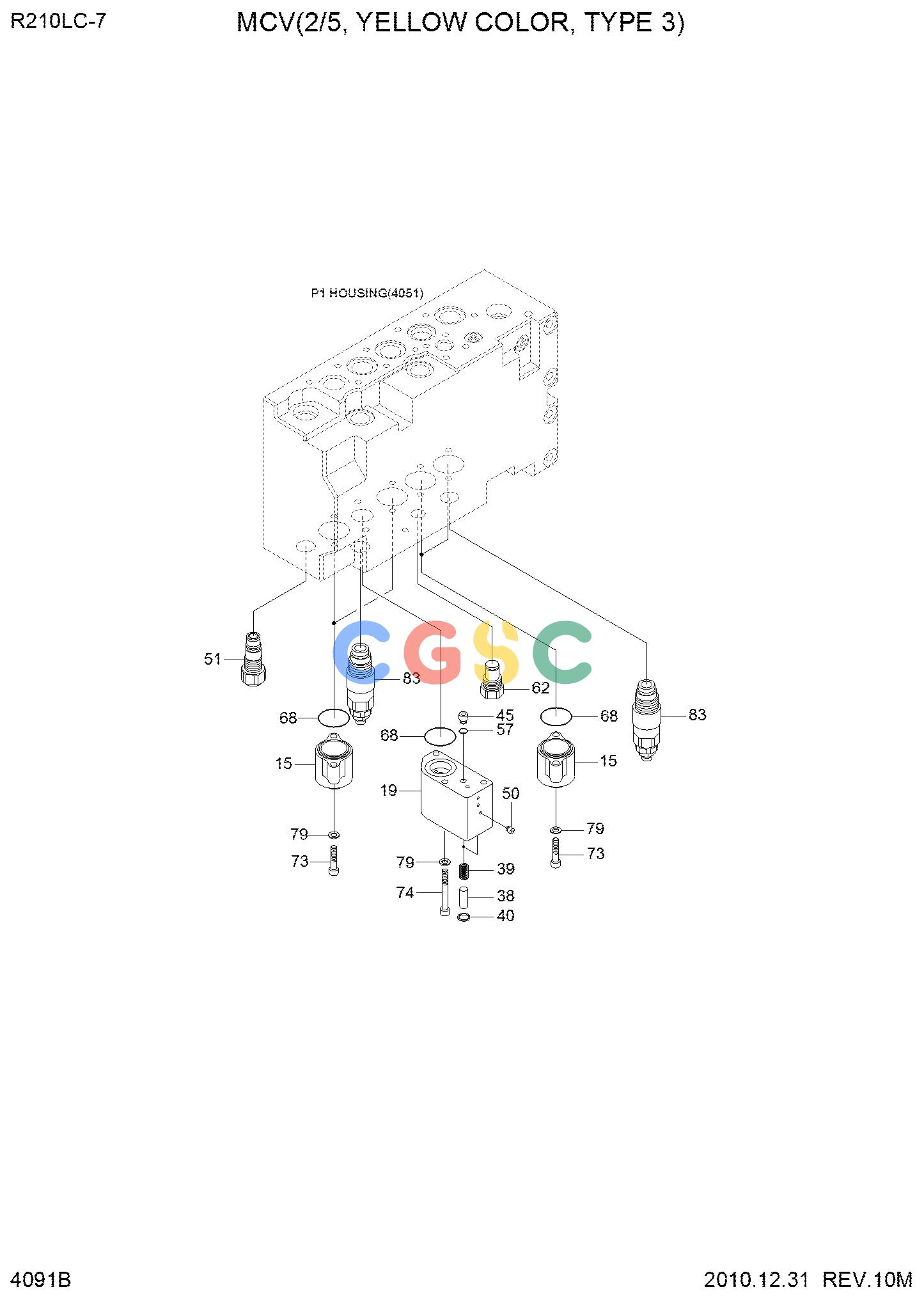

现代零件查询R210/220LC-7H MCV(2/5, YELLOW COLOR, TYPE 3)EPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
888 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
@
|
[1] |
MAIN CONTROL VALVE
|
|
| 15. |
XKCG-00015
|
[4] |
COVER A-PILOT
|
|
| N19. |
XKCG-00019
|
[1] |
BLOCK-REGEN
|
|
| 38. |
XKCG-00038
|
[1] |
SPOOL-REGEN SELECTOR
|
|
| 39. |
XKCG-00039
|
[1] |
SPRING-REGEN
|
|
| 40. |
XKCG-00040
|
[1] |
STOPPER-REGEN
|
|
| 45. |
XKCG-00045
|
[1] |
ORIFICE-PLUG
|
|
| 50. |
XKCG-00050
|
[1] |
PLUG-TAPER
|
|
| 51. |
XKCG-00051
|
[1] |
NEGATIVE CONTROL VALVE
|
|
| 57. |
XKCG-00057
|
[1] |
O-RING
|
|
| 62. |
XKCG-00062
|
[1] |
PLUG
|
|
| 68. |
XKCG-00068
|
[5] |
O-RING
|
|
| 73. |
XKCG-00073
|
[9] |
BOLT-SOCKET
|
|
| 74. |
XKCG-00074
|
[3] |
BOLT-SOCKET
|
|
| 79. |
XKCG-00079
|
[12] |
WASHER
|
|
| 83. |
XKCG-00083
|
[2] |
RELIEF VALVE-OVERLOAD
|
|
