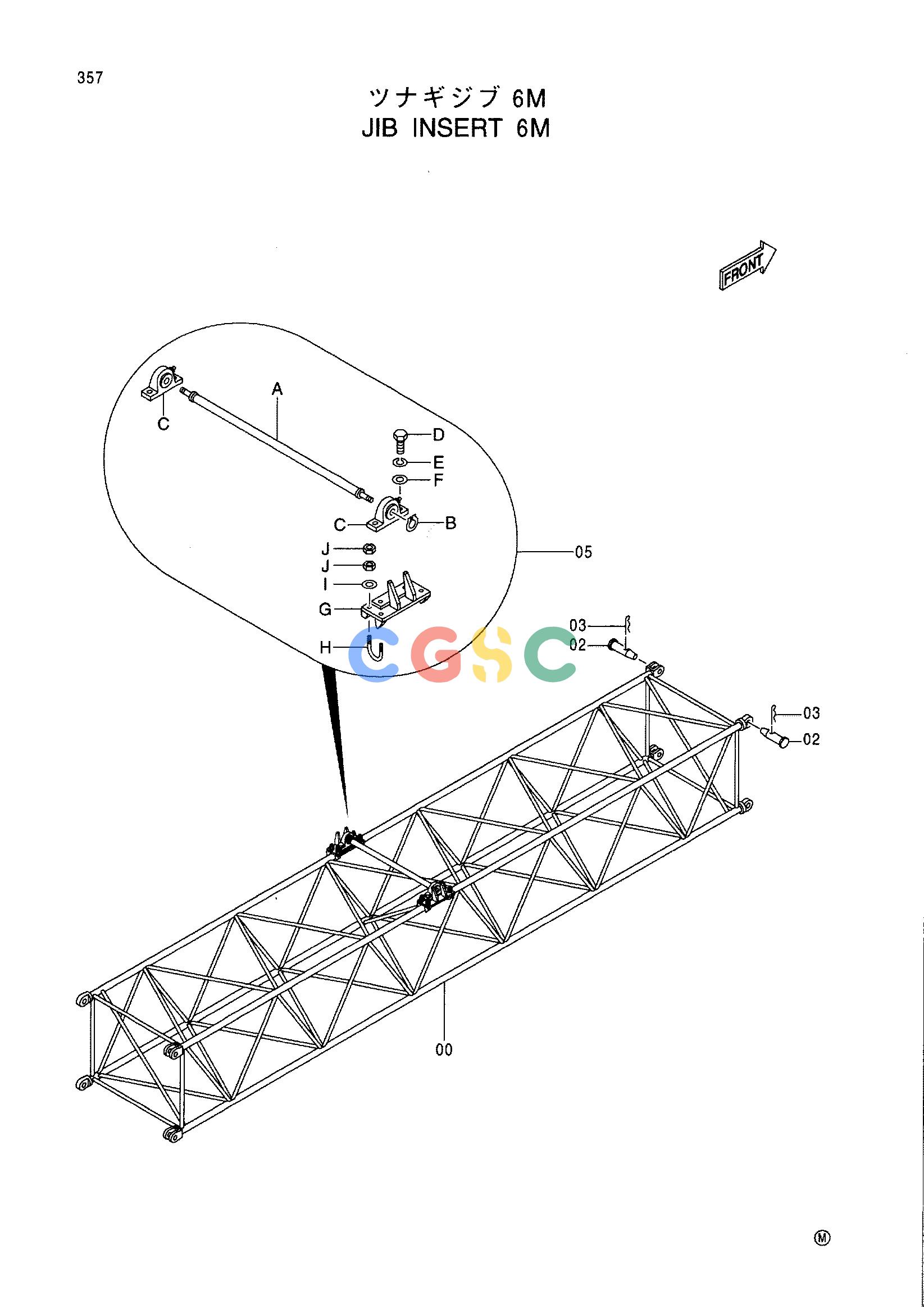

日立零件查询（CX1000）JIB INSERT 6M Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
804 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 9179064 | [1] | JIB INSERT | |
| 00. | 6018216 | [1] | JIB;BOOM-IN. | |
| 02. | 4163618 | [4] | PIN | |
| 03. | 414322 | [4] | PIN;LOCK | |
| 05. | 9179408 | [1] | ROLLER;GUIDE | |
| 05A. | 9752310 | [1] | ROLLER | |
| 05B. | 991342 | [2] | RING;RETAINING | |
| 05C. | 4420385 | [2] | BRG.;UNIT | |
| 05D. | J901440 | [4] | BOLT | |
| 05E. | A590914 | [4] | WASHER;SPRING | |
| 05F. | A590114 | [4] | WASHER;PLANE | |
| 05G. | 8075602 | [2] | BRACKET | |
| 05H. | 4159995 | [4] | BOLT;U | |
| 05I. | A590110 | [8] | WASHER;PLANE | |
| 05J. | J950010 | [16] | NUT | |
