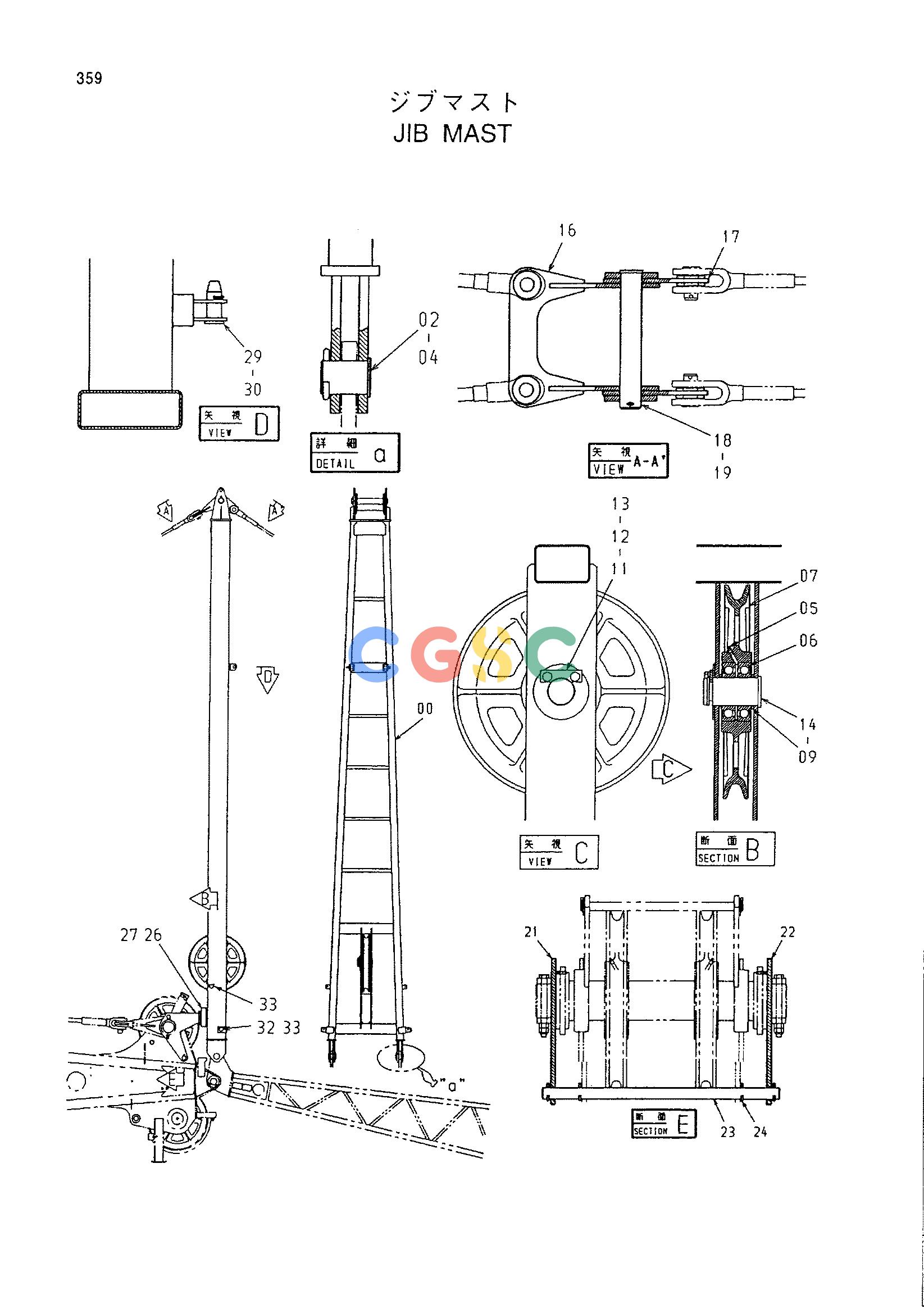

日立零件查询（CX1000）JIB MAST Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
211 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 6020310 | [1] | MAST;JIB | |
| 02. | 4032075 | [2] | PIN | |
| 04. | A761090 | [2] | PIN;SPLIT | |
| 05. | J75481 | [1] | FITTING;GREASE | |
| 06. | 4129305 | [2] | BRG.;BALL | |
| 07. | 3081859 | [1] | SHEAVE | |
| 09. | 4026536 | [2] | SPACER | |
| 11. | X4247 | [1] | PLATE;LOCK | |
| 12. | J901630 | [2] | BOLT | |
| 13. | A590916 | [2] | WASHER;SPRING | |
| 14. | 4408151 | [1] | PIN | |
| 16. | 8073847 | [1] | HANGER | |
| 17. | 9751236 | [2] | LINK | |
| 18. | 4401636 | [1] | PIN | |
| 19. | A761000 | [1] | PIN;SPLIT | |
| 21. | 8085140 | [1] | STOPPER | |
| 22. | 8085141 | [1] | STOPPER | |
| 23. | 4457216 | [1] | PIN | |
| 24. | A768063 | [4] | PIN;SPLIT | |
| 26. | 4154079 | [2] | BUFFER | |
| 27. | J021035 | [4] | BOLT;SEMS | |
| 29. | 4347121 | [2] | PIN | |
| 30. | 487041 | [2] | PIN;LOCK | |
| 32. | 4460170 | [2] | PIN | |
| 33. | 414322 | [4] | PIN;LOCK | |
