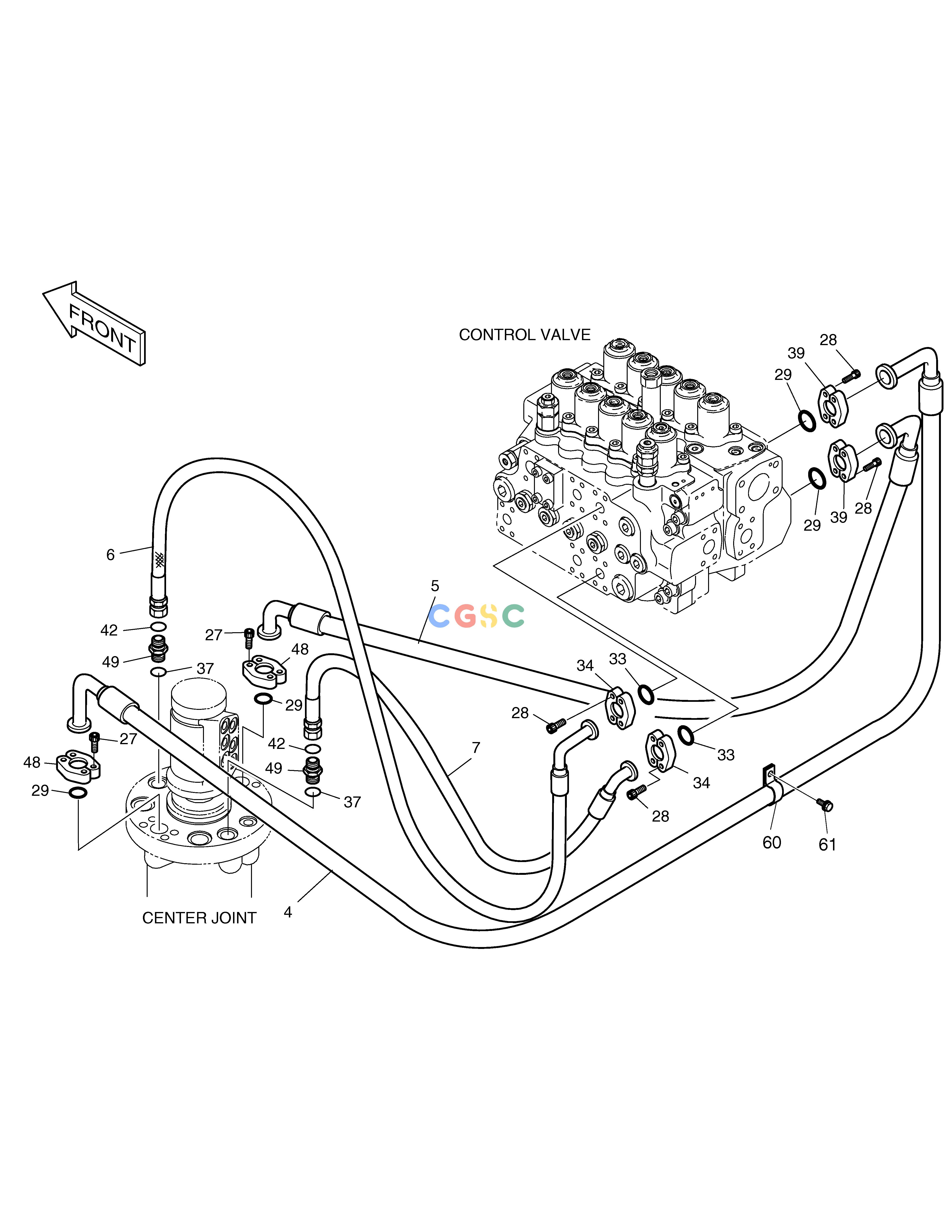

斗山零件查询MAIN PIPING(5)-TRAVEL SOLAR 185W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
348 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
400-01222
|
[-] |
MAIN PIPING
|
|
| 27. |
S2215466
|
[8] |
BOLT
|
|
| 28. |
S2212266
|
[16] |
BOLT
|
|
| 29. |
2180-1026D19
|
[4] |
O-RING
|
|
| 33. |
2180-1026D2
|
[2] |
O-RING
|
|
| 34. |
2181-9079
|
[4] |
FLANGE
|
|
| 37. |
S8000181
|
[2] |
O-RING
|
|
| 39. |
2181-9083
|
[4] |
FLANGE;SPLIT
|
|
| 4. |
2184-1124D218
|
[1] |
HOSE PF1-1800L
|
|
| 42. |
S8030121
|
[2] |
O-RING
|
|
| 48. |
2181-9084
|
[4] |
FLANGE;SPLIT
|
|
| 49. |
2181-2404A
|
[2] |
ADAPTER
|
|
| 5. |
2184-1124D172
|
[1] |
HOSE-1320L
|
|
| 6. |
2184-1250D56
|
[1] |
HOSE-1900L
|
|
| 60. |
124-00208D7
|
[1] |
CLIP
|
|
| 61. |
120-00276
|
[1] |
BOLT M8X1.25X12
|
|
| 7. |
2184-1200D60
|
[1] |
HOSE PF3/4-1900L
|
|
