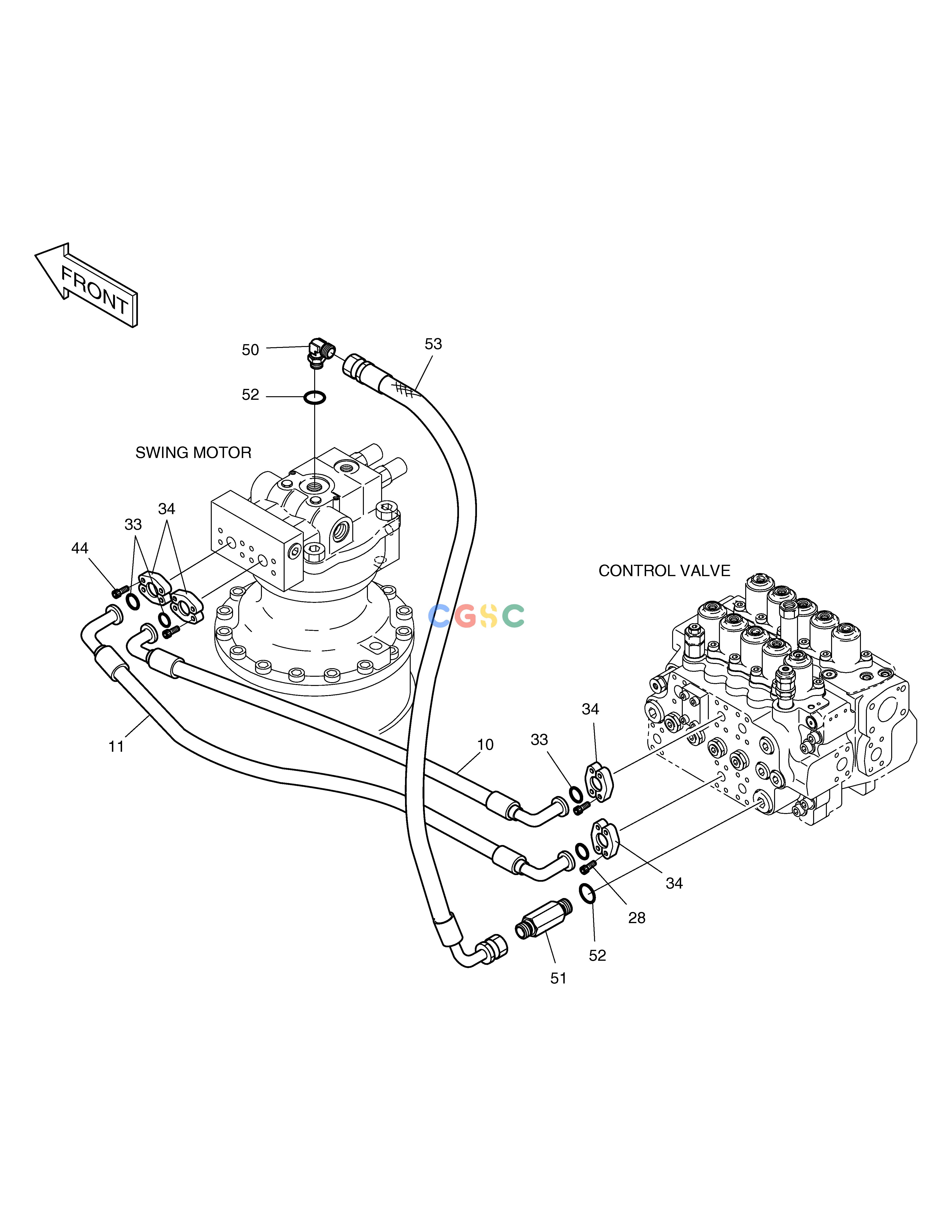

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | 400-01222 | [-] | MAIN PIPING | |
| 10. | 2184-1124D78 | [1] | HOSE PF3/4-530L | |
| 11. | 2184-1124D173 | [1] | HOSE-600L | |
| 28. | S2212266 | [8] | BOLT | |
| 33. | 2180-1026D2 | [4] | O-RING | |
| 34. | 2181-9079 | [8] | FLANGE | |
| 44. | S2213066 | [8] | BOLT;SOCKET M10X1.5X70 | |
| 50. | 2181-1702D73 | [1] | ELBOW | |
| 51. | 2181-1126D97 | [1] | ADAPTER | |
| 52. | S8000291 | [2] | O-RING | |
| 53. | 2184-1036D379 | [1] | HOSE-800L |
