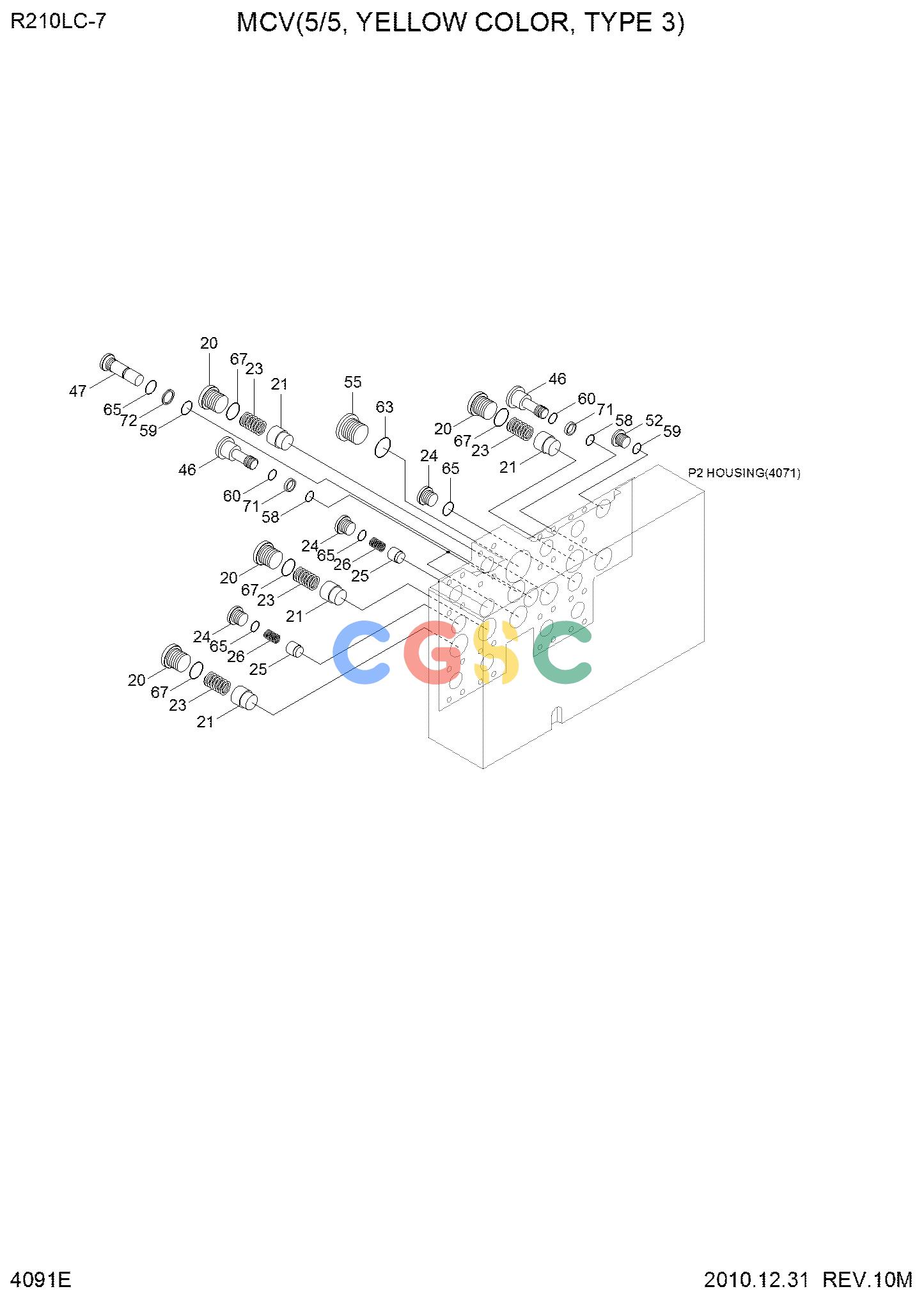

现代零件查询R210/220LC-7H MCV(5/5, YELLOW COLOR, TYPE 3)EPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
668 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
@
|
[1] |
MAIN CONTROL VALVE
|
|
| 20. |
XKCG-00020
|
[4] |
PLUG
|
|
| 21. |
XKCG-00021
|
[4] |
POPPET 1-CHECK VALVE
|
|
| 23. |
XKCG-00023
|
[4] |
SPRING 1-CHECK VALVE
|
|
| 24. |
XKCG-00024
|
[3] |
PLUG
|
|
| 25. |
XKCG-00025
|
[2] |
POPPET 2-CHECK VALVE
|
|
| 26. |
XKCG-00026
|
[2] |
SPRING 2-CHECK VALVE
|
|
| 46. |
XKCG-00046
|
[3] |
PLUG-PARALLEL
|
|
| 47. |
XKCG-00047
|
[1] |
PLUG-ORIFICE
|
|
| 52. |
XKCG-00052
|
[1] |
PLUG
|
|
| 55. |
XKCG-00055
|
[1] |
PLUG
|
|
| 58. |
XKCG-00058
|
[3] |
O-RING
|
|
| 59. |
XKCG-00059
|
[2] |
O-RING
|
|
| 60. |
XKCG-00060
|
[3] |
O-RING
|
|
| 63. |
XKCG-00063
|
[1] |
O-RING
|
|
| 65. |
XKCG-00065
|
[4] |
O-RING
|
|
| 67. |
XKCG-00067
|
[4] |
O-RING
|
|
| 67. |
XKCG-00087
|
[4] |
O-RING(M30)
|
|
| 71. |
XKCG-00071
|
[3] |
RING-BACK UP
|
|
| 72. |
XKCG-00072
|
[1] |
RING-BACK UP
|
|
