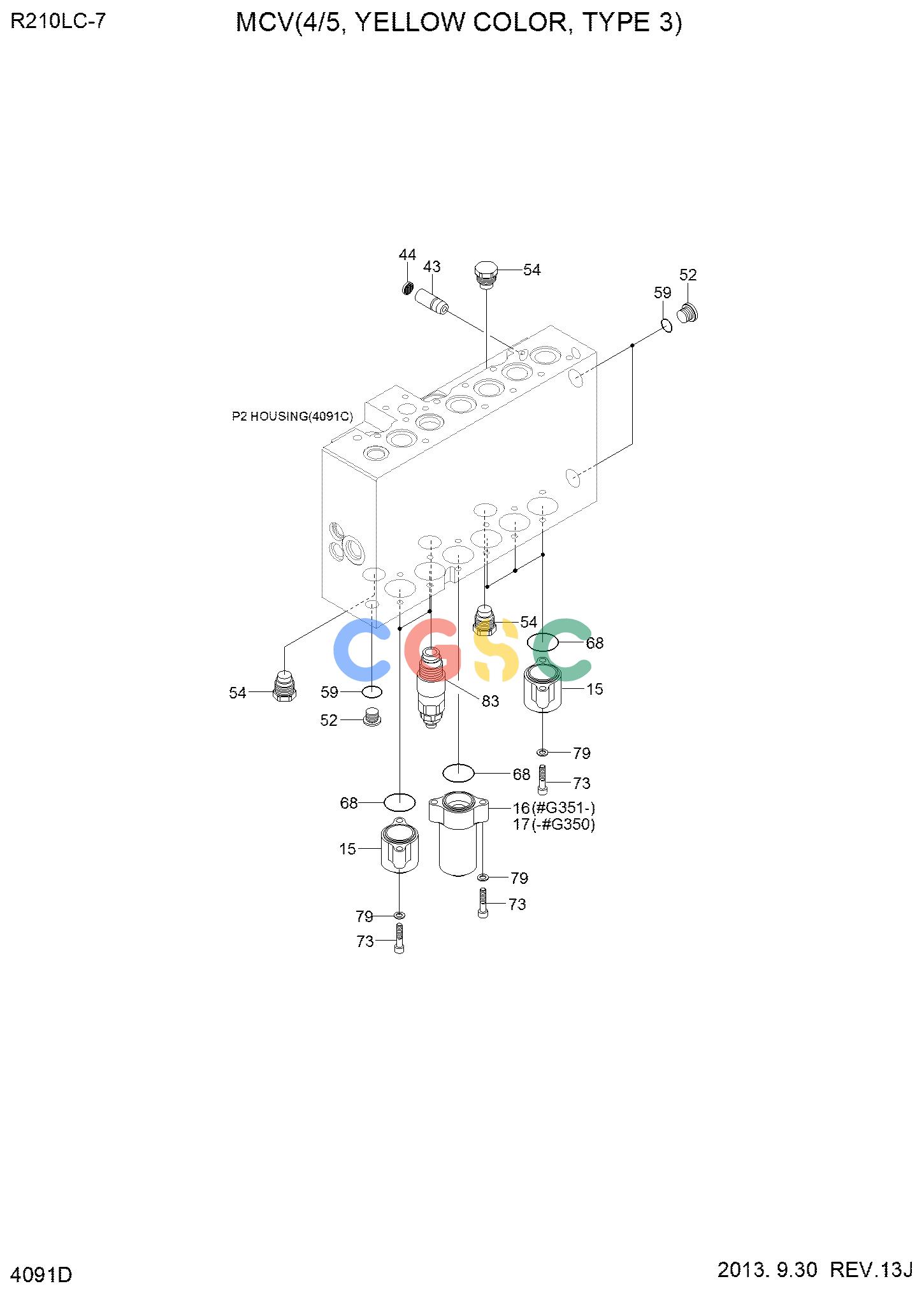

现代零件查询R210/220LC-7H MCV(4/5, YELLOW COLOR, TYPE 3)EPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
463 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
@
|
[1] |
MAIN CONTROL VALVE
|
|
| 15. |
XKCG-00015
|
[5] |
COVER A-PILOT
|
|
| 16. |
XKCG-00016
|
[1] |
COVER B1-PILOT
|
|
| 17. |
XKCG-00017
|
[1] |
COVER B2-PILOT
|
|
| 43. |
XKCG-00043
|
[1] |
ORIFICE-SIGNAL
|
|
| 44. |
XKCG-00044
|
[1] |
FILTER-COIN TYPE
|
|
| 52. |
XKCG-00052
|
[2] |
PLUG
|
|
| 54. |
XKCG-00054
|
[3] |
PLUG
|
|
| 59. |
XKCG-00059
|
[2] |
O-RING
|
|
| 68. |
XKCG-00068
|
[6] |
O-RING
|
|
| 73. |
XKCG-00073
|
[10] |
BOLT-SOCKET
|
|
| 79. |
XKCG-00079
|
[12] |
WASHER
|
|
| 83. |
XKCG-00083
|
[1] |
RELIEF VALVE-OVERLOAD
|
|
