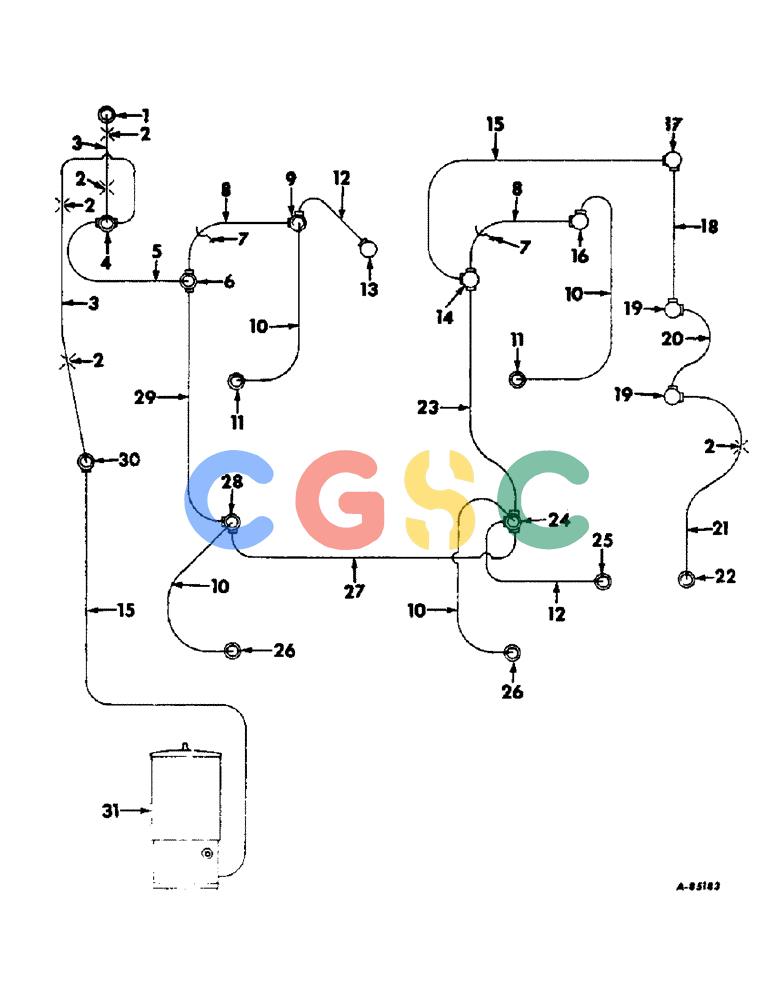

| 1. |
585856R91
|
[1] |
|
P
VALVE ASSY, top terminating, plunger stop pivot
|
| 1. |
586983R1
|
[1] |
|
P
ADAPTER, 1/8 PTF 90 deg elbow
|
| 1. |
109461
|
[1] |
LUBE NIPPLE,1/8"-27 x .66 lg
|
IH
NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg Superseded by part number: 80710
|
| 2. |
362120R1
|
[5] |
CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type
|
IH
CLIP, for 3/8 bolt
|
| . . |
18765R1
|
[4] |
BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 2
|
IH
5/16 x 1-1/4 znd hex-hd mach Superseded by part number: 180083
|
| . . |
120376
|
[4] |
NUT,5/16"-18, G5
|
IH
Superseded by part number: 9635082
|
| . . |
80681
|
[4] |
LOCK NUT,5/16"
|
NH
WASHER, LOCK, 5/16" Superseded by part number: 83990583
|
| . . |
619855R1
|
[4] |
WASHER
|
IH
11/32 x 3/4 x 16 ga C-Z Superseded by part number: 86637953
|
| . . |
21496R1
|
[4] |
WASHER
|
IH
11/32 x 3/4 x 11 ga C-Z Superseded by part number: 86624142
|
| 4. |
585865R91
|
[1] |
|
P
VALVE ASSY, knotter shaft
|
| 6. |
631347R91
|
[1] |
|
P
VALVE ASSY, knotter frame pivot
|
| 7. |
668555R1
|
[2] |
|
P
CLIP, 3/16 tube open
|
| . . |
167163
|
[2] |
SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"
|
IH
SCREW, 10-32 x 1/2 znd cr-rd-hd tap Superseded by part number: 261-6458
|
| 9. |
668599R91
|
[1] |
|
P
VALVE ASSY, Bill Hook drive shaft upper
|
| 9. |
126121
|
[1] |
LUBE NIPPLE,1/8"-27 NPT x 1.36" lg
|
IH
FITTING, 1/8-27 PTF str lub Superseded by part number: 87791027
|
| 11. |
585854R91
|
[2] |
|
P
VALVE ASSY, Bill Hook drive shaft lower
|
| 11. |
20204R1
|
[2] |
ADAPTER,90 Degree, 1/4"-1/8 NPTF
|
IH
1/4-28 male x 1/8 female 90 deg elbow Superseded by part number: 219-402
|
| 13. |
585857R91
|
[1] |
|
P
VALVE ASSY, cord holder shaft
|
| 14. |
202461C14
|
[1] |
VALVE ASSY, knotter frame pivot
|
|
| 16. |
585860R91
|
[1] |
|
P
VALVE ASSY, Bill Hook drive shaft upper
|
| 17. |
631345R91
|
[1] |
|
P
VALVE ASSY, rear packer shaft front bearing
|
| 24. |
202460C1
|
[1] |
|
P
VALVE ASSY, cord holder pinion shaft, upper
|
| 24. |
585626R1
|
[1] |
|
P
ADAPTER, 1/8 PTF 20 deg elbow
|
| 25. |
332040
|
[1] |
LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg
|
WIN
FITTING, 1/8-27 PTF 90 deg angle lub
|
| 30. |
588291R91
|
[1] |
|
P
VALVE ASSY, needle pivot
|
| 31. |
674950R91
|
[1] |
|
P
PUMP ASSY, lubrication for components see list of parts under detail of pump and timer
|
