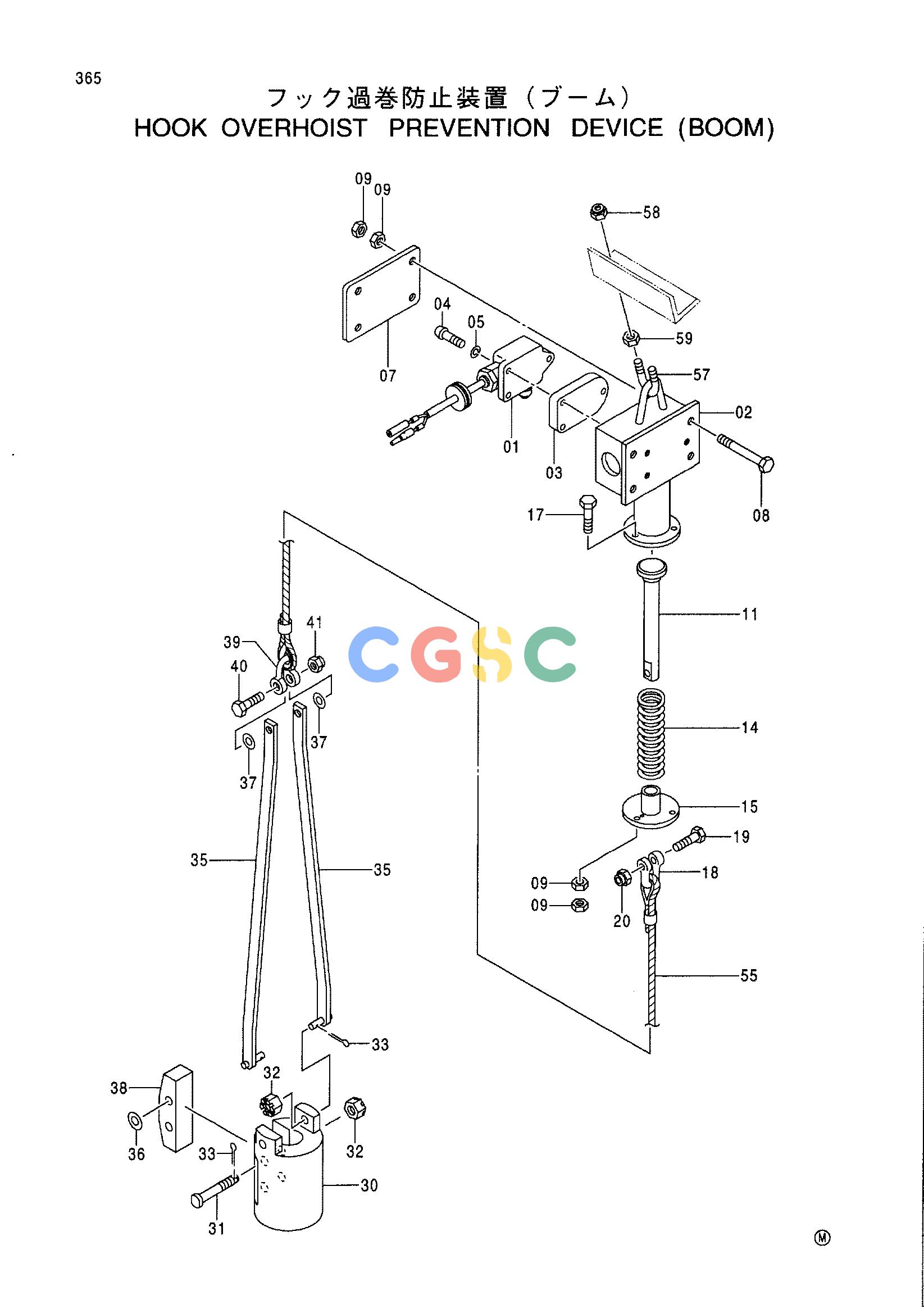

日立零件查询（CX1000）HOOK OVERHOIST PREVENTION DEVICE (BOOM) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
203 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 9173913 | [1] | HOOK LIMITER | |
| 01-2. | 9170951 | [1] | SWITCH ASS'Y | |
| 01. | 4250376 | [1] | SWITCH;LIMIT | |
| 02. | 8072520 | [1] | BOX | |
| 03. | 4205194 | [1] | PLATE | |
| 04. | M430640 | [3] | SCREW | |
| 05. | A590906 | [3] | WASHER;SPRING | |
| 07. | 4336527 | [1] | COVER | |
| 08. | J900890 | [4] | BOLT | |
| 09. | M500807 | [14] | NUT | |
| 11. | 4323210 | [1] | STRIKER | |
| 14. | 4240874 | [1] | SPRING | |
| 15. | 9750389 | [1] | COVER | |
| 17. | J900830 | [3] | BOLT | |
| 18. | 4048478 | [1] | SHACKLE | |
| 19. | J901045 | [1] | BOLT | |
| 20. | M660010 | [1] | NUT;U | |
| 30-4. | 9165582 | [1] | WEIGHT ASS'Y | |
| 30. | 2027656 | [1] | WEIGHT | |
| 31. | 4393660 | [2] | PIN | |
| 32. | M531012 | [4] | NUT;CASTLE | |
| 33. | A762025 | [4] | PIN;SPLIT | |
| 35. | 8070511 | [2] | BAR | |
| 36. | A590110 | [2] | WASHER;PLANE | |
| 37. | A590112 | [2] | WASHER;PLANE | |
| 38. | 4240369 | [1] | BLOCK | |
| 39. | 4048479 | [1] | SHACKLE | |
| 40. | J901250 | [1] | BOLT | |
| 41. | M660012 | [1] | NUT;U | |
| 55. | 9743245 | [1] | ROPE;PENDANT | |
| 57. | 4157548 | [1] | BOLT;U | |
| 58. | M660010 | [2] | NUT;U | |
| 59. | J950010 | [2] | NUT | |
