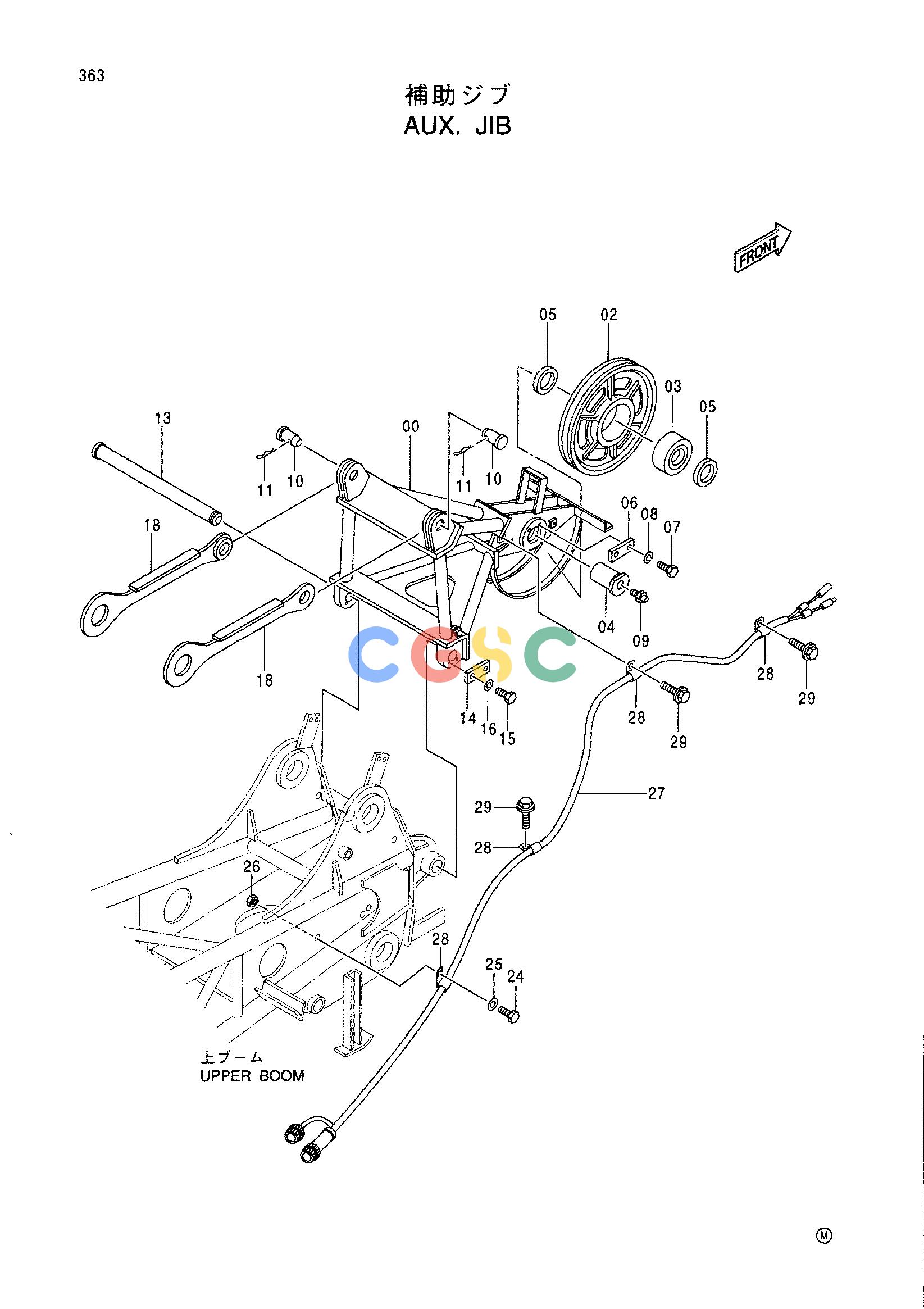

日立零件查询（CX1000）AUX.JIB Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
457 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 5007907 | [1] | JIB | |
| 02. | 3080923 | [1] | SHEAVE | |
| 03. | 4117993 | [1] | BRG.;ROL. | |
| 04. | 4344581 | [1] | PIN | |
| 05. | 4163340 | [2] | SPACER | |
| 06. | X4248 | [1] | PLATE;LOCK | |
| 07. | J932035 | [2] | BOLT | |
| 08. | A590920 | [2] | WASHER;SPRING | |
| 09. | J75481 | [1] | FITTING;GREASE | |
| 10. | 4162845 | [2] | PIN | |
| 11. | 3006890 | [2] | PIN;LOCK | |
| 13. | 4344629 | [1] | AXLE | |
| 14. | X4247 | [1] | PLATE;LOCK | |
| 15. | J901635 | [2] | BOLT | |
| 16. | A590916 | [2] | WASHER;SPRING | |
| 18. | 8085144 | [2] | LINK | |
| 24. | J901035 | [1] | BOLT | |
| 25. | A590110 | [1] | WASHER;PLANE | |
| 26. | J950010 | [2] | NUT | |
| 27. | 4389291 | [1] | HARNESS;WIRE | |
| 28. | 4190271 | [4] | CLIP | |
| 29. | J011020 | [3] | BOLT;SEMS | |
