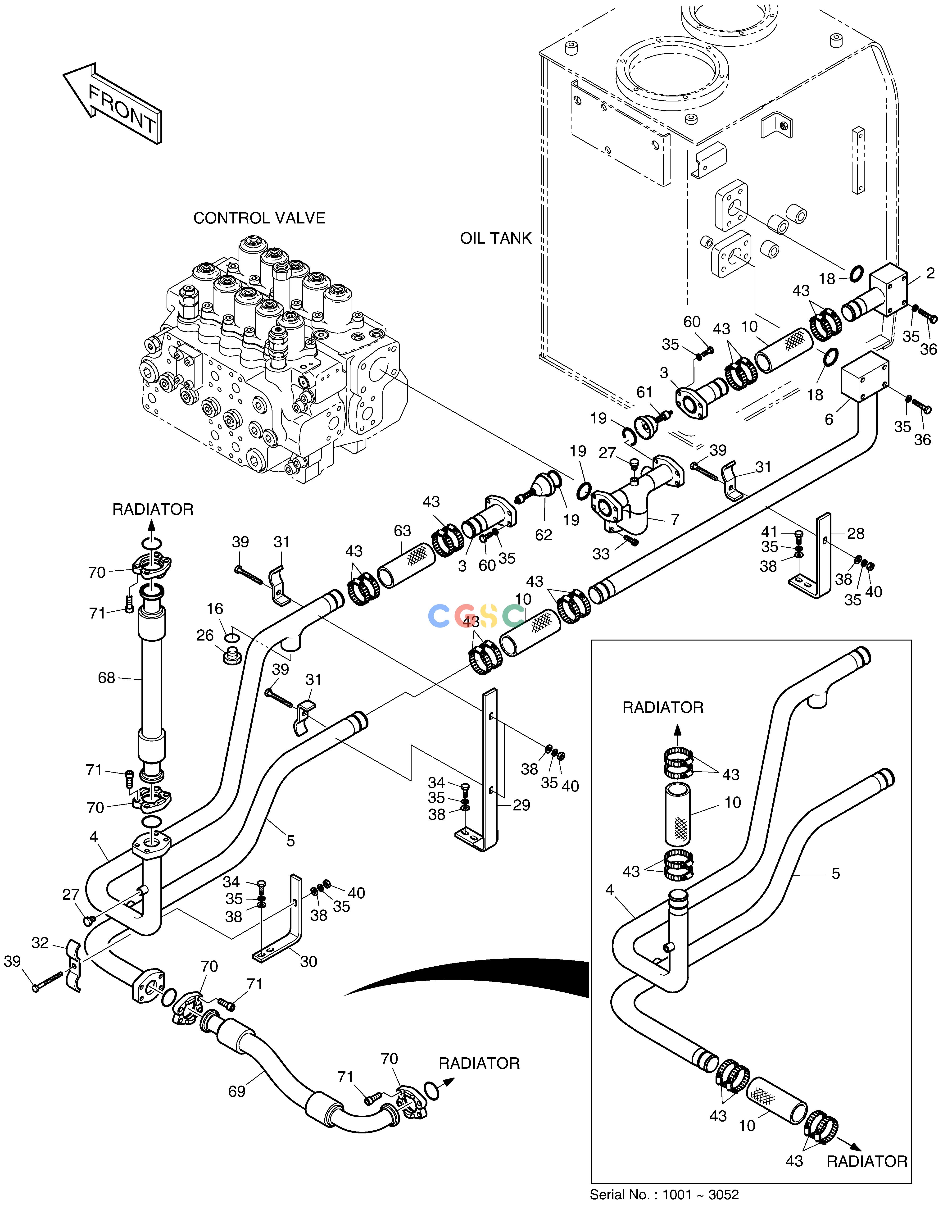

斗山零件查询OIL COOLER PIPING(1) SOLAR 185W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
465 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
400-01223B
|
[-] |
OIL COOLER PIPING
|
|
| -. |
420212-12021
|
[-] |
|
|
| 10. |
2185-1776D2
|
[4] |
HOSE 200L
|
|
| 10. |
2185-1776D2
|
[2] |
HOSE 200L
|
|
| 16. |
S8000291
|
[1] |
O-RING
|
|
| 18. |
2180-1026D28
|
[2] |
O-RING
|
|
| 19. |
2180-1026D27
|
[3] |
O-RING
|
|
| 2. |
2140-1591
|
[1] |
PIPE
|
|
| 26. |
2181-1950D9
|
[1] |
PLUG
|
|
| 27. |
2181-2047
|
[2] |
PLUG
|
|
| 28. |
2197-2023
|
[1] |
BRACKET
|
|
| 29. |
2197-1458A
|
[1] |
BRACKET
|
|
| 3. |
2140-1185A
|
[2] |
PIPE
|
|
| 30. |
2197-2194
|
[1] |
BRACKET
|
|
| 31. |
2124-1224D2
|
[3] |
CLAMP;PIPE
|
|
| 32. |
2124-1340D6
|
[1] |
CLAMP;PIPE
|
|
| 33. |
S2215366
|
[4] |
BOLT
|
|
| 34. |
S0560553
|
[4] |
BOLT M12X1.75X40
|
|
| 35. |
S5102703
|
[26] |
WASHER
|
|
| 36. |
S0561253
|
[8] |
BOLT M12X1.75X75
|
|
| 38. |
S5010713
|
[8] |
WASHER;PLAIN
|
|
| 39. |
S0561353
|
[4] |
BOLT M12X1.75X80
|
|
| 4. |
2140-1622
|
[1] |
PIPE
|
|
| 4. |
420207-03196
|
[1] |
|
|
| 40. |
S4012733
|
[3] |
NUT
|
|
| 41. |
S0515253
|
[2] |
. BOLT
|
|
| 43. |
S8470075
|
[20] |
CLAMP
|
|
| 43. |
S8470075
|
[12] |
CLAMP
|
|
| 5. |
2140-1623
|
[1] |
PIPE
|
|
| 5. |
420207-03197
|
[1] |
|
|
| 6. |
2140-1618
|
[1] |
PIPE
|
|
| 60. |
S0560953
|
[8] |
BOLT M12X1.75X60
|
|
| 61. |
420-00350
|
[1] |
VALVE;BY-PASS
|
410128-00057
|
| 61. |
410128-00057
|
[1] |
|
|
| 62. |
420-00351
|
[1] |
VALVE;BY-PASS
|
410128-00059
|
| 62. |
410128-00059
|
[1] |
|
|
| 63. |
2185-1776D3
|
[1] |
HOSE
|
|
| 68. |
DS2038511
|
[1] |
|
|
| 69. |
DS20401364
|
[1] |
|
|
| 7. |
2140-1586
|
[1] |
PIPE
|
|
| 70. |
4215-1003D5
|
[8] |
FLANGE
|
|
| 71. |
S2215466
|
[16] |
BOLT
|
|
