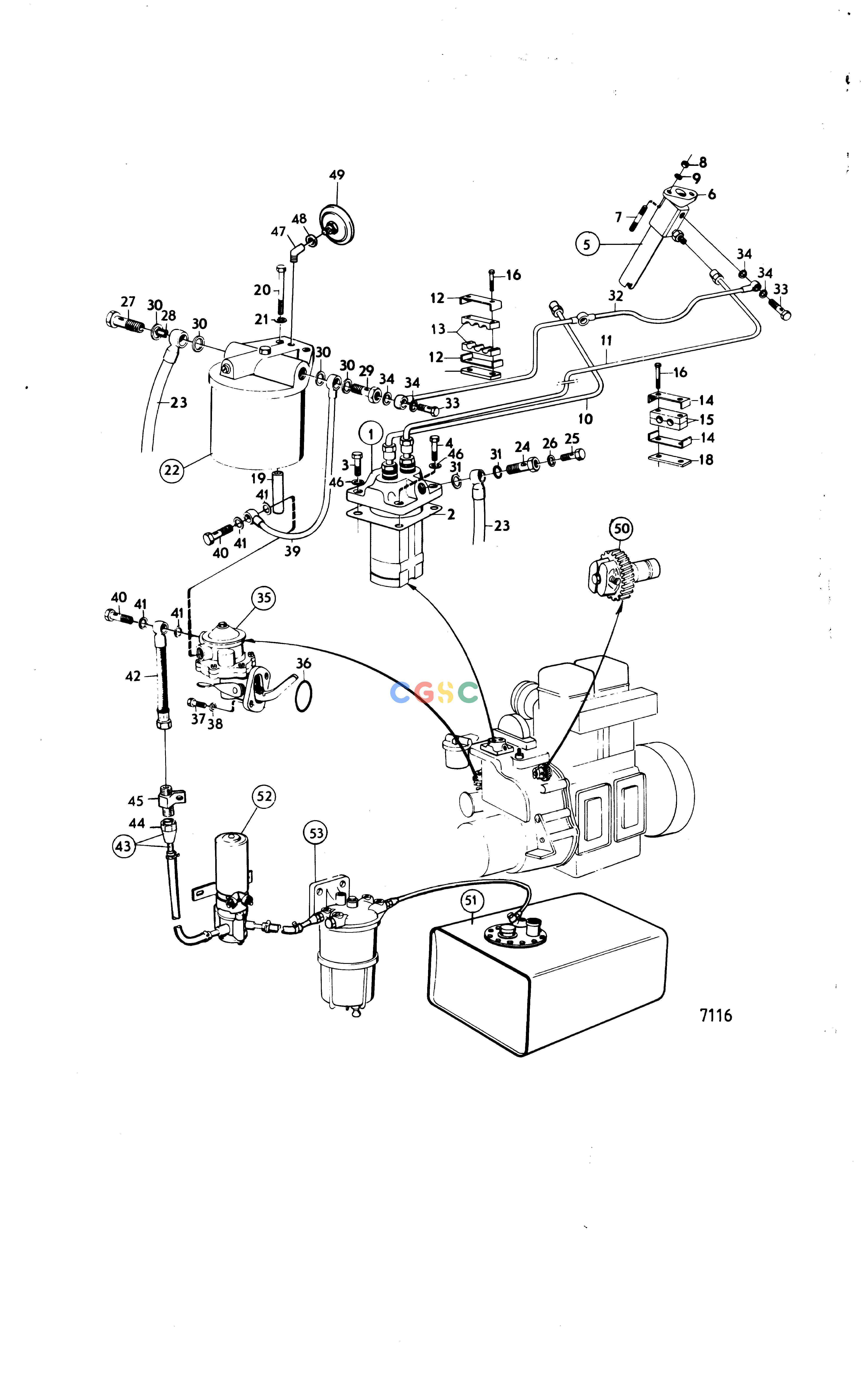

沃尔沃零件查询MD1B; MD2B; AQD2B; MD3BFuel SystemFuel System: BEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
906 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
Replaced by 833741., MO-17506
|
| 1. |
833741
|
[1] |
Injection pump
|
MO 17507-54378
|
| 1. |
840392
|
[1] |
Injection pump
|
MO 54379-
|
| 2. |
897392
|
[1] |
Gasket
|
|
| 3. |
955296
|
[3] |
Hexagon screw
|
|
| 5. |
833191
|
[2] |
Injector
|
|
| 6. |
803334
|
[2] |
Attaching plate
|
|
| 7. |
952991
|
[4] |
Stud
|
|
| 8. |
|
|
|
|
| 10. |
833199
|
[1] |
Delivery pipe
|
|
| 11. |
833198
|
[1] |
Delivery pipe
|
|
| 12. |
414346
|
[2] |
Attaching clamp
|
|
| 13. |
414347
|
[2] |
Attaching clamp
|
|
| 14. |
414344
|
[2] |
Attaching clamp
|
|
| 15. |
414345
|
[2] |
Attaching clamp
|
|
| 16. |
955247
|
[4] |
Hexagon screw
|
|
| 17. |
414735
|
[1] |
Nut plate
|
|
| 18. |
414736
|
[1] |
Nut plate
|
|
| 19. |
803657
|
[2] |
Spacer sleeve
|
|
| 20. |
955324
|
[2] |
Hexagon screw
|
|
| 21. |
942336
|
[2] |
Spring washer
|
|
| 22. |
803323
|
[1] |
Fuel filter
|
Replaced by 840532.
|
| 22. |
840532
|
[1] |
Fuel filter
|
|
| 23. |
833365
|
[1] |
Fuel hose
|
|
| 24. |
803658
|
[1] |
Hollow screw
|
|
| 25. |
240664
|
[1] |
Bleeder screw
|
(233017)
|
| 26. |
11991
|
[1] |
Gasket
|
|
| 27. |
807058
|
[1] |
Hollow screw
|
|
| 28. |
807059
|
[1] |
Nozzle
|
|
| 29. |
16496
|
[1] |
Hollow screw
|
|
| 30. |
957178
|
[4] |
Gasket
|
|
| 31. |
11994
|
[2] |
Gasket
|
|
| 32. |
897411
|
[1] |
Leak-off pipe
|
|
| 33. |
74033
|
[3] |
Hollow screw
|
|
| 34. |
957171
|
[6] |
Gasket
|
|
| 35. |
833323
|
[1] |
Fuel pump
|
|
| 36. |
942353
|
[1] |
O-ring
|
|
| 37. |
942001
|
[2] |
Hex. socket screw
|
|
| 38. |
941906
|
[2] |
Spring washer
|
|
| 39. |
897412
|
[1] |
Tube
|
|
| 40. |
25167
|
[2] |
Hollow screw
|
|
| 41. |
957178
|
[4] |
Gasket
|
|
| 42. |
840263
|
[1] |
Fuel hose
|
(807074) repl by 840263
|
| 43. |
829744
|
[1] |
Hose connection
|
|
| 44. |
807061
|
[1] |
Cap nut
|
|
| 45. |
833922
|
[1] |
Joint nipple
|
|
| 46. |
11992
|
[4] |
Gasket
|
|
| 47. |
829731
|
[1] |
Elbow nipple
|
For spec 867208, -351, -374, -380, MO 45483-
|
| 48. |
957178
|
[1] |
Gasket
|
For spec 867208, -351, -374, -380, MO 45483-
|
| 49. |
466398
|
[1] |
Pressure equalizer
|
For spec 867208, -351, -374, -380, MO 45483-
|
| 50. |
7742090_033
|
|
governor and installation comps
|
|
| 50. |
|
|
|
|
| 53. |
7742090_032
|
|
water separator
|
|
