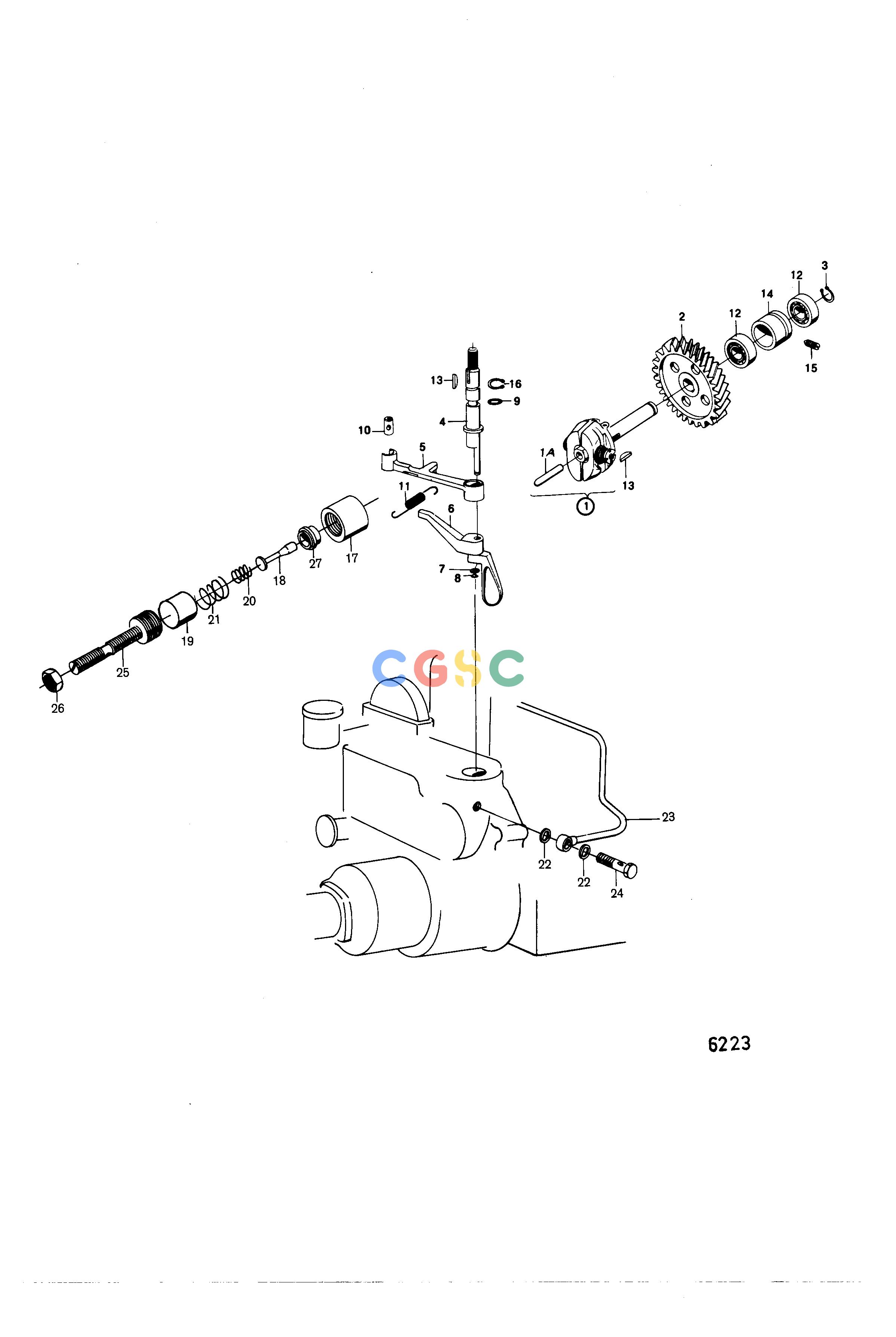

沃尔沃零件查询MD1B; MD2B; AQD2B; MD3BFuel SystemGovernor and Installation ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
598 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
833465
|
[1] |
Governor
|
|
| 1A. |
833678
|
[1] |
Pin
|
|
| 2. |
807436
|
[1] |
Gear
|
|
| 3. |
914449
|
[1] |
Snap ring
|
|
| 4. |
833042
|
[1] |
Shaft
|
|
| 5. |
833046
|
[1] |
Lever
|
|
| 6. |
833039
|
[1] |
Lever
|
|
| 7. |
955892
|
[1] |
Washer
|
|
| 8. |
951667
|
[1] |
E-circlip
|
|
| 9. |
925053
|
[1] |
O-ring
|
|
| 10. |
803383
|
[1] |
Cube
|
|
| 11. |
833106
|
[1] |
Tension spring
|
|
| 12. |
11009
|
[2] |
Ball bearing
|
|
| 13. |
910115
|
[1] |
Woodruff key
|
|
| 14. |
833169
|
[1] |
Spacer sleeve
|
|
| 15. |
807054
|
[1] |
Set screw
|
See group 2A
|
| 16. |
914446
|
[1] |
Snap ring
|
|
| 16. |
|
|
|
|
| 17. |
833257
|
[1] |
Sleeve
|
|
| 18. |
833277
|
[1] |
Pin
|
|
| 19. |
833259
|
[1] |
Piston
|
|
| 20. |
833261
|
[1] |
Spring
|
|
| 21. |
833262
|
[1] |
Spring
|
|
| 22. |
907132
|
[4] |
Gasket
|
|
| 23. |
833126
|
[1] |
Tube
|
See group 2A
|
| 24. |
48634
|
[2] |
Hollow screw
|
|
| 25. |
833258
|
[1] |
Adjusting screw
|
|
| 26. |
17612
|
[1] |
Nut
|
|
| 27. |
833269
|
[1] |
Washer
|
|
