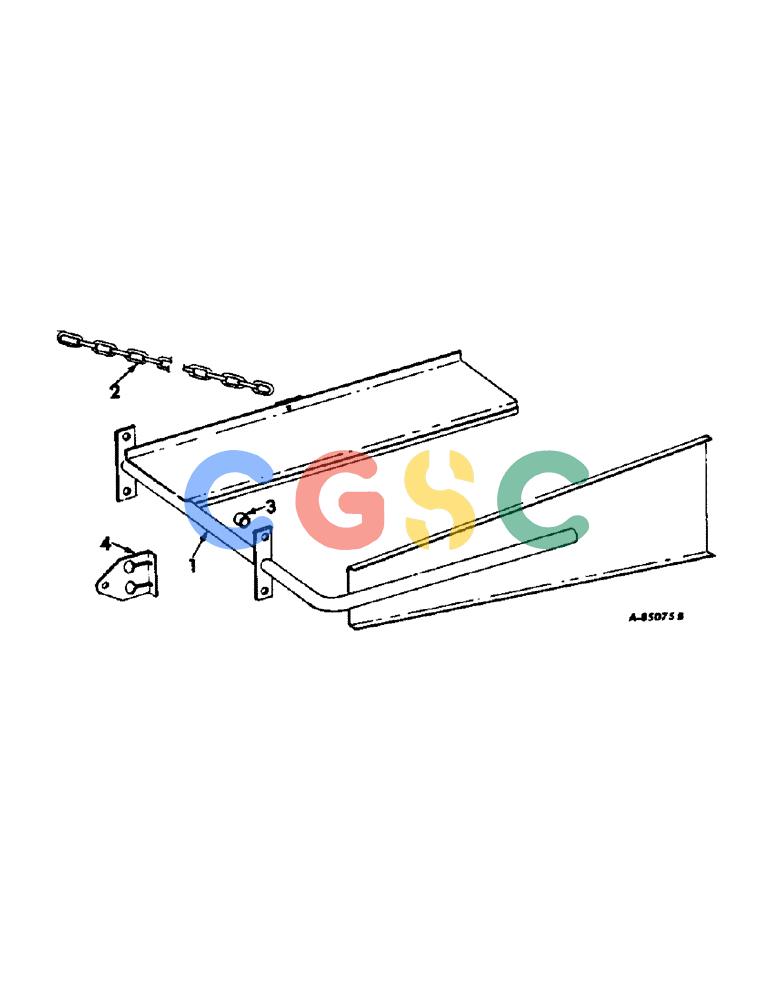

凯斯零件查询(440) - INTERNATIONAL HARVESTER RECTANGULAR BALER (NORTH AMERICA) (1/70-12/78) (E-81) - BALE TURNER ATTACHMENT, WHEN ORDERED Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
412 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
674032R1
|
[1] |
VALVE BLOCK
|
IH
TURNER ASSY, bale
|
| . . |
18421R1
|
[1] |
CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2
|
IH
BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd Superseded by part number: 412-716
|
| . . |
18696R1
|
[1] |
CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/2", Gr 2
|
IH
BOLT, 7/16 x 1-1/2 C-Z sq-nk crg Superseded by part number: 88586
|
| . . |
473213R1
|
[2] |
LOCK NUT,7/16"-14, GB
|
IH
NUT, 7/16-14 C-Z hex. lock Superseded by part number: 280980
|
| . . |
21763R1
|
[1] |
WASHER
|
IH
15/32 x 3/4 x 11 ga znp Superseded by part number: 495-81154
|
| . . |
21331R1
|
[2] |
WASHER
|
IH
15/32 x 1-1/4 x 16 ga C-Z Superseded by part number: 106265
|
| 2. |
495526R1
|
[1] |
CHAIN (AG)
|
IH
CHAIN, bale chamber ext hold up
|
| . . |
668986R1
|
[1] |
CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4", Gr 5
|
IH
BOLT, 5/16-18 x 1-1/4 C-Z sq-nk crg type 2 Superseded by part number: 280827
|
| . . |
120376
|
[2] |
NUT,5/16"-18, G5
|
IH
Superseded by part number: 9635082
|
| . . |
668569R1
|
[1] |
WASHER
|
IH
11/32 x 1-1/2 x 11 ga C-Z Superseded by part number: 87020812
|
| . . |
619855R1
|
[2] |
WASHER
|
IH
11/32 x 3/4 x 16 ga C-Z Superseded by part number: 86637953
|
| . . |
607891R1
|
[2] |
WASHER
|
IH
15/32 x 1 x 16 ga C-Z Superseded by part number: 495-81158
|
| 3. |
604433R1
|
[1] |
SPACER,1/2" Pipe x 13/16"
|
IH
pipe
|
| 4. |
203187C1
|
[1] |
HOLDER
|
IH
chain, replaces 754484R2
|
| . . |
80681
|
[1] |
LOCK NUT,5/16"
|
NH
WASHER, LOCK, 5/16" Superseded by part number: 83990583
|
